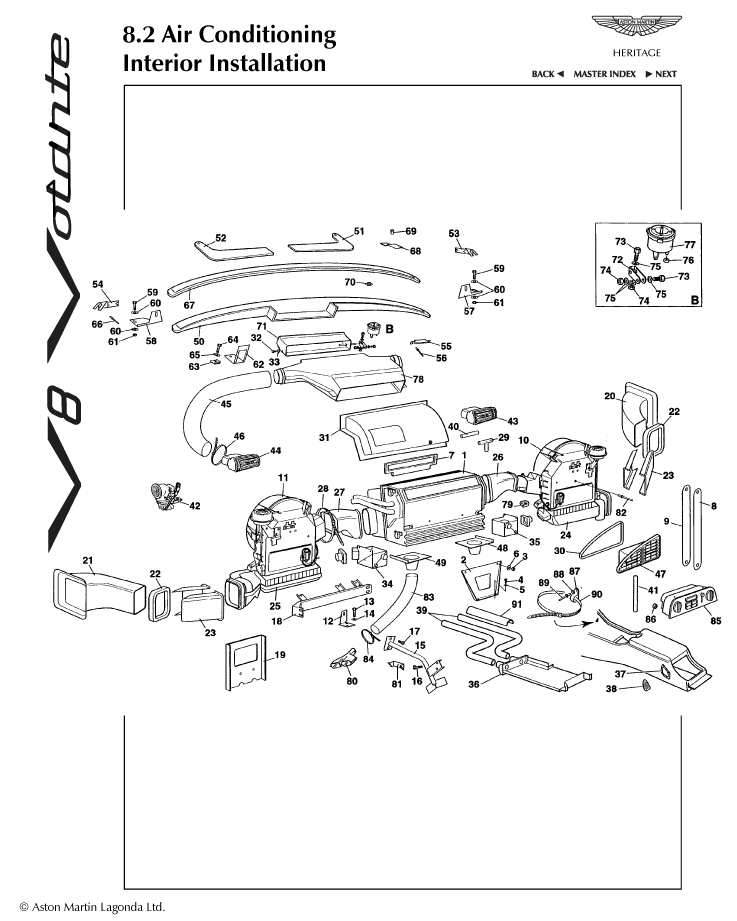

8.2 - Interior Installation Parts
Tee piece, 4-4-4, plenum to vacuum valve
New / New
Diagram No:
29
Quantity:
1
Available to order (2-3 days delay)
Adhesive, Sikaflex 255 FC
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Foam strip, 15mm x 10mm
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Foam strip, 10mm x 5mm
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
Screw, flg, M5x12, vacuum reservoir attach
New / New
Diagram No:
13
Quantity:
2
Available to order (2-3 days delay)
Screw, flg, M6 x 16, lower fixing rear
New / New
Diagram No:
17
Quantity:
4
Available to order (2-3 days delay)
Nut, flg, nyloc, M8, hinge bracket to drain channel
New / New
Diagram No:
3
Quantity:
2
Available to order (2-3 days delay)
Foam strip, 10mm x 10mm
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Outlet flexy duct
New / New
Diagram No:
83
Quantity:
1
Available to order (2-3 days delay)
Clip, starlock, 3.5mm dia
New / New
Diagram No:
76
Quantity:
3
Available to order (2-3 days delay)
Nut, hex, flg, M4
New / New
Diagram No:
70
Quantity:
13
Available to order (2-3 days delay)
Ducting, flexible
New / New
Diagram No:
45
Quantity:
2
Available to order (2-3 days delay)
Nut, nyloc, M5, catch mechanism to drain channel
New / New
Diagram No:
61
Quantity:
4
Available to order (2-3 days delay)
Screw, M5 x 10
New / New
Diagram No:
59
Quantity:
2
Available to order (2-3 days delay)
Adhesive for seal
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
'P' clip, Nylon, 5/8" ID
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Sealer, black, adaptor plate to tunnel
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Nut, spire, No.10 UNF
New / New
Diagram No:
63
Quantity:
2
Available to order (2-3 days delay)
Setscrew, M6 x 20
New / New
Diagram No:
4
Quantity:
2
Available to order (2-3 days delay)
Tubing, rubber, black, 1/8" ID
New / New
Diagram No:
40
Quantity:
1
Available to order (2-3 days delay)
Washer, shakeproof, M5, Cruise control unit to 'A' Post panel
New / New
Diagram No:
60
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, M5, Cruise control unit to 'A' Post panel
New
Diagram No:
14
Quantity:
2
In stock
Washer, plain, M3, Recepticle to carrier
New / New
Diagram No:
88
Quantity:
1
Available to order (2-3 days delay)
Duct diffuser, centre console rear - LH
New / New
Diagram No:
38
Quantity:
1
Available to order (2-3 days delay)
Duct diffuser, centre console rear - RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Duct, filter assembly, A post LH, to blower
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Support bracket, lower, demist duct, RH
New / New
Diagram No:
57
Quantity:
2
Available to order (2-3 days delay)
Mounting bracket assembly, fuse block
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Gasket, air intake
New / New
Diagram No:
22
Quantity:
2
Available to order (2-3 days delay)
Duct, filter assembly, A post RH, to blower
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket end support, demist duct, RH
New / New
Diagram No:
53
Quantity:
1
Available to order (2-3 days delay)
Duct, A/C to blower, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket end support, demist duct, LH
New / New
Diagram No:
54
Quantity:
1
Available to order (2-3 days delay)
Retention strap assembly, blower and duct, RH
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Duct A post
New / New
Diagram No:
23
Quantity:
4
Available to order (2-3 days delay)
Duct, filter assembly, A post RH, to blower
New / New
Diagram No:
24
Quantity:
1
Available to order (2-3 days delay)
Bracket, blower mounting
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Retention strap assembly, blower and duct, LH
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Duct air intake, LH
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Outlet duct, footwell, LH
New / New
Diagram No:
49
Quantity:
1
Available to order (2-3 days delay)
Duct, A/C to blower, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Support tube assembly, blower/relay
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Outlet duct, footwell, RH
New / New
Diagram No:
48
Quantity:
1
Available to order (2-3 days delay)
Support bracket, lower, demist duct, LH
New / New
Diagram No:
58
Quantity:
2
Available to order (2-3 days delay)
In-car sensor
New / New
Diagram No:
42
Quantity:
1
Available to order (2-3 days delay)
A/C blower motor, RH
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Bracket, blower mounting
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Support tube assembly, blower/relay
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Duct, A/C to blower, RH
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
Duct air intake, RH
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
