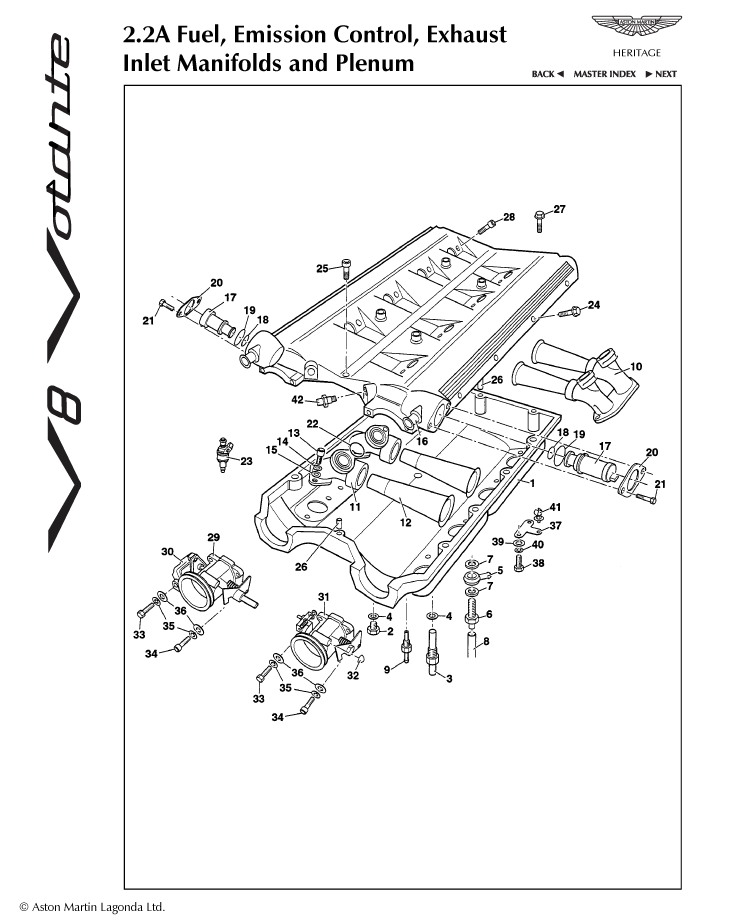

2.2a - Inlet Manifolds and Plenum Parts
Inlet manifold
New / New
Diagram No:
11
Quantity:
4
Available to order (2-3 days delay)
Throttle body, LH
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Nipple, 1/4" BSP, Plenum base to purge line
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
'O' ring, small
New / New
Diagram No:
18
Quantity:
2
Available to order (2-3 days delay)
O ring, plenum top to manifolds
New / New
Diagram No:
22
Quantity:
8
Available to order (2-3 days delay)
Trumpet, inlet manifold
New / New
Diagram No:
12
Quantity:
4
Available to order (2-3 days delay)
LOWER FUEL INJECTOR O-RING
New
Available to order (2-3 days delay)
Air inlet manifold assy
New / New
Diagram No:
10
Quantity:
4
Available to order (2-3 days delay)
Injector
New / New
Diagram No:
23
Quantity:
8
Available to order (2-3 days delay)
Valve, idle speed control
New / New
Diagram No:
17
Quantity:
2
Available to order (2-3 days delay)
Throttle body, RH
New / New
Diagram No:
29
Quantity:
1
Available to order (2-3 days delay)
Bracket, cable clip
New / New
Diagram No:
37
Quantity:
2
Available to order (2-3 days delay)
Banjo bolt assembly
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Screw, air valve attach
New / New
Diagram No:
21
Quantity:
4
Available to order (2-3 days delay)
Bolt, plenum chamber top
New / New
Diagram No:
24
Quantity:
8
Available to order (2-3 days delay)
O ring, plenum base to cylinder heads
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Choke union assembly
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Throttle potentiometer, replacement kit
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Throttle body assembly, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bleed stub, air valve
New / New
Diagram No:
16
Quantity:
2
Available to order (2-3 days delay)
Tamperproof cap, idle bypass
New / New
Diagram No:
32
Quantity:
2
Available to order (2-3 days delay)
Clamp ring
New / New
Diagram No:
20
Quantity:
2
Available to order (2-3 days delay)
Bolt, plenum chamber top
New / New
Diagram No:
27
Quantity:
2
Available to order (2-3 days delay)
'O' ring, large
New / New
Diagram No:
19
Quantity:
2
Available to order (2-3 days delay)
Sensor, air temperature
New / New
Diagram No:
42
Quantity:
2
Available to order (2-3 days delay)
Cable clip
New / New
Diagram No:
41
Quantity:
2
Available to order (2-3 days delay)
Clip, cable to cable
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Capscrew, 1/4" UNC x 1" plenum and manif to engine
New / New
Diagram No:
13
Quantity:
16
Available to order (2-3 days delay)
Loctite 648, trumpets to inlet manifolds
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Capscrew, M8 x 16, socket head
New / New
Diagram No:
28
Quantity:
8
Available to order (2-3 days delay)
Loctite 270 studlock, red
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Bolt, M6 x 25, selector housing to adaptor plate
New / New
Diagram No:
33
Quantity:
4
Available to order (2-3 days delay)
Capscrew, M6 x 25 throttle bodies to plenum
New / New
Diagram No:
34
Quantity:
4
Available to order (2-3 days delay)
Tube, polyvon, 1/8" dia, vac valve to carbon can 'Y'
New / New
Diagram No:
8
Quantity:
A/R
Available to order (2-3 days delay)
Capscrew M6 x 35, plenum chamber top
New / New
Diagram No:
25
Quantity:
2
Available to order (2-3 days delay)
Seal strip, 6 mm dia, plenum chamber top to base
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Screw, M5 x 12, Supt bracket attach to pedal bracket
New / New
Diagram No:
38
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, M5, Cruise control unit to 'A' Post panel
New / New
Diagram No:
39
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, M6, interlock cable to steering column
New / New
Diagram No:
15
Quantity:
16
Available to order (2-3 days delay)
Washer, spring, M6, sensor attach to vertical link
New / New
Diagram No:
35
Quantity:
8
Available to order (2-3 days delay)
Washer, spring, M5 boot latch, plate & sw bracket to chassis
New / New
Diagram No:
40
Quantity:
4
Available to order (2-3 days delay)
Plenum chamber top
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Copper washer, Banjo to slave cylinder
New / New
Diagram No:
4
Quantity:
2
Available to order (2-3 days delay)
Loctite 5699, ultra grey
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Banjo, vacuum tank take off
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Dowel, plenum chamber top location
New / New
Diagram No:
26
Quantity:
4
Available to order (2-3 days delay)
Sealing washer, banjo
New / New
Diagram No:
7
Quantity:
2
Available to order (2-3 days delay)
Washer, spring, 1/4" Baffle plate to valley plate
New / New
Diagram No:
14
Quantity:
16
Available to order (2-3 days delay)
Plug, 1/8" BSP, flanged, oilway blanking
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
