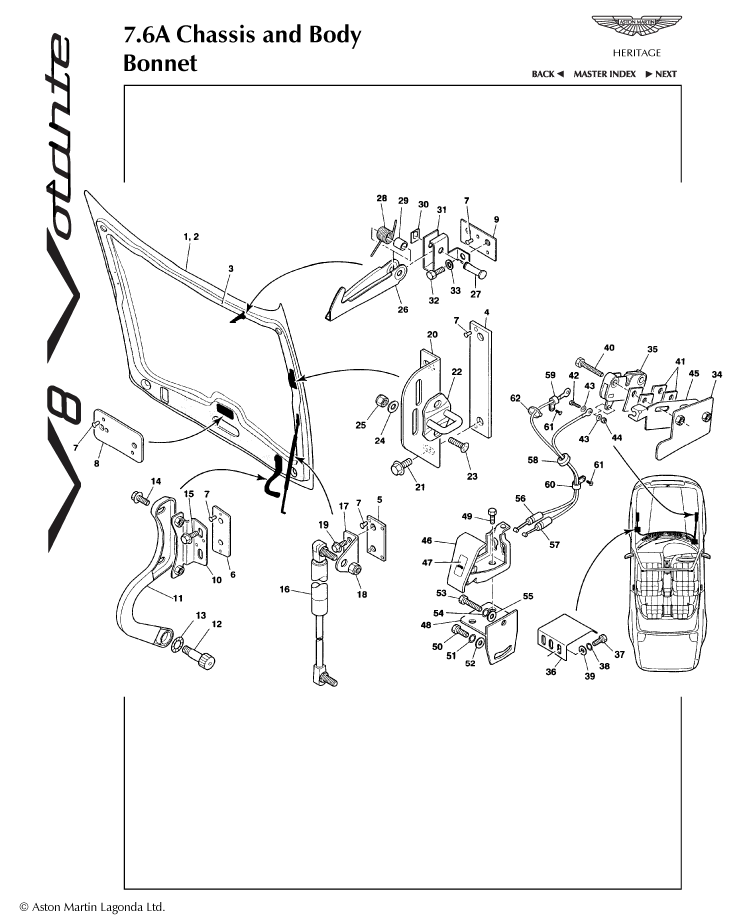

7.6a - Bonnet Parts
Bolt, skt shldr, M10x25
New / New
Diagram No:
12
Quantity:
2
Available to order (2-3 days delay)
Screw, M6 x 12, plates to bulkhead
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Washer, crinkle, M12 copper self finish
New / New
Diagram No:
13
Quantity:
2
Available to order (2-3 days delay)
Screw, flg, M6 x 16, lower fixing rear
New / New
Diagram No:
19
Quantity:
4
Available to order (2-3 days delay)
P clip, black nylon
New / New
Diagram No:
59
Quantity:
1
Available to order (2-3 days delay)
Nut, flg, nyloc, M8, hinge bracket to drain channel
New / New
Diagram No:
18
Quantity:
4
Available to order (2-3 days delay)
Loctite 341, 2 x 300ml pack
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Cable tie, 98mm x 22mm
New / New
Diagram No:
62
Quantity:
2
Available to order (2-3 days delay)
Nut, nyloc, M5, catch mechanism to drain channel
New / New
Diagram No:
44
Quantity:
2
Available to order (2-3 days delay)
Screw, M6x16 csk pozi hd
New / New
Diagram No:
23
Quantity:
4
Available to order (2-3 days delay)
'Copa-slip', switch to saddle
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Screw, M6 x 12 - Bracket to plenum LH side
New / New
Diagram No:
49
Quantity:
2
Available to order (2-3 days delay)
'P' clip, 1/4" nylon, tank line
New / New
Diagram No:
60
Quantity:
2
Available to order (2-3 days delay)
Grommet, 3/8" bore
New / New
Diagram No:
58
Quantity:
1
Available to order (2-3 days delay)
'Loctite' 242e sealant, bracket and spacer fixing
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Screw, M5 x 16, Cruise control unit to 'A' Post panel
New / New
Diagram No:
53
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc, M6, support tube assembly to 'A' Post
New / New
Diagram No:
25
Quantity:
4
Available to order (2-3 days delay)
Washer, shakeproof, M5, Cruise control unit to 'A' Post panel
New / New
Diagram No:
51
Quantity:
1
Available to order (2-3 days delay)
Screw, M5 x 12, Supt bracket attach to pedal bracket
New / New
Diagram No:
50
Quantity:
1
Available to order (2-3 days delay)
Washer, shakeproof, M6
New / New
Diagram No:
38
Quantity:
2
Available to order (2-3 days delay)
Washer, plain, M5, Cruise control unit to 'A' Post panel
New / New
Diagram No:
43
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, M6, interlock cable to steering column
New / New
Diagram No:
24
Quantity:
4
Available to order (2-3 days delay)
Screw, csk skt head, M6x40
New / New
Diagram No:
40
Quantity:
4
Available to order (2-3 days delay)
Screw, M8x12
New / New
Diagram No:
14
Quantity:
4
Available to order (2-3 days delay)
Screw, M5 x 16, boot latch, plate & sw bracket to chassis
New / New
Diagram No:
42
Quantity:
2
Available to order (2-3 days delay)
Screw, M6 x 10, bracket to bulkhead
New / New
Diagram No:
32
Quantity:
2
Available to order (2-3 days delay)
Screw, No.8 x 1/2", See section 7.6 for bonnet lever
New / New
Diagram No:
61
Quantity:
1
Available to order (2-3 days delay)
Clip, bonnet safety catch
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Bonnet latch
New / New
Diagram No:
35
Quantity:
2
Available to order (2-3 days delay)
Bracket, cable, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hinge reinforcememnt plate assembly
New / New
Diagram No:
6
Quantity:
2
Available to order (2-3 days delay)
Bonnet assembly
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Clamping plate assembly, striker bracket
New / New
Diagram No:
4
Quantity:
2
Available to order (2-3 days delay)
Bearing spacer, bonnet safety catch
New / New
Diagram No:
29
Quantity:
1
Available to order (2-3 days delay)
Bracket, bonnet safety catch
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Retaining plate assembly, RH
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Catch plate
New / New
Diagram No:
36
Quantity:
1
Available to order (2-3 days delay)
Gas stay, bonnet
New / New
Diagram No:
16
Quantity:
2
Available to order (2-3 days delay)
Pivot pin, bonnet safety catch
New / New
Diagram No:
27
Quantity:
1
Available to order (2-3 days delay)
Hook, bonnet safety catch
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
Gas stay mounting reinforcememnt assembly
New / New
Diagram No:
5
Quantity:
2
Available to order (2-3 days delay)
Spacer plate, bonnet release
New / New
Diagram No:
41
Quantity:
3
Available to order (2-3 days delay)
Bracket, cable, RH
New / New
Diagram No:
45
Quantity:
1
Available to order (2-3 days delay)
Bonnet reinforcement
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Retaining plate assembly, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bonnet hinge assembly, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bonnet hinge assembly, RH
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Bonnet skin panel
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Bracket, gas stay, bonnet
New / New
Diagram No:
17
Quantity:
2
Available to order (2-3 days delay)
Spring, bonnet safety catch
New / New
Diagram No:
28
Quantity:
1
Available to order (2-3 days delay)
