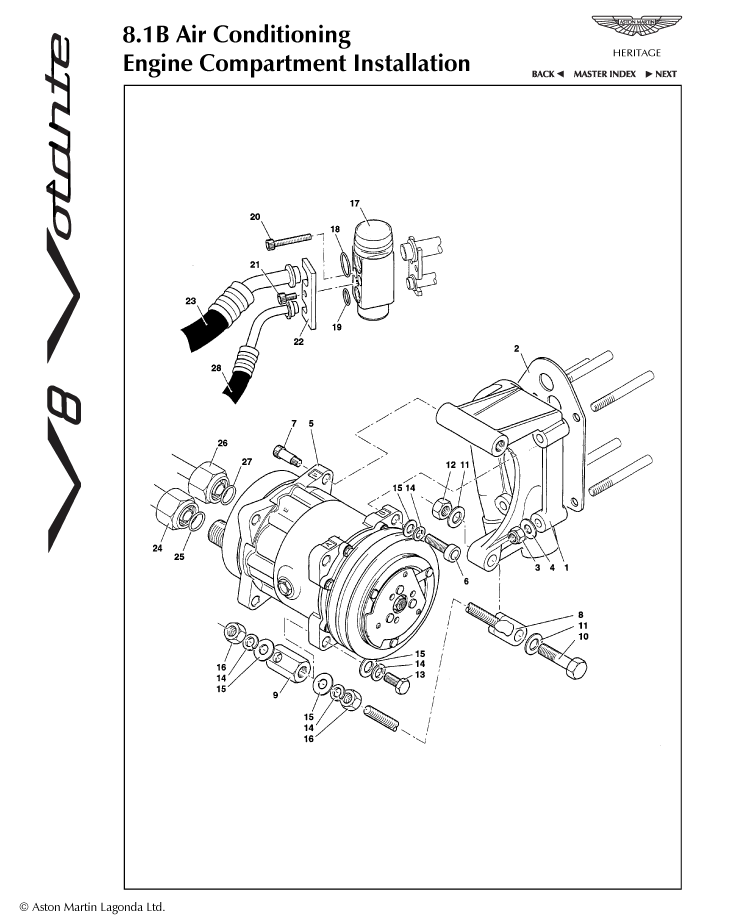

8.1b - Engine Compartment Installation Parts
O ring
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
O ring
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Capscrew, M6x12
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Capscrew, M5x40
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, 3/8" cylinder head to block
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Capscrew, M8 x 25 shouldered
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Bolt, M10x80
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Capscrew, M10 x 40
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
'O' ring seal
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
Screw, M10 x 35
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
'O' ring
New / New
Diagram No:
27
Quantity:
1
Available to order (2-3 days delay)
Nut, hex, M10, eyebolt to trunnion
New / New
Diagram No:
16
Quantity:
2
Available to order (2-3 days delay)
Washer, plain, M10, fuel tank strap bracket attach
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Washer, spring, M10, fuel tank strap bracket attach
New / New
Diagram No:
14
Quantity:
4
Available to order (2-3 days delay)
Nut, Nyloc, M10, 'P' clip to bracket
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Trunnion, adjuster
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Hose assembly, expansion valve to fuel cooler
New / New
Diagram No:
23
Quantity:
1
Available to order (2-3 days delay)
Expansion valve
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Compressor
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Clamp plate, A/C pipe to expansion valve
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Hose, compressor to condenser
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
Pipe, fuel cooler to compressor
New / New
Diagram No:
24
Quantity:
1
Available to order (2-3 days delay)
Eyebolt, adjuster
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Hose, receiver drier to expansion valve
New / New
Diagram No:
28
Quantity:
1
Available to order (2-3 days delay)
Gasket, pipes and compressor bracket
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Bracket assy, oil pipes and compressor
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc - 3/8" UNF - thin
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Nut, Nyloc, 5/16" UNF - water pump to timing case
New / New
Diagram No:
3
Quantity:
3
Available to order (2-3 days delay)
Washer, plain, 5/16, mtg rubber attach to rad lower panel
New / New
Diagram No:
4
Quantity:
3
Available to order (2-3 days delay)
