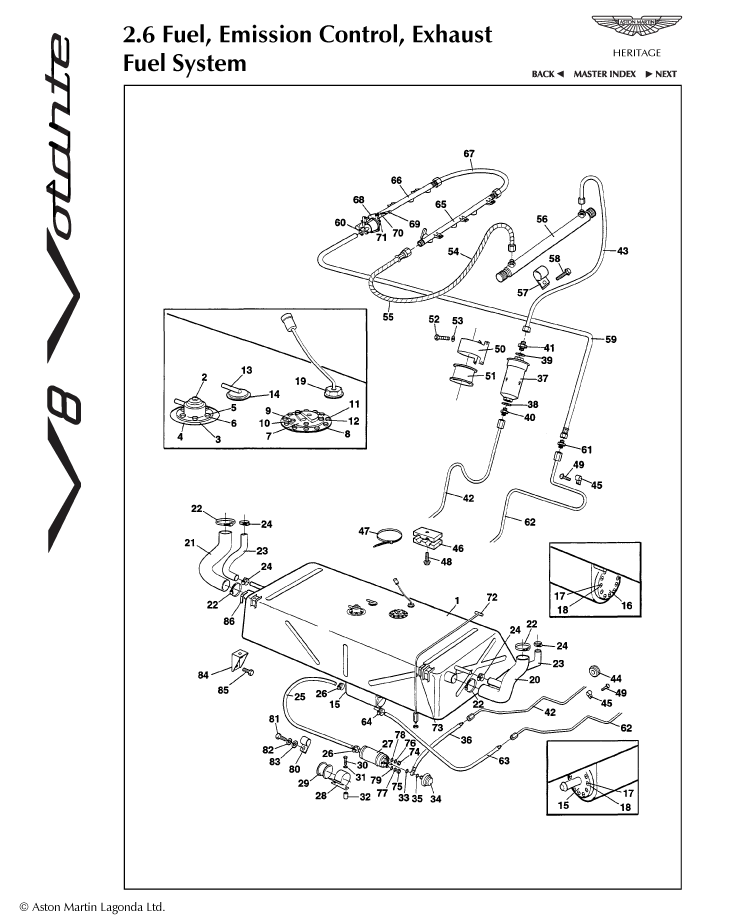

2.6 - Fuel System Parts
Fuel rail assembly, LH : See sect 2.5B for latest fixing
New / New
Diagram No:
66
Quantity:
1
Available to order (2-3 days delay)
Fuel rail assembly, RH : See sect 2.5B for latest fixing
New / New
Diagram No:
65
Quantity:
1
Available to order (2-3 days delay)
Tube assembly, fuel rail connecting
New / New
Diagram No:
67
Quantity:
1
Available to order (2-3 days delay)
Fuel pressure regulator
New / New
Diagram No:
68
Quantity:
1
Available to order (2-3 days delay)
Fuel hose, feed
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
Adhesive, Sikaflex 255 FC
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Damper, fuel pump
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Sika primer 210 T
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Seal, bonded, M12
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
Screw, flg, M6 x 16, lower fixing rear
New / New
Diagram No:
85
Quantity:
4
Available to order (2-3 days delay)
Screw, flg, No.8 x 25
New / New
Diagram No:
48
Quantity:
2
Available to order (2-3 days delay)
Seal, bonded, M13, fuel pump to manifold
New / New
Diagram No:
39
Quantity:
1
Available to order (2-3 days delay)
Pipe clamp, 9.5/9.5
New / New
Diagram No:
46
Quantity:
4
Available to order (2-3 days delay)
Screw, PK, No. 10 x 1/2", Battery box attach
New
Diagram No:
49
Quantity:
4
In stock
'P' clip, 25mm dia
New / New
Diagram No:
57
Quantity:
2
Available to order (2-3 days delay)
Adaptor, M12-1.5 x 3/8" BSP
New / New
Diagram No:
41
Quantity:
1
Available to order (2-3 days delay)
Screw, flg, M8x16
New / New
Diagram No:
58
Quantity:
2
Available to order (2-3 days delay)
Screw, No.10-24 UNC x 5/8", relief valve to fuel tank
New / New
Diagram No:
5
Quantity:
6
Available to order (2-3 days delay)
Adaptor, 9/16" JIC x 3/8" BSP
New / New
Diagram No:
61
Quantity:
1
Available to order (2-3 days delay)
Spirap, 1/2" OD, front sensor cable
New / New
Diagram No:
55
Quantity:
A/R
Available to order (2-3 days delay)
Hose clip, 12 - 22 mm, fuel breather hoses
New / New
Diagram No:
24
Quantity:
4
Available to order (2-3 days delay)
Cable clamp, Nylon, Sensor to fan cowl
New / New
Diagram No:
80
Quantity:
1
Available to order (2-3 days delay)
Adaptor, 9/16" JIC x M14, fuel filter to manifold
New / New
Diagram No:
40
Quantity:
1
Available to order (2-3 days delay)
Bolt, M6 x 25, selector housing to adaptor plate
New / New
Diagram No:
52
Quantity:
2
Available to order (2-3 days delay)
Strap, cable, drain hose retaining
New / New
Diagram No:
47
Quantity:
2
Available to order (2-3 days delay)
Grommet, 3/8" x 1"
New / New
Diagram No:
44
Quantity:
2
Available to order (2-3 days delay)
Packing Strip - fuel pump mounting
New / New
Diagram No:
29
Quantity:
1
Available to order (2-3 days delay)
Bolt, M6 x 12, pressure regulator to bracket
New / New
Diagram No:
81
Quantity:
1
Available to order (2-3 days delay)
Hose clip, 8 - 16mm, bellows
New
Diagram No:
60
Quantity:
1
In stock
Hose clip, 50 - 70 mm, Use to replace item 13
New / New
Diagram No:
22
Quantity:
4
Available to order (2-3 days delay)
Screw, M6 x 30, A.P.S bracket to bulkhead
New / New
Diagram No:
30
Quantity:
2
Available to order (2-3 days delay)
'P' clip, 3/8" Nylon, for bulbholder
New / New
Diagram No:
45
Quantity:
4
Available to order (2-3 days delay)
Washer, shakeproof, M4,
New
Diagram No:
76
Quantity:
1
In stock
'Loctite' 572 sealant, lower column to steering unit
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Washer, shakeproof, M5, Cruise control unit to 'A' Post panel
New / New
Diagram No:
77
Quantity:
1
Available to order (2-3 days delay)
Screw, M5 x 12, Supt bracket attach to pedal bracket
New / New
Diagram No:
9
Quantity:
5
Available to order (2-3 days delay)
Washer, plain, M4, display carrier to gear shift surround
New / New
Diagram No:
78
Quantity:
1
Available to order (2-3 days delay)
Nut, M5, Control cable to brackets
New / New
Diagram No:
75
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, M5, Cruise control unit to 'A' Post panel
New
Diagram No:
10
Quantity:
5
In stock
Washer, plain, M6, interlock cable to steering column
New
Available to order (2-3 days delay)
Washer, spring, M6, sensor attach to vertical link
New / New
Diagram No:
70
Quantity:
2
Available to order (2-3 days delay)
Gasket, roll over valve
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Roll-over valve
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Gasket, Pressure/vacuum relief valve
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Ring, stiffener
New / New
Diagram No:
4
Quantity:
2
Available to order (2-3 days delay)
Pressure/vacuum relief valve
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Copper washer
New / New
Diagram No:
35
Quantity:
1
Available to order (2-3 days delay)
Locknut, M4, brass
New / New
Diagram No:
74
Quantity:
1
Available to order (2-3 days delay)
Jointing compound, Hermetite Gold, pick up sealing
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Spacer
New / New
Diagram No:
32
Quantity:
2
Available to order (2-3 days delay)
