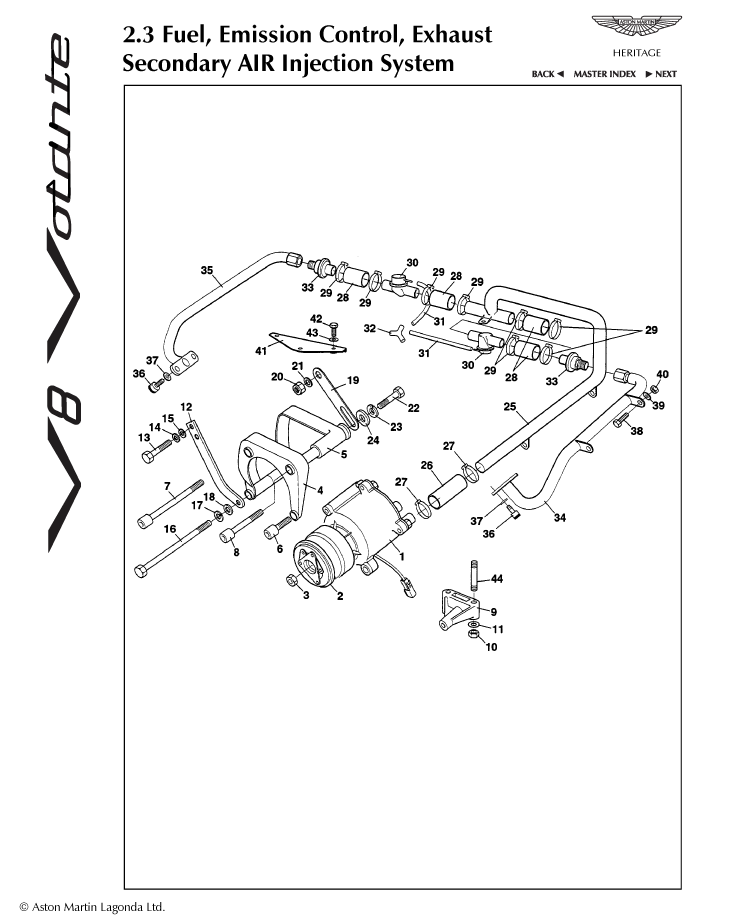

2.3 - Secondary AIR Injection System Parts
'Y' connection
New / New
Diagram No:
32
Quantity:
1
Available to order (2-3 days delay)
Secondary AIR injection pipe assembly, RH bank
New / New
Diagram No:
35
Quantity:
1
Available to order (2-3 days delay)
AIR injection pipe assembly, feed secondary
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
Hose, AIR injection
New / New
Diagram No:
28
Quantity:
4
Available to order (2-3 days delay)
Hose, AIR pump to injection pipe assy
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
Valve, AIR switching
New / New
Diagram No:
30
Quantity:
2
Available to order (2-3 days delay)
Housing assembly inner, AIR pump
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Clutch, AIR pump
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Support bracket assembly, AIR injection pipe
New / New
Diagram No:
41
Quantity:
1
Available to order (2-3 days delay)
AIR pump mounting bracket assembly
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Adjustment link, AIR pump
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Plate, pivot, AIR pump
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Secondary AIR injection pipe assembly, LH bank
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Housing outer, AIR pump
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Check valve
New / New
Diagram No:
33
Quantity:
2
Available to order (2-3 days delay)
AIR pump and clutch assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
AIR pump
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Screw, M8 x 100, caliper mounting to De-dion beam
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Capscrew, M8 x 70
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Clip, Oetiker 36, support elbow to expansion tank
New / New
Diagram No:
27
Quantity:
2
Available to order (2-3 days delay)
Bolt, M10 x 160
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Capscrew, M6 x 16, sensor attach to vertical link
New / New
Diagram No:
36
Quantity:
4
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNF. Alternator bracket
New / New
Diagram No:
44
Quantity:
2
Available to order (2-3 days delay)
Nut, nyloc, M5, catch mechanism to drain channel
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Capscrew, M8 x 20
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Ear clamp - Hose attachment
New / New
Diagram No:
29
Quantity:
8
Available to order (2-3 days delay)
Screw, M6 x 12 - Bracket to plenum LH side
New / New
Diagram No:
38
Quantity:
2
Available to order (2-3 days delay)
Tube, polyvon, 1/8" dia, vac valve to carbon can 'Y'
New / New
Diagram No:
31
Quantity:
A/R
Available to order (2-3 days delay)
Locknut, M14, thin
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
'Loctite' 242e sealant, bracket and spacer fixing
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Screw, M8 x 20, blanks off clutch master cyl position
New
In stock
Nut, Nyloc, M6, support tube assembly to 'A' Post
New / New
Diagram No:
40
Quantity:
2
Available to order (2-3 days delay)
Setscrew, M10 x 25
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Screw, M5 x 12, Supt bracket attach to pedal bracket
New / New
Diagram No:
42
Quantity:
1
Available to order (2-3 days delay)
Washer, shakeproof, M10, union to bulkhead
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, M10, fuel tank strap bracket attach
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, M6, interlock cable to steering column
New
Available to order (2-3 days delay)
Washer, plain, M8, assembly to boot floor
New / New
Diagram No:
15
Quantity:
2
Available to order (2-3 days delay)
Washer, spring, M6, sensor attach to vertical link
New / New
Diagram No:
37
Quantity:
4
Available to order (2-3 days delay)
Washer, spring, M8, mtg brkt to upper mtg brkt & column
New / New
Diagram No:
14
Quantity:
2
Available to order (2-3 days delay)
Washer, spring, M5 boot latch, plate & sw bracket to chassis
New / New
Diagram No:
43
Quantity:
1
Available to order (2-3 days delay)
Washer, spring, M10, fuel tank strap bracket attach
New / New
Diagram No:
23
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc, M10, 'P' clip to bracket
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Screw, M5 x 16, boot latch, plate & sw bracket to chassis
New
Diagram No:
-
Quantity:
1
In stock
Aluminium washer, 3/16" i.d. x 3/4" o.d.
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pipe clip, pipe to air inj. pipe, From June 1991
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc, 1/4" UNF
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc, 5/16" UNF - water pump to timing case
New / New
Diagram No:
10
Quantity:
2
Available to order (2-3 days delay)
Washer, spring, 1/4" Baffle plate to valley plate
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Washer, plain 1/4" Baffle plate to valley plate
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
