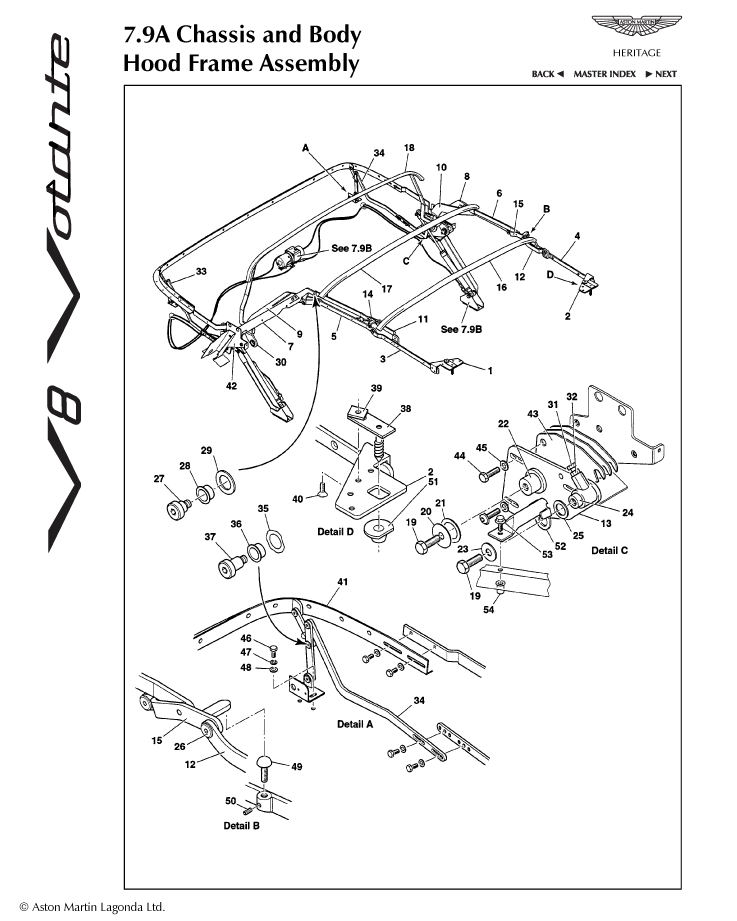

7.9a - Hood Frame Assembly Parts
Washer, plain, M8
New / New
Diagram No:
45
Quantity:
6
Available to order (2-3 days delay)
Screw, M6 x 20, countersunk head, black
New / New
Diagram No:
40
Quantity:
20
Available to order (2-3 days delay)
Screw, M8 x 20
New / New
Diagram No:
44
Quantity:
4
Available to order (2-3 days delay)
Nut, M8, black
New / New
Diagram No:
32
Quantity:
2
Available to order (2-3 days delay)
Screw, M10 x 30
New / New
Diagram No:
19
Quantity:
4
Available to order (2-3 days delay)
Screw, M6 x 12
New / New
Diagram No:
46
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, M6, support tube assembly to 'A' Post
New / New
Diagram No:
48
Quantity:
4
Available to order (2-3 days delay)
Washer, crinkle, M8
New / New
Diagram No:
35
Quantity:
4
Available to order (2-3 days delay)
Washer, spring, M6
New / New
Diagram No:
47
Quantity:
4
Available to order (2-3 days delay)
Screw, flg, M6 x 16, lower fixing rear
New / New
Diagram No:
53
Quantity:
2
Available to order (2-3 days delay)
Bearing, Glacier
New / New
Diagram No:
30
Quantity:
2
Available to order (2-3 days delay)
Screw, M8 x 30
New / New
Diagram No:
31
Quantity:
2
Available to order (2-3 days delay)
Buffer, rubber, link hoodstick, No.1
New / New
Diagram No:
49
Quantity:
2
Available to order (2-3 days delay)
Rivnut, M6 x 16 csk
New / New
Diagram No:
54
Quantity:
2
Available to order (2-3 days delay)
Grubscrew, M4x6 plain cup point
New / New
Diagram No:
50
Quantity:
2
Available to order (2-3 days delay)
No.1 hoodstick assy
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Hood frame assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Cantrail, rear, RH
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Tube assembly, hood rail stabiliser
New / New
Diagram No:
52
Quantity:
2
Available to order (2-3 days delay)
C post assy, LH
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
No.2 hoodstick assy
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Cantrail assy, front adjustable, LH
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Link assy, No.1 hoodstick, RH
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Bracket, attachment, front header, RH
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Cantrail, rear, LH
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
C post assy, RH
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Link, cantrail pivot, LH
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Cantrail assy, front adjustable, RH
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Deck rail lift mechanism assembly, LH
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Pivot, long, hood point
New / New
Diagram No:
24
Quantity:
2
Available to order (2-3 days delay)
Location cone, screw spigot
New / New
Diagram No:
51
Quantity:
2
Available to order (2-3 days delay)
Deck rail lift mechanism assembly, RH
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
Tapped plate, screw spigot
New / New
Diagram No:
39
Quantity:
2
Available to order (2-3 days delay)
Washer, retaining, C post to ram mounting bracket
New / New
Diagram No:
20
Quantity:
2
Available to order (2-3 days delay)
Bearing, cantrail guide link pivot
New / New
Diagram No:
26
Quantity:
2
Available to order (2-3 days delay)
Washer, retaining, cantrail guide link pivot
New / New
Diagram No:
23
Quantity:
2
Available to order (2-3 days delay)
Bearing, main C post pivot
New / New
Diagram No:
22
Quantity:
2
Available to order (2-3 days delay)
Mounting bracket assembly, ram, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
No.3 hoodstick assembly
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Screw, pivot
New / New
Diagram No:
37
Quantity:
4
Available to order (2-3 days delay)
Deckrail assembly
New / New
Diagram No:
41
Quantity:
1
Available to order (2-3 days delay)
Spacer, standard hood joint
New / New
Diagram No:
29
Quantity:
18
Available to order (2-3 days delay)
Mounting bracket assembly, ram, LH
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Spacer, C post to ram mounting bracket
New / New
Diagram No:
21
Quantity:
2
Available to order (2-3 days delay)
Bearing, standard hood joint
New / New
Diagram No:
28
Quantity:
20
Available to order (2-3 days delay)
Guide link assembly, cantrail, LH
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Link assy, No.1 hoodstick, LH
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Bracket, attachment, front header, LH
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Link, cantrail pivot, RH
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Shim, hoodframe mounting
New / New
Diagram No:
43
Quantity:
A/R
Available to order (2-3 days delay)
