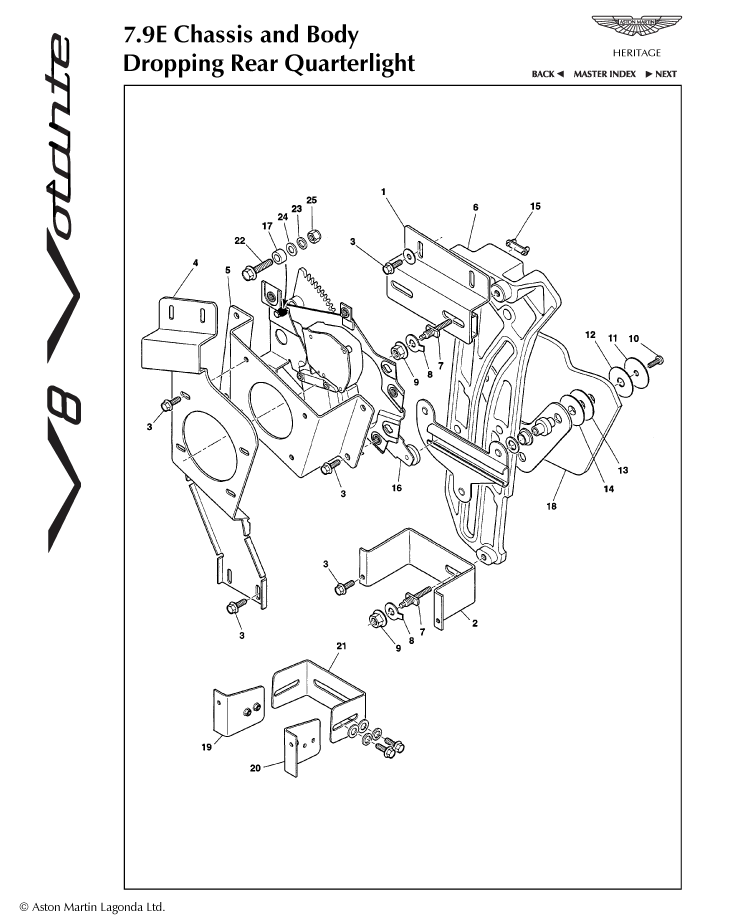

7.9e - Dropping Rear Quarterlight Parts
Screw, flg, M6 x 16, lower fixing rear
New / New
Diagram No:
3
Quantity:
12
Available to order (2-3 days delay)
Nut, M8, flange head
New / New
Diagram No:
9
Quantity:
6
Available to order (2-3 days delay)
Screw, flg, M6x12, vacuum reservoir bracket attach
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Setscrew, M6 x 20
New / New
Diagram No:
22
Quantity:
2
Available to order (2-3 days delay)
Nut, hex, M6, cup retainer to bracket
New / New
Diagram No:
25
Quantity:
2
Available to order (2-3 days delay)
Washer, shakeproof, M6
New / New
Diagram No:
23
Quantity:
2
Available to order (2-3 days delay)
Washer, plain, M6, interlock cable to steering column
New
Available to order (2-3 days delay)
Guide leg assy, quarter light, lower rear
New / New
Diagram No:
19
Quantity:
2
Available to order (2-3 days delay)
Washer, rubber
New / New
Diagram No:
12
Quantity:
6
Available to order (2-3 days delay)
Mounting bracket assy, window lift motor, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Guide leg assy, quarter light, lower front
New / New
Diagram No:
20
Quantity:
2
Available to order (2-3 days delay)
Bracket assy, lower quarter light guide, RH
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Washer
New / New
Diagram No:
11
Quantity:
6
Available to order (2-3 days delay)
Support bracket, window lift motor, RH
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Bracket assembly, lower quarter light guide
New / New
Diagram No:
21
Quantity:
2
Available to order (2-3 days delay)
Bracket assy, lower quarter light guide, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Washer, rubber
New / New
Diagram No:
13
Quantity:
6
Available to order (2-3 days delay)
Mounting bracket assy, window lift motor, RH
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Regulator assembly, rear quarter glass, reworked, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Glass Support
New / New
Diagram No:
15
Quantity:
2
Available to order (2-3 days delay)
Bracket Assembly, Upper Quarter Light Guide LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Regulator assembly, rear quarter glass, reworked, RH
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Support bracket, window lift motor, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket Assembly, Upper Quarter Light Guide RH
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Spacer, dash
New / New
Diagram No:
17
Quantity:
2
Available to order (2-3 days delay)
Guide plate assembly, RH
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Glass, rear quarter light, RH
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Guide plate assembly, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Glass, rear quarter light, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spacer washer, 2mm thick
New / New
Diagram No:
14
Quantity:
10
Available to order (2-3 days delay)
Screw, glass retaining
New / New
Diagram No:
10
Quantity:
6
Available to order (2-3 days delay)
Screw, adjustment
New / New
Diagram No:
7
Quantity:
6
Available to order (2-3 days delay)
Tab washer - glass adjustment screw
New / New
Diagram No:
8
Quantity:
6
Available to order (2-3 days delay)
