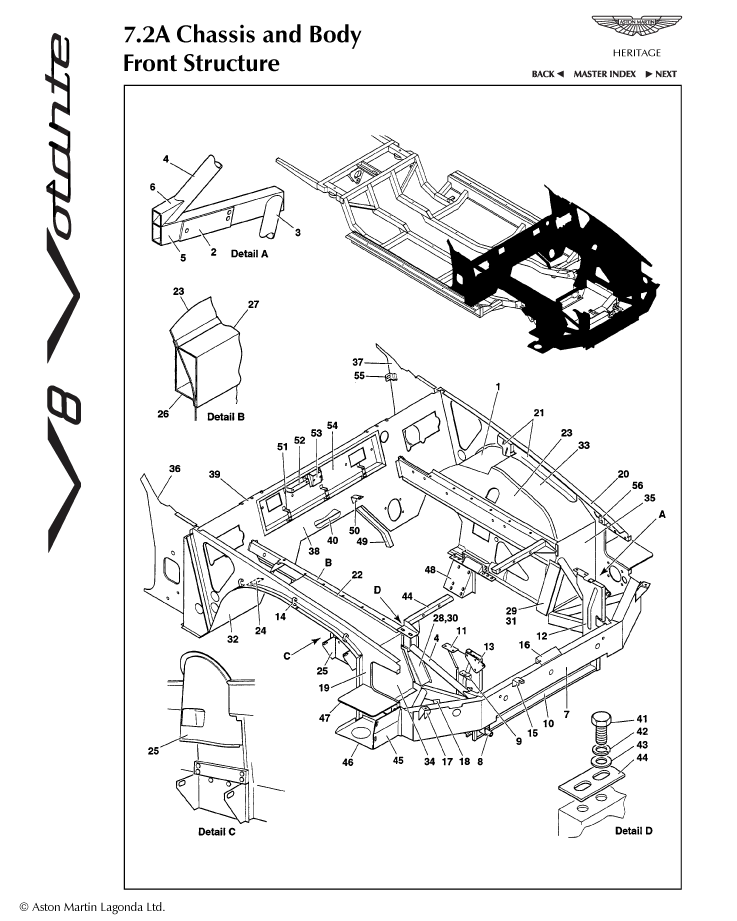

7.2a - Front Structure Parts
Washer, plain, M8 Rear bumper attach
New / New
Diagram No:
43
Quantity:
4
Available to order (2-3 days delay)
Screw, M8 x 20, blanks off clutch master cyl position
New
In stock
Washer, spring, M8, mtg brkt to upper mtg brkt & column
New / New
Diagram No:
42
Quantity:
4
Available to order (2-3 days delay)
Fir tree button, M5
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Fir tree button, M4
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Fir tree button, M6
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Fastener, fir tree Cantrail attach
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Panel assembly, inner wing to skin, RH
New / New
Diagram No:
46
Quantity:
1
Available to order (2-3 days delay)
Panel assembly, inner wing to skin, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Reinforcement bracket, bulkhead crossmember
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
A post inner assembly, LH
New / New
Diagram No:
37
Quantity:
1
Available to order (2-3 days delay)
Vertical panel assembly, front wheelarch, LH
New / New
Diagram No:
35
Quantity:
1
Available to order (2-3 days delay)
Recess panel, front bulkhead
New / New
Diagram No:
54
Quantity:
1
Available to order (2-3 days delay)
A post inner assembly, RH
New / New
Diagram No:
36
Quantity:
1
Available to order (2-3 days delay)
Bracket, dash mounting
New / New
Diagram No:
55
Quantity:
2
Available to order (2-3 days delay)
Crossmember panel assembly, front bulkhead
New / New
Diagram No:
40
Quantity:
1
Available to order (2-3 days delay)
Panel, splash, wheelarch front, LH
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
Wheelarch assembly, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket assy, pressure sensor mounting
New / New
Diagram No:
52
Quantity:
1
Available to order (2-3 days delay)
Reinforcement angle assembly
New / New
Diagram No:
39
Quantity:
2
Available to order (2-3 days delay)
Panel, splash, wheelarch front, RH
New / New
Diagram No:
32
Quantity:
1
Available to order (2-3 days delay)
Bracket, brake pipe mounting
New / New
Diagram No:
51
Quantity:
3
Available to order (2-3 days delay)
Wheelarch assembly, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Inner section assembly, front vertical member, LH
New / New
Diagram No:
29
Quantity:
1
Available to order (2-3 days delay)
Crossmember assembly, front upper
New / New
Diagram No:
44
Quantity:
1
Available to order (2-3 days delay)
Pocket assembly, ABS modulator
New / New
Diagram No:
24
Quantity:
2
Available to order (2-3 days delay)
Inner section assembly, front vertical member, RH
New / New
Diagram No:
28
Quantity:
1
Available to order (2-3 days delay)
Wheelarch panel assembly, LH
New / New
Diagram No:
23
Quantity:
1
Available to order (2-3 days delay)
Recess panel, master cylinder, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Outer section, front top longitudinal, LH
New / New
Diagram No:
27
Quantity:
1
Available to order (2-3 days delay)
Inner section assembly, front top longitudinal, LH
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
Wheelarch panel assembly, RH
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Bracket, clutch pipe mounting
New / New
Diagram No:
50
Quantity:
1
Available to order (2-3 days delay)
Inner section assembly, front top longitudinal, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Recess panel, master cylinder, LH
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Vertical panel assembly, front wheelarch, RH
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Bracket assy, inertia switch mounting
New / New
Diagram No:
53
Quantity:
1
Available to order (2-3 days delay)
Front bulkhead assembly
New / New
Diagram No:
38
Quantity:
1
Available to order (2-3 days delay)
Front spring turret assembly
New / New
Diagram No:
25
Quantity:
2
Available to order (2-3 days delay)
Outer section, front top longitudinal, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Outer section, front vertical member, LH
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Outer section, front vertical member, RH
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Gusset assembly, inner wing, LH
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Mounting bracket assembly, bonnet hinge, LH
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Support tube assembly, lower inner, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Side panel assembly, radiator support, RH
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Support tube assembly, lower inner, LH
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Bracket, bumper corner support, RH
New / New
Diagram No:
45
Quantity:
1
Available to order (2-3 days delay)
Front bumper/radiator support, complete
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Gusset assembly, inner wing, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
