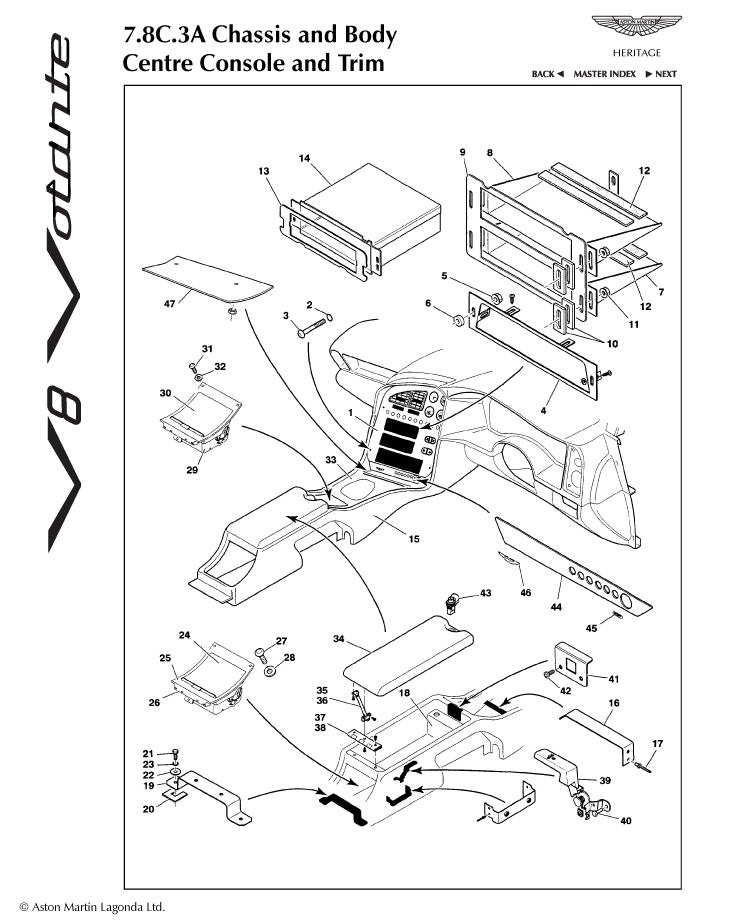

7.8c.3a - Centre Console & Trim Parts
Pop rivet, 3/32"
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Screw, No.4 x 1/4" rd hd
New / New
Diagram No:
31
Quantity:
4
Available to order (2-3 days delay)
Anchor nut, M4
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Grommet, boot release cable
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Adhesive, Sikaflex 255 FC
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Screw, No.6 x 5/8" S/T raised head - black
New / New
Diagram No:
36
Quantity:
4
Available to order (2-3 days delay)
Lock - cubby box
New / New
Diagram No:
43
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, M5, mounting bracket to filler flap
New / New
Diagram No:
22
Quantity:
4
Available to order (2-3 days delay)
'O' Ring
New / New
Diagram No:
2
Quantity:
4
Available to order (2-3 days delay)
Nut, hex, flg, M4
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Nut, nyloc, M5, catch mechanism to drain channel
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
Screw, M6x50, csk
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Screw, M5 x 25
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Screw, countersunk head, M4 x 16, Battery box attach
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
Double sided adhestive tape
New / New
Diagram No:
12
Quantity:
A/R
Available to order (2-3 days delay)
Screw, M5 x 20, sender to adaptor plate
New / New
Diagram No:
21
Quantity:
4
Available to order (2-3 days delay)
Screw, M4 x 12, Inertia switch attach
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Washer, shakeproof, M5, Cruise control unit to 'A' Post panel
New / New
Diagram No:
23
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, M4, display carrier to gear shift surround
New / New
Diagram No:
32
Quantity:
4
Available to order (2-3 days delay)
Nut, M5, Control cable to brackets
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Washer, plain, M5, Cruise control unit to 'A' Post panel
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
lower reinforcement, console to dash
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Washer, console to dash
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
Tapping plate, dash to console
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Lower vertical cubby box, trimmed
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spreader bracket, centre console
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Insert, cassette, cubby box, flocked
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Lever, remote boot release
New / New
Diagram No:
39
Quantity:
1
Available to order (2-3 days delay)
Infill trim assy, centre console
New / New
Diagram No:
47
Quantity:
1
Available to order (2-3 days delay)
Infill trim assy, centre console
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spacer plate, radio
New / New
Diagram No:
10
Quantity:
4
Available to order (2-3 days delay)
Stowage box assy
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Centre console and fittings
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Seal cover, boot lever
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Veneer, ashtray lid, rear
New / New
Diagram No:
24
Quantity:
1
Available to order (2-3 days delay)
Radio slipper plate, centre console, (optional)
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Fixing bracket, rear ashtray
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Centre console and fittings
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Mounting plate assy, air cond
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Centre console trimmed
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Centre console trimmed
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Veneer, radio/air conditioning
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Veneer, ashtray, rear
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
Gearshift veneer
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Veneer panel assy, P,R,N,D,2,1
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Gearshift veneer
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
P,R,N,D,2,1 indicator panel assy
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Veneer panel assy, P,R,N,D,2,1
New / New
Diagram No:
44
Quantity:
1
Available to order (2-3 days delay)
Bracket, radio, rear, (optional)
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Plate support, radio centre console
New / New
Diagram No:
13
Quantity:
2
Available to order (2-3 days delay)
