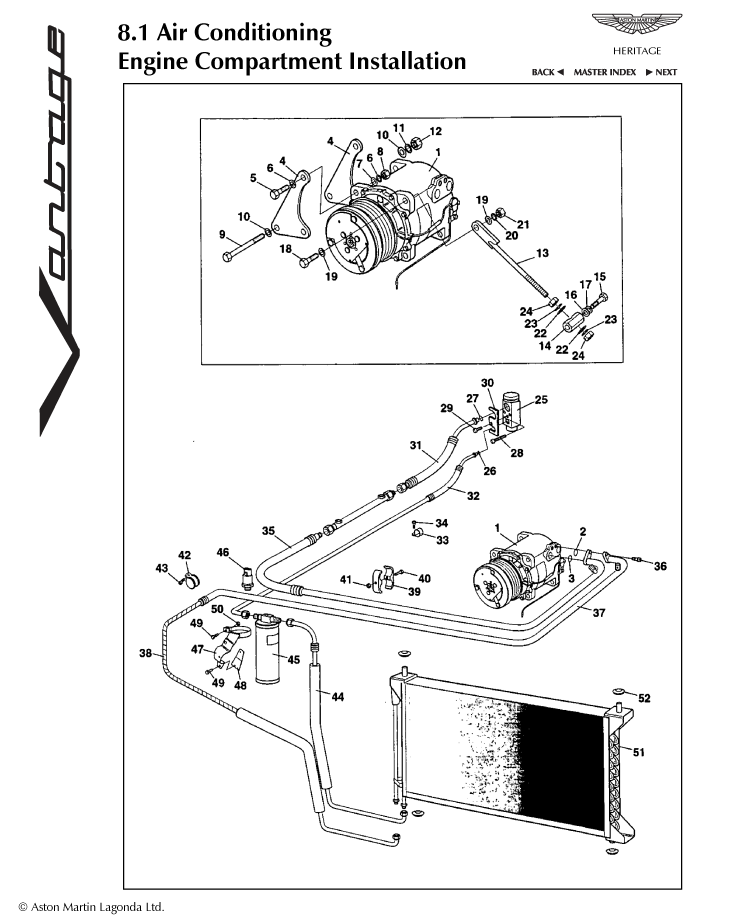

8.1 - Engine Compartment Installation Parts
O ring
New / New
Diagram No:
27
Quantity:
1
Available to order (2-3 days delay)
O ring
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
Capscrew, M6x12
New / New
Diagram No:
29
Quantity:
1
Available to order (2-3 days delay)
Capscrew, M5x40
New / New
Diagram No:
28
Quantity:
2
Available to order (2-3 days delay)
Pipe retaining clip
New / New
Diagram No:
42
Quantity:
1
Available to order (2-3 days delay)
Screw, flg, M6 x 16, lower fixing rear
New / New
Diagram No:
34
Quantity:
3
Available to order (2-3 days delay)
'P' clip, brake cable support
New / New
Diagram No:
33
Quantity:
3
Available to order (2-3 days delay)
Screw, flg, M8fx25
New / New
Diagram No:
36
Quantity:
2
Available to order (2-3 days delay)
Nut, flg, M6, support tube assembly to 'A' Post
New / New
Diagram No:
41
Quantity:
1
Available to order (2-3 days delay)
Screw, flg, M6x12, vacuum reservoir bracket attach
New / New
Diagram No:
43
Quantity:
1
Available to order (2-3 days delay)
Bolt, flg, M6x35, headlamp mtg panel to mtg bracket
New / New
Diagram No:
40
Quantity:
1
Available to order (2-3 days delay)
Screw, flg, M5x16
New / New
Diagram No:
49
Quantity:
3
Available to order (2-3 days delay)
Nut, flg, nyloc, M5, air bag module to steering wheel
New / New
Diagram No:
50
Quantity:
1
Available to order (2-3 days delay)
Spirap, 1/2" OD, front sensor cable
New / New
Diagram No:
38
Quantity:
1
Available to order (2-3 days delay)
Screw, M10 x 35
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Bolt, M12x120
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Rubber Grommet, condensor mounting
New
Diagram No:
52
Quantity:
1
In stock
Setscrew, M10 x 25
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Nut, hex, M10, eyebolt to trunnion
New / New
Diagram No:
5
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, M12, Gearbox to bellhousing
New / New
Diagram No:
10
Quantity:
2
Available to order (2-3 days delay)
Nut, M12
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, M10, fuel tank strap bracket attach
New / New
Diagram No:
6
Quantity:
8
Available to order (2-3 days delay)
Washer, spring, M12
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Washer, spring, M10, fuel tank strap bracket attach
New / New
Diagram No:
7
Quantity:
4
Available to order (2-3 days delay)
A/C trinary switch
New / New
Diagram No:
46
Quantity:
1
Available to order (2-3 days delay)
A/C compressor
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Eyebolt assembly, A/C compressor
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Hose assembly, compressor to condensor
New / New
Diagram No:
37
Quantity:
1
Available to order (2-3 days delay)
Hose assembly, expansion valve to fuel cooler
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Hose assembly, reciever drier to condensor
New / New
Diagram No:
44
Quantity:
1
Available to order (2-3 days delay)
Condenser, air conditioning
New / New
Diagram No:
51
Quantity:
1
Available to order (2-3 days delay)
Hose clamp, compressor pipes, modified
New / New
Diagram No:
39
Quantity:
1
Available to order (2-3 days delay)
Hose assembly, fuel cooler to compressor
New / New
Diagram No:
35
Quantity:
1
Available to order (2-3 days delay)
O ring, compressor suction port
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Expansion valve
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
O ring, compressor discharge port
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Hose assembly, expansion valve to receiver drier
New / New
Diagram No:
32
Quantity:
1
Available to order (2-3 days delay)
Mounting plate, A/C compressor
New / New
Diagram No:
4
Quantity:
2
Available to order (2-3 days delay)
Receiver drier
New / New
Diagram No:
45
Quantity:
1
Available to order (2-3 days delay)
Trunnion, adjuster
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Clamp plate, A/C pipe to expansion valve
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Clamp assembly, air reciever drier
New / New
Diagram No:
48
Quantity:
1
Available to order (2-3 days delay)
Bracket assembly, air reciever drier
New / New
Diagram No:
47
Quantity:
1
Available to order (2-3 days delay)
