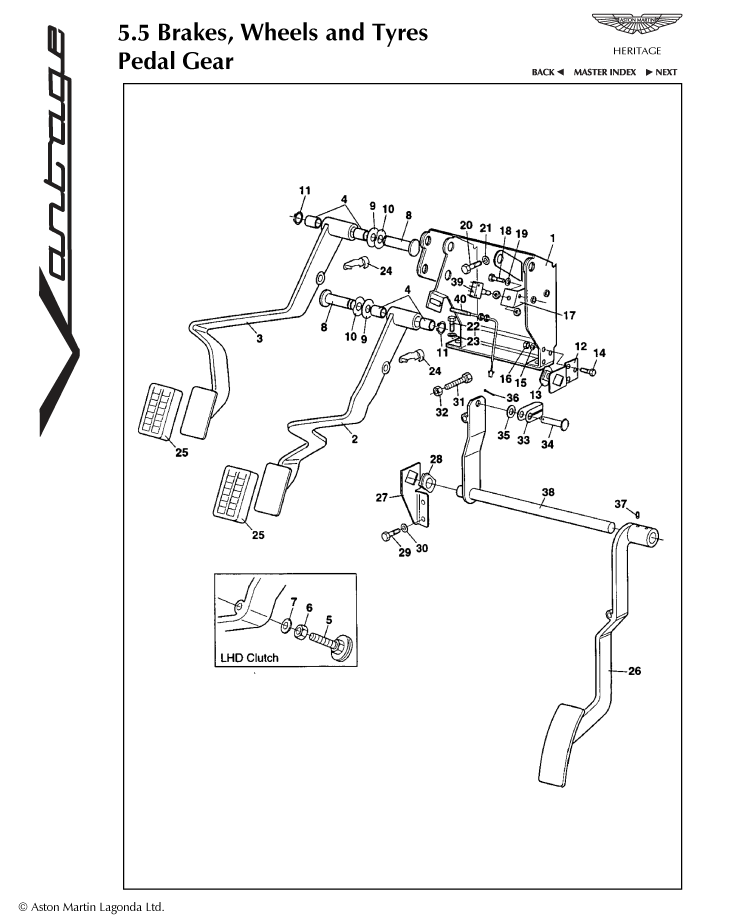

5.5 - Pedal Gear Parts
Screw, M5x16, facing pad attach
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Circlip, M14 external
New / New
Diagram No:
11
Quantity:
2
Available to order (2-3 days delay)
Screw, M6 x 50
New / New
Diagram No:
31
Quantity:
2
Available to order (2-3 days delay)
Pin, spring
New / New
Diagram No:
24
Quantity:
2
Available to order (2-3 days delay)
Nut, nyloc, M5, catch mechanism to drain channel
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Bearing, glacier, brake and clutch pedals
New / New
Diagram No:
4
Quantity:
4
Available to order (2-3 days delay)
Washer, finger spring
New / New
Diagram No:
10
Quantity:
2
Available to order (2-3 days delay)
Bearing bush
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Screw, M6 x 12 - Bracket to plenum LH side
New / New
Diagram No:
14
Quantity:
2
Available to order (2-3 days delay)
'Loctite' 242e sealant, bracket and spacer fixing
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Screw, M8 x 20, blanks off clutch master cyl position
New
In stock
Split pin, 3/32" x 3/4"
New / New
Diagram No:
36
Quantity:
1
Available to order (2-3 days delay)
Setscrew, M6 x 16
New / New
Diagram No:
29
Quantity:
2
Available to order (2-3 days delay)
Screw, M8 x 25, Mounting bracket to bulkhead
New / New
Diagram No:
20
Quantity:
3
Available to order (2-3 days delay)
Screw, M5 x 12, Supt bracket attach to pedal bracket
New / New
Diagram No:
18
Quantity:
2
Available to order (2-3 days delay)
Nut, hex, M6, cup retainer to bracket
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Washer, shakeproof, M6
New / New
Diagram No:
15
Quantity:
2
Available to order (2-3 days delay)
Washer, plain, M5, Cruise control unit to 'A' Post panel
New
Diagram No:
19
Quantity:
2
In stock
Washer, plain, M6, interlock cable to steering column
New
Available to order (2-3 days delay)
Washer, spring, M6, sensor attach to vertical link
New / New
Diagram No:
30
Quantity:
2
Available to order (2-3 days delay)
Washer, spring, M8, mtg brkt to upper mtg brkt & column
New / New
Diagram No:
21
Quantity:
3
Available to order (2-3 days delay)
Grubscrew, M6x8
New / New
Diagram No:
37
Quantity:
2
Available to order (2-3 days delay)
Clutch switch assembly
New / New
Diagram No:
40
Quantity:
1
Available to order (2-3 days delay)
Brake switch/cruise control switch
New / New
Diagram No:
39
Quantity:
1
Available to order (2-3 days delay)
Pedal and bearing assembly, clutch
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pedal box and pedals assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pedal and bearing assembly, brake
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Clutch stop assembly
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Thrust washer
New / New
Diagram No:
9
Quantity:
2
Available to order (2-3 days delay)
Pedal box and pedals assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pedal and bearing assembly, clutch
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Anchorage bracket, throttle cable
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
Rubber pad, pedals
New / New
Diagram No:
25
Quantity:
2
Available to order (2-3 days delay)
Accelerator cross shaft assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Facing pad, brake and clutch pedals
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Pivot pin, pedal assembly
New / New
Diagram No:
8
Quantity:
2
Available to order (2-3 days delay)
Accelerator pedal assembly
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
Plate bush, cross shaft
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Pedal and bearing assembly, brake
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pedal box assembly
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Accelerator cross shaft assembly
New / New
Diagram No:
38
Quantity:
1
Available to order (2-3 days delay)
Bracket, bush, accelerator pedal
New / New
Diagram No:
27
Quantity:
1
Available to order (2-3 days delay)
Bracket, brake switch
New / New
Diagram No:
17
Quantity:
2
Available to order (2-3 days delay)
Pivot pin, throttle cable
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Washer, plain 1/4" Baffle plate to valley plate
New / New
Diagram No:
35
Quantity:
1
Available to order (2-3 days delay)
