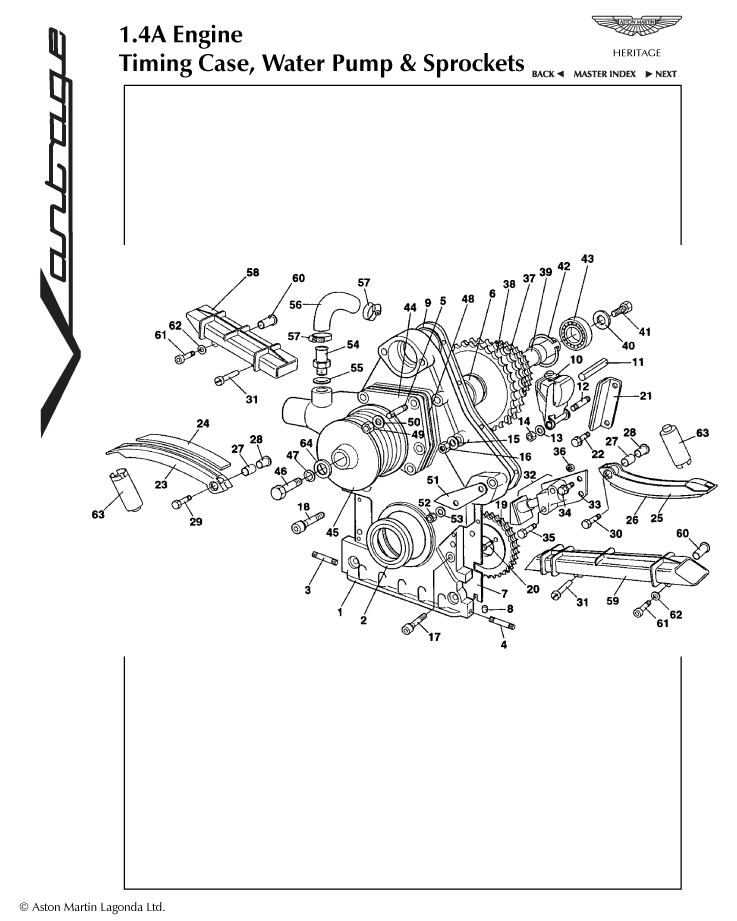

1.4a - Timing Case, Water Pump & Sprockets Parts
Chain guide, LH
New / New
Diagram No:
59
Quantity:
1
Available to order (2-3 days delay)
Chain guide, RH
New / New
Diagram No:
58
Quantity:
1
Available to order (2-3 days delay)
Distance tube
New / New
Diagram No:
60
Quantity:
2
Available to order (2-3 days delay)
Screw, socket head, 5/16" UNC x 1 3/4" long
New / New
Diagram No:
18
Quantity:
2
Available to order (2-3 days delay)
Capscrew, M6 x 35 Chain guide to cylinder head
New / New
Diagram No:
61
Quantity:
2
Available to order (2-3 days delay)
Helicoil, M8-1.25, cylinder block
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Oil seal
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Screw, M8-1.25 x 35, RH adjuster attach
New / New
Diagram No:
29
Quantity:
1
Available to order (2-3 days delay)
Setscrew, Durloc, M6 x 16
New / New
Diagram No:
22
Quantity:
2
Available to order (2-3 days delay)
Loctite 270 studlock, red
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Screw, Durloc, M8 x 25
New / New
Diagram No:
41
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, M6, interlock cable to steering column
New / New
Diagram No:
62
Quantity:
2
Available to order (2-3 days delay)
Hose, heater inlet to water valve
New / New
Diagram No:
56
Quantity:
1
Available to order (2-3 days delay)
Tensioner, primary chain
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Washer
New / New
Diagram No:
64
Quantity:
1
Available to order (2-3 days delay)
Joint - water pump to timing case
New / New
Diagram No:
48
Quantity:
1
Available to order (2-3 days delay)
Rubbing strip, primary chain
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Mounting bracket, chain tensioner
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
Sprocket, oil pump
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Joint, timing case to cylinder block
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Hose adaptor for use with later water valve
New / New
Diagram No:
54
Quantity:
1
Available to order (2-3 days delay)
Water seal, ceramic
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Self-aligning bearing
New / New
Diagram No:
43
Quantity:
1
Available to order (2-3 days delay)
Tension pin, 1/4" x 1 3/8" long
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Copper washer, 3/8"
New / New
Diagram No:
55
Quantity:
1
Available to order (2-3 days delay)
Loctite 290, spindle to impeller
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNF x 3.12" Timing cover attach
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Bearing, intermediate spindle
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Stud, 1/4" UNC/UNF x 2" long
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, 1/4" thin
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNF x 1.625", water pump
New / New
Diagram No:
5
Quantity:
5
Available to order (2-3 days delay)
"O" Ring
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNF
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Plug, 3/8" BSP Fitted into timing case
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Washer, spring, 3/8"
New / New
Diagram No:
47
Quantity:
1
Available to order (2-3 days delay)
Socket setscrew, 5/16" UNC x 7/8"
New / New
Diagram No:
17
Quantity:
2
Available to order (2-3 days delay)
Nut, Nyloc, 1/4" UNF, thin
New / New
Diagram No:
36
Quantity:
2
Available to order (2-3 days delay)
Chain adjuster
New / New
Diagram No:
63
Quantity:
2
Available to order (2-3 days delay)
Bolt, starter ring/flywheel/clutch
New / New
Diagram No:
46
Quantity:
1
Available to order (2-3 days delay)
Bolt, 1/4" UNF x 1 1/4", pivot bush
New / New
Diagram No:
35
Quantity:
2
Available to order (2-3 days delay)
Water pump and pulley assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Water pump and pulley assembly
New / New
Diagram No:
44
Quantity:
1
Available to order (2-3 days delay)
Water pump assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pulley, water pump
New / New
Diagram No:
45
Quantity:
1
Available to order (2-3 days delay)
Setscrew, Durloc, M6 x 8
New / New
Diagram No:
20
Quantity:
3
Available to order (2-3 days delay)
Front timing case assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Sprocket assembly, intermediate
New / New
Diagram No:
37
Quantity:
1
Available to order (2-3 days delay)
Timing pointer
New / New
Diagram No:
51
Quantity:
1
Available to order (2-3 days delay)
Chain tensioner shoe, LH
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
Lining, chain tensioner, LH
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
