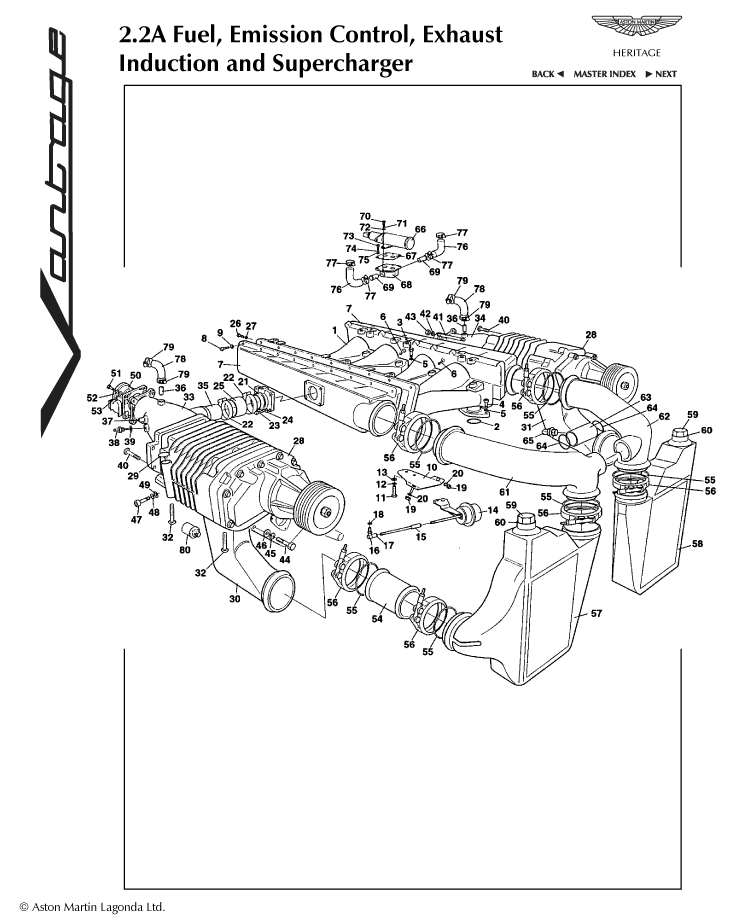

2.2a - Induction & Supercharger Parts
Supercharger and pulley assembly
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Charge air cooler assembly, LH
New / New
Diagram No:
58
Quantity:
1
Available to order (2-3 days delay)
Tube, inlet housing
New / New
Diagram No:
35
Quantity:
2
Available to order (2-3 days delay)
Oulet housing, RH
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Bypass actuator mounting bracket assembly
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Stub, mounting block
New / New
Diagram No:
69
Quantity:
2
Available to order (2-3 days delay)
Stub, idle air inlet
New / New
Diagram No:
36
Quantity:
2
Available to order (2-3 days delay)
'O' ring
New / New
Diagram No:
64
Quantity:
2
Available to order (2-3 days delay)
Throttle body
New / New
Diagram No:
50
Quantity:
2
Available to order (2-3 days delay)
Charge air cooler assembly, RH
New / New
Diagram No:
57
Quantity:
1
Available to order (2-3 days delay)
Inlet housing and rear supercharger mounting, RH
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
Actuator assembly
New / New
Diagram No:
14
Quantity:
2
Available to order (2-3 days delay)
Pipe, charge air cooler to plenum, LH
New / New
Diagram No:
62
Quantity:
1
Available to order (2-3 days delay)
Stub, interconnecting pipe
New / New
Diagram No:
63
Quantity:
1
Available to order (2-3 days delay)
Pipe, supercharger outlet to charge air cooler
New / New
Diagram No:
54
Quantity:
2
Available to order (2-3 days delay)
Bypass valve assembly
New / New
Diagram No:
21
Quantity:
2
Available to order (2-3 days delay)
Inlet manifold
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Stub, vacuum inlet housing
New / New
Diagram No:
37
Quantity:
2
Available to order (2-3 days delay)
Hose, air valve to pipe
New / New
Diagram No:
76
Quantity:
2
Available to order (2-3 days delay)
Supercharger and pulley assembly
New / New
Diagram No:
28
Quantity:
2
Available to order (2-3 days delay)
O ring, plenum base to cylinder heads
New / New
Diagram No:
2
Quantity:
8
Available to order (2-3 days delay)
Gasket, inlet air valve
New / New
Diagram No:
67
Quantity:
1
Available to order (2-3 days delay)
Hose, idle air pipe to inlet housing
New / New
Diagram No:
78
Quantity:
2
Available to order (2-3 days delay)
Inlet housing and rear supercharger mounting, LH
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Mounting block, air valve
New / New
Diagram No:
68
Quantity:
1
Available to order (2-3 days delay)
Rod assembly, bypass actuator
New / New
Diagram No:
15
Quantity:
2
Available to order (2-3 days delay)
'O' ring
New / New
Diagram No:
55
Quantity:
8
Available to order (2-3 days delay)
Clip
New / New
Diagram No:
56
Quantity:
8
Available to order (2-3 days delay)
Choke union assembly
New / New
Diagram No:
38
Quantity:
2
Available to order (2-3 days delay)
Pipe, charge air cooler to plenum, RH
New / New
Diagram No:
61
Quantity:
1
Available to order (2-3 days delay)
Plenum chamber
New / New
Diagram No:
7
Quantity:
2
Available to order (2-3 days delay)
Choke union assembly
New / New
Diagram No:
6
Quantity:
4
Available to order (2-3 days delay)
Hose, inlet housing to bypass valve
New / New
Diagram No:
25
Quantity:
2
Available to order (2-3 days delay)
Oulet housing, LH
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Clip, oetiker
New / New
Diagram No:
22
Quantity:
4
Available to order (2-3 days delay)
Capscrew, 1/4" UNC x 3/4"
New / New
Diagram No:
4
Quantity:
10
Available to order (2-3 days delay)
Blanking plate
New / New
Diagram No:
29
Quantity:
4
Available to order (2-3 days delay)
Washer, 3/4" BSP, Dowty
New / New
Diagram No:
60
Quantity:
2
Available to order (2-3 days delay)
Clip, hose
New / New
Diagram No:
79
Quantity:
4
Available to order (2-3 days delay)
Cap screw, M5x16, Bypass body to plenum
New / New
Diagram No:
8
Quantity:
36
Available to order (2-3 days delay)
Loctite, plenum chamber top to base
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Screw, button cap, M8x20
New / New
Diagram No:
32
Quantity:
8
Available to order (2-3 days delay)
Ball joint, 10-32 UNF, RH
New / New
Diagram No:
17
Quantity:
2
Available to order (2-3 days delay)
Loctite 648, trumpets to inlet manifolds
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Stud, M8x90
New / New
Diagram No:
41
Quantity:
1
Available to order (2-3 days delay)
Capscrew, M10 x 25
New / New
Diagram No:
47
Quantity:
2
Available to order (2-3 days delay)
Ball joint, 10-32 UNF, RH
New / New
Diagram No:
16
Quantity:
2
Available to order (2-3 days delay)
Bolt, M6 x 25, selector housing to adaptor plate
New / New
Diagram No:
51
Quantity:
8
Available to order (2-3 days delay)
Screw, M5 x 10
New / New
Diagram No:
26
Quantity:
4
Available to order (2-3 days delay)
Screw, M5 x 20, sender to adaptor plate
New / New
Diagram No:
70
Quantity:
2
Available to order (2-3 days delay)
