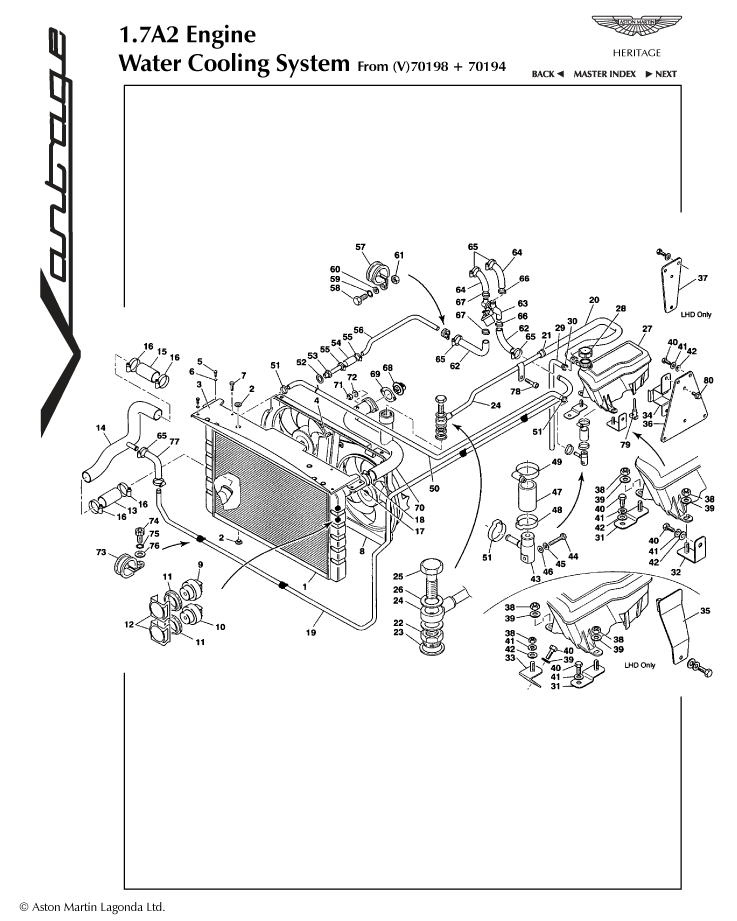

1.7a2 - Water Cooling System, VIN 70198 on Parts
Washer, 3/4" BSP, Dowty
New / New
Diagram No:
23
Quantity:
1
Available to order (2-3 days delay)
Screw, M8 x 30, flange head
New / New
Diagram No:
7
Quantity:
2
Available to order (2-3 days delay)
Screw, flg, M6 x 16, lower fixing rear
New / New
Diagram No:
5
Quantity:
4
Available to order (2-3 days delay)
Clip, hose
New / New
Diagram No:
55
Quantity:
2
Available to order (2-3 days delay)
'P' clip, 17 mm
New / New
Diagram No:
57
Quantity:
4
Available to order (2-3 days delay)
Clip, Oetiker 36, support elbow to expansion tank
New / New
Diagram No:
48
Quantity:
1
Available to order (2-3 days delay)
Nut, nyloc, M5, catch mechanism to drain channel
New / New
Diagram No:
61
Quantity:
4
Available to order (2-3 days delay)
Ear clamp - Hose attachment
New / New
Diagram No:
67
Quantity:
3
Available to order (2-3 days delay)
Bolt, M6 x 12, pressure regulator to bracket
New / New
Diagram No:
40
Quantity:
8
Available to order (2-3 days delay)
Hose clip, elbow to hose
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Hose clip, Oetiker
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Seal, front stoneguard, 1300 mm long
New / New
In stock
Bolt, M6 x 35, tee piece to chassis
New / New
Diagram No:
44
Quantity:
1
Available to order (2-3 days delay)
Grommet, condensor mounting
New / New
Diagram No:
2
Quantity:
4
Available to order (2-3 days delay)
Nut, Nyloc, M8, caliper mounting to De-dion beam
New / New
Diagram No:
35
Quantity:
2
Available to order (2-3 days delay)
Cap screw, M5x25, Bypass body to plenum
New / New
Diagram No:
78
Quantity:
1
Available to order (2-3 days delay)
'Loctite' 572 sealant, lower column to steering unit
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Washer, shakeproof, M6
New / New
Diagram No:
6
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, M5, Cruise control unit to 'A' Post panel
New / New
Diagram No:
59
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, M6, interlock cable to steering column
New / New
Diagram No:
38
Quantity:
2
Available to order (2-3 days delay)
Washer, spring, M6, sensor attach to vertical link
New / New
Diagram No:
39
Quantity:
2
Available to order (2-3 days delay)
Washer, spring, M5 boot latch, plate & sw bracket to chassis
New / New
Diagram No:
60
Quantity:
4
Available to order (2-3 days delay)
Label, coolant level, expansion tank
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Thermostat, 82C
New / New
Diagram No:
68
Quantity:
1
Available to order (2-3 days delay)
Hose , heater valve to heater
New / New
Diagram No:
64
Quantity:
2
Available to order (2-3 days delay)
Pipe, heater to bottom hose
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Hose, heater return pipe to bottom hose
New / New
Diagram No:
77
Quantity:
1
Available to order (2-3 days delay)
Heater valve
New / New
Diagram No:
63
Quantity:
1
Available to order (2-3 days delay)
Hose elbow, heater pipes to heater valve
New / New
Diagram No:
62
Quantity:
1
Available to order (2-3 days delay)
Leak inhibitor
New / New
Available to order (2-3 days delay)
Hose adaptor for use with later water valve
New / New
Diagram No:
53
Quantity:
1
Available to order (2-3 days delay)
Screw, M5 x 16, boot latch, plate & sw bracket to chassis
New / New
Diagram No:
58
Quantity:
4
Available to order (2-3 days delay)
Clip, 1 3/4"x2 1/4", heatshield fixing
New / New
Diagram No:
16
Quantity:
4
Available to order (2-3 days delay)
Copper washer, 3/8"
New / New
Diagram No:
52
Quantity:
1
Available to order (2-3 days delay)
Hose clip, 35mm - 50mm
New / New
Diagram No:
18
Quantity:
2
Available to order (2-3 days delay)
Clip, jubilee, support elbow to expansion tank
New / New
Diagram No:
49
Quantity:
1
Available to order (2-3 days delay)
Pipe, adaptor to heater inlet
New / New
Diagram No:
56
Quantity:
1
Available to order (2-3 days delay)
Boss, brass, threaded, cooling fan switches
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Support bracket assembly, vacuum reservoir
New / New
Diagram No:
37
Quantity:
1
Available to order (2-3 days delay)
Bracket assy, header tank support, front
New / New
Diagram No:
32
Quantity:
1
Available to order (2-3 days delay)
Hose, breather
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Switch, cooling fan - 100C Y12 (threaded)
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket assy, header tank support, rear
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
Radiator assembly, (threaded bosses)
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket assy, header tank support, rear
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Hose, breather
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket assy, expansion tank support
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Hose, support elbow to radiator
New / New
Diagram No:
50
Quantity:
1
Available to order (2-3 days delay)
Switch, cooling fan - 93C Y12 (threaded)
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hose, radiator to engine outlet
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
