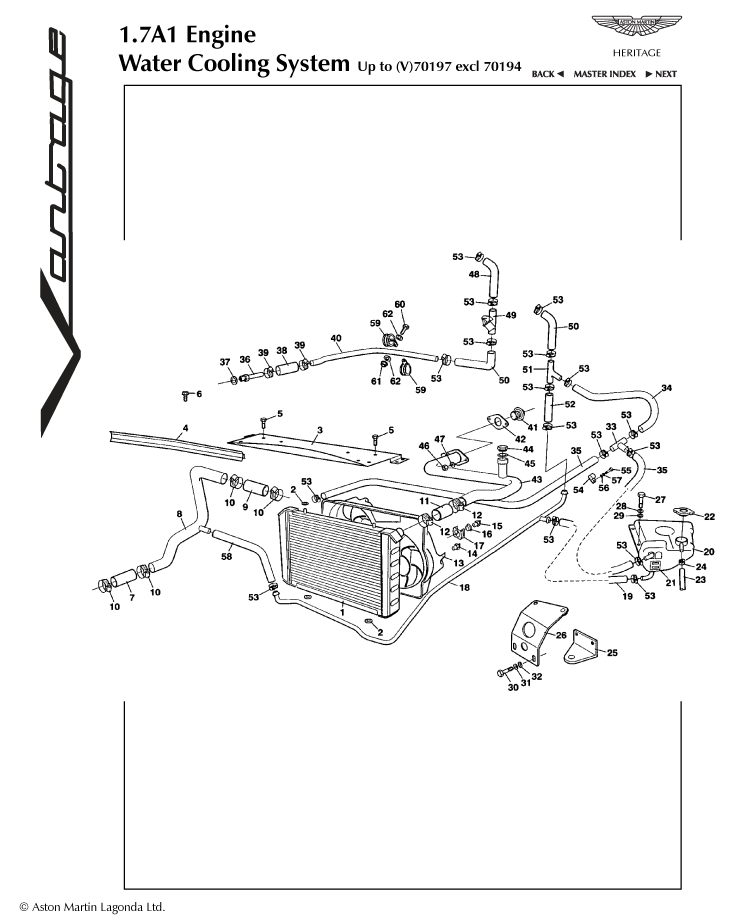

1.7a1 - Water Cooling System Parts
Washer, 3/4" BSP, Dowty
New / New
Diagram No:
45
Quantity:
1
Available to order (2-3 days delay)
Pipe retaining clip
New / New
Diagram No:
59
Quantity:
2
Available to order (2-3 days delay)
Screw, M8 x 30, flange head
New / New
Diagram No:
5
Quantity:
2
Available to order (2-3 days delay)
Screw, flg, M6 x 16, lower fixing rear
New / New
Diagram No:
6
Quantity:
2
Available to order (2-3 days delay)
Clip, hose
New / New
Diagram No:
39
Quantity:
2
Available to order (2-3 days delay)
P clip
New / New
Diagram No:
54
Quantity:
4
Available to order (2-3 days delay)
Nut, nyloc, M5, catch mechanism to drain channel
New / New
Diagram No:
61
Quantity:
1
Available to order (2-3 days delay)
Vacuum hose, tee to vacuum pipe, 11/32" diameter, 1ft long
New / New
Diagram No:
35
Quantity:
2
Available to order (2-3 days delay)
Bolt, M6 x 12, pressure regulator to bracket
New / New
Diagram No:
30
Quantity:
4
Available to order (2-3 days delay)
Hose clip, 8 - 16mm, bellows
New / New
Diagram No:
24
Quantity:
2
Available to order (2-3 days delay)
Seal, front stoneguard, 1300 mm long
New / New
In stock
Grommet, condensor mounting
New / New
Diagram No:
2
Quantity:
4
Available to order (2-3 days delay)
Bolt, M8x20
New / New
Diagram No:
27
Quantity:
3
Available to order (2-3 days delay)
Washer, plain, M5, Cruise control unit to 'A' Post panel
New / New
Diagram No:
56
Quantity:
6
Available to order (2-3 days delay)
Washer, plain, M6, interlock cable to steering column
New / New
Diagram No:
32
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, M8, assembly to boot floor
New / New
Diagram No:
29
Quantity:
3
Available to order (2-3 days delay)
Washer, spring, M6, sensor attach to vertical link
New / New
Diagram No:
31
Quantity:
4
Available to order (2-3 days delay)
Washer, spring, M8, mtg brkt to upper mtg brkt & column
New / New
Diagram No:
28
Quantity:
3
Available to order (2-3 days delay)
Washer, spring, M5 boot latch, plate & sw bracket to chassis
New / New
Diagram No:
57
Quantity:
6
Available to order (2-3 days delay)
Label, coolant level, expansion tank
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Thermostat, 82C
New / New
Diagram No:
41
Quantity:
1
Available to order (2-3 days delay)
Plug, 3/4" BSP Oil gallery ends
New / New
Diagram No:
44
Quantity:
1
Available to order (2-3 days delay)
Pipe, conn, heater return pipe to expansion tank
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pipe, heater to bottom hose
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hose, heater return pipe to bottom hose
New / New
Diagram No:
58
Quantity:
1
Available to order (2-3 days delay)
Air bleed pipe assy
New / New
Diagram No:
51
Quantity:
1
Available to order (2-3 days delay)
Pipe, heater to bottom hose
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Hose, heater outlet to bleed pipe
New / New
Diagram No:
50
Quantity:
1
Available to order (2-3 days delay)
Water valve
New / New
Diagram No:
49
Quantity:
1
Available to order (2-3 days delay)
Hose elbow, heater pipes to heater valve
New / New
Diagram No:
48
Quantity:
1
Available to order (2-3 days delay)
Hose adaptor for use with later water valve
New / New
Diagram No:
36
Quantity:
1
Available to order (2-3 days delay)
Screw, M5 x 16, boot latch, plate & sw bracket to chassis
New / New
Diagram No:
55
Quantity:
6
Available to order (2-3 days delay)
Clip, 1 3/4"x2 1/4", heatshield fixing
New / New
Diagram No:
10
Quantity:
4
Available to order (2-3 days delay)
Copper washer, 3/8"
New / New
Diagram No:
37
Quantity:
1
Available to order (2-3 days delay)
Hose clip, 35mm - 50mm
New / New
Diagram No:
12
Quantity:
2
Available to order (2-3 days delay)
Pipe, adaptor to heater inlet
New / New
Diagram No:
40
Quantity:
1
Available to order (2-3 days delay)
Tee piece, restrictor assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hose, heater return to expansion tank
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Hose, radiator to engine outlet
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Mounting bracket assy, expansion tank, outboard
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
Hose, water pump to interconnecting pipe
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Radiator Assembly
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Hose, radiator to interconnecting pipe
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Cooling fan and cowl assy
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Top plate assy, radiator
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Hose, heater stub pipe to tee piece
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Interconnecting pipe, water pump to radiator
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Hose, heater return to expansion tank, Volante
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Switch, cooling fan, 95C Virage saloons. Volante
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Mounting bracket assy, expansion tank, inboard
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
