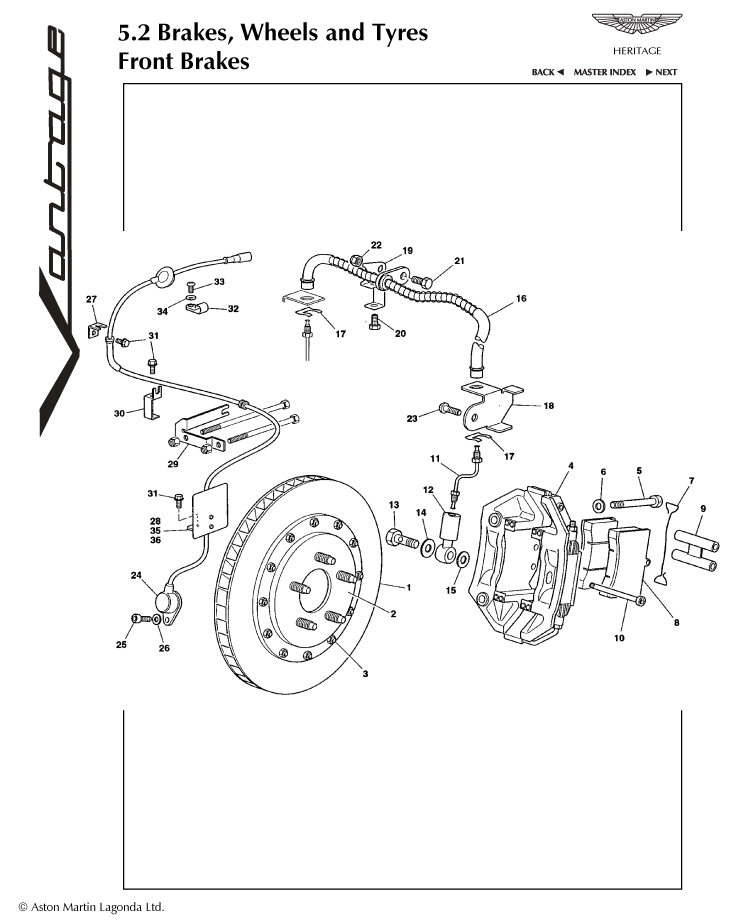

5.2 - Front Brakes Parts
Bolt, M10x16, btn skt
New / New
Diagram No:
23
Quantity:
2
Available to order (2-3 days delay)
Lockwire, stainless steel, 1 mm, caliper attachment
New / New
Diagram No:
7
Quantity:
A/R
Available to order (2-3 days delay)
Screw, flg, M6x10
New / New
Diagram No:
20
Quantity:
2
Available to order (2-3 days delay)
'P'clip, front sensor cable
New / New
Diagram No:
32
Quantity:
6
Available to order (2-3 days delay)
Capscrew, M6 x 16, sensor attach to vertical link
New / New
Diagram No:
25
Quantity:
2
Available to order (2-3 days delay)
Spirap, 1/2" OD, front sensor cable
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Screw, M8 x 20, blanks off clutch master cyl position
New / New
Diagram No:
21
Quantity:
2
Available to order (2-3 days delay)
Screw, M5 x 12, support tube assembly to 'A' Post
New / New
Diagram No:
33
Quantity:
6
Available to order (2-3 days delay)
Nut, Nyloc, M8, caliper mounting to De-dion beam
New / New
Diagram No:
22
Quantity:
2
Available to order (2-3 days delay)
Washer, plain, M12, Gearbox to bellhousing
New / New
Diagram No:
6
Quantity:
4
Available to order (2-3 days delay)
Washer, spring, M6, sensor attach to vertical link
New / New
Diagram No:
26
Quantity:
2
Available to order (2-3 days delay)
Washer, spring, M5 boot latch, plate & sw bracket to chassis
New / New
Diagram No:
34
Quantity:
6
Available to order (2-3 days delay)
Copper washer, Banjo to slave cylinder
New / New
Diagram No:
15
Quantity:
2
Available to order (2-3 days delay)
Holder, ABS grommet, top ball joint, LH
New / New
Diagram No:
29
Quantity:
1
Available to order (2-3 days delay)
Holder assembly, ABS grommet
New / New
Diagram No:
28
Quantity:
2
Available to order (2-3 days delay)
Holder, ABS grommet, top ball joint, RH
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Speed sensor, front
New / New
Diagram No:
24
Quantity:
2
Available to order (2-3 days delay)
Bracket, cable support, speed sensor
New / New
Diagram No:
27
Quantity:
2
Available to order (2-3 days delay)
Holder, ABS grommet, upper wishbone, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket
New / New
Diagram No:
35
Quantity:
2
Available to order (2-3 days delay)
Holder, ABS grommet, upper wishbone, LH
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Shield
New / New
Diagram No:
36
Quantity:
2
Available to order (2-3 days delay)
Banjo - straight - 64474287
New / New
Diagram No:
12
Quantity:
2
Available to order (2-3 days delay)
Banjo bolt, Banjo to slave cylinder
New / New
Diagram No:
13
Quantity:
2
Available to order (2-3 days delay)
Clip, brake hose
New / New
Diagram No:
17
Quantity:
4
Available to order (2-3 days delay)
Bracket, brake hose to vertical link, RH
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Bracket, brake hose to vertical link, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Brake pipe assy, caliper banjo to hose
New / New
Diagram No:
11
Quantity:
2
Available to order (2-3 days delay)
Bracket, brake hose to top suspension arm, RH
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Brake pipe assy, caliper banjo to hose
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Bracket, brake hose to top suspension arm, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Brake hose, front
New / New
Diagram No:
16
Quantity:
2
Available to order (2-3 days delay)
Front pad kit
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Caliper, front, RH
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
H spacer
New / New
Diagram No:
9
Quantity:
2
Available to order (2-3 days delay)
Cap screw
New / New
Diagram No:
10
Quantity:
4
Available to order (2-3 days delay)
Caliper, front, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bolt kit, front disc to mounting bell
New / New
Diagram No:
3
Quantity:
2
Available to order (2-3 days delay)
Capscrew
New / New
Diagram No:
5
Quantity:
4
Available to order (2-3 days delay)
Mounting bell, front disc
New / New
Diagram No:
2
Quantity:
2
Available to order (2-3 days delay)
Front disc, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Front disc, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Front pad kit
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Front disc, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Front disc, LH
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Bolt, M12x80
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Front brake kit
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Mounting bell, front disc
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Bolt kit, front disc to mounting bell
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Caliper, front, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
