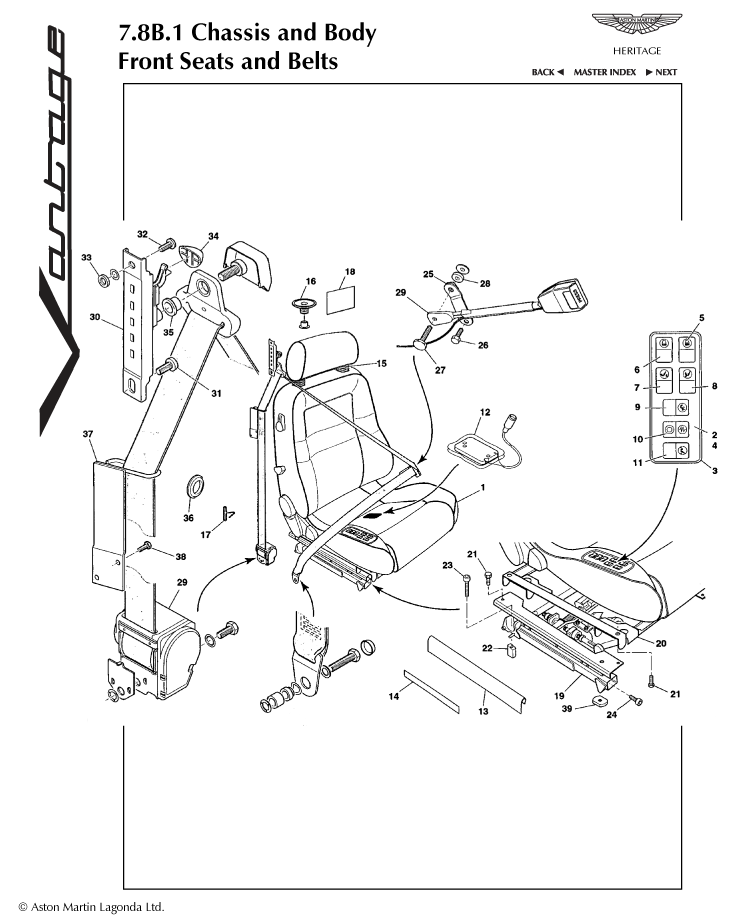

7.8b.1 - Front Seats & Belts Parts
Wire hook, map pocket elastic
New / New
Diagram No:
17
Quantity:
4
Available to order (2-3 days delay)
Screw, 7/16" UNF x 20
New / New
Diagram No:
27
Quantity:
2
Available to order (2-3 days delay)
Screw, 7/16" UNF x 16
New / New
Diagram No:
26
Quantity:
2
Available to order (2-3 days delay)
Screw, flg, M5x12, vacuum reservoir attach
New / New
Diagram No:
38
Quantity:
4
Available to order (2-3 days delay)
Screw, flg, M6x10
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Screw, torx hd, M10x25
New / New
Diagram No:
31
Quantity:
2
Available to order (2-3 days delay)
Adhesive, loctite 406
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Screw, btn hd, M8x25
New / New
Diagram No:
32
Quantity:
2
Available to order (2-3 days delay)
Capscrew, M10x55
New / New
Diagram No:
23
Quantity:
4
Available to order (2-3 days delay)
Capscrew, M8 x 20
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Screw, low head, M10x25
New / New
Diagram No:
24
Quantity:
8
Available to order (2-3 days delay)
Screw, M8 x 16, supt tube assy to upper column brkt
New / New
Diagram No:
21
Quantity:
16
Available to order (2-3 days delay)
Setscrew, M6 x 16
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Washer, shakeproof, M6
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Seat slide, non height rise, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Seat slide, non height rise, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Label, headrest
New / New
Diagram No:
18
Quantity:
-
Available to order (2-3 days delay)
Bracket assembly, reel mounting front
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Bolt cap
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Seat belt assembly, front
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Threaded block, seat mounting
New / New
Diagram No:
39
Quantity:
4
Available to order (2-3 days delay)
Pillar, loop cover
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Spacer, seat belt mounting, upper
New / New
Diagram No:
33
Quantity:
2
Available to order (2-3 days delay)
Slider knob
New / New
Diagram No:
34
Quantity:
2
Available to order (2-3 days delay)
Seat belt webbing guide assembly, RH
New / New
Diagram No:
37
Quantity:
1
Available to order (2-3 days delay)
Seat belt webbing guide assembly, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Shoulder anchorage assembly
New / New
Diagram No:
30
Quantity:
2
Available to order (2-3 days delay)
Shoulder spacer, upper seat belt anchorage
New / New
Diagram No:
35
Quantity:
2
Available to order (2-3 days delay)
Seat belt assembly, front
New / New
Diagram No:
29
Quantity:
2
Available to order (2-3 days delay)
Cover panel assembly, height rise mechanism, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Front seat, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Switch, fore/aft
New / New
Diagram No:
11
Quantity:
2
Available to order (2-3 days delay)
Front seat, complete, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Cover panel assembly, height rise mechanism, RH
New / New
Diagram No:
40
Quantity:
1
Available to order (2-3 days delay)
Front seat, complete, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Veneer switch panel
New / New
Diagram No:
2
Quantity:
2
Available to order (2-3 days delay)
Interface bracket assembly, front seat
New / New
Diagram No:
20
Quantity:
2
Available to order (2-3 days delay)
Front seat, complete, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Front seat, complete, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Six way unit
New / New
Diagram No:
19
Quantity:
2
Available to order (2-3 days delay)
Front seat, RH
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Interface bracket assembly, front seat, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spacer, seat mounting
New / New
Diagram No:
22
Quantity:
4
Available to order (2-3 days delay)
Retaining clip, hooked
New / New
Diagram No:
13
Quantity:
4
Available to order (2-3 days delay)
Front seat, complete, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Veneer switch panel
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Front seat head-restraint rubber bellows
New / New
Diagram No:
15
Quantity:
4
Available to order (2-3 days delay)
Interface bracket assembly, front seat, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket assembly, seat belt stalk
New / New
Diagram No:
25
Quantity:
2
Available to order (2-3 days delay)
Retaining clip, flat
New / New
Diagram No:
14
Quantity:
4
Available to order (2-3 days delay)
