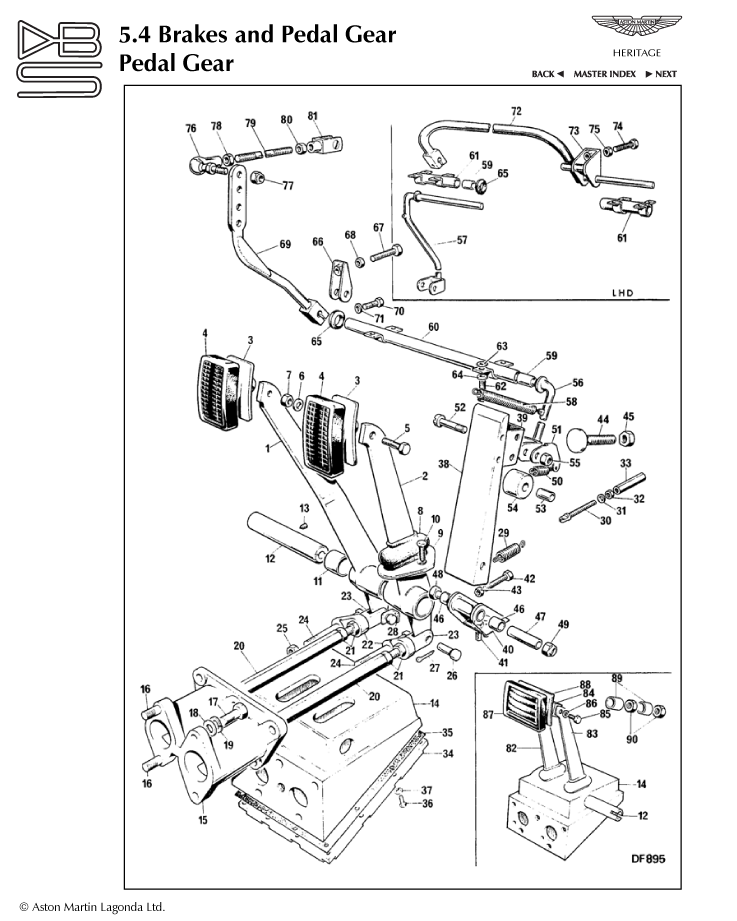

5.4 - Pedal Gear Parts
Bolt - 5/16" UNF x 1 1/8"
New / New
Diagram No:
5
Quantity:
2
Available to order (2-3 days delay)
Bolt - 1/4" UNF x 2"
New / New
Diagram No:
48
Quantity:
1
Available to order (2-3 days delay)
Bolt - 5/16" UNC x 1/2"
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Accelerator operating link
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pedal link bracket
New / New
Diagram No:
84
Quantity:
1
Available to order (2-3 days delay)
Pedal pad
New / New
Diagram No:
88
Quantity:
1
Available to order (2-3 days delay)
Rubber pad - pedal
New / New
Diagram No:
87
Quantity:
1
Available to order (2-3 days delay)
Blanking plate - mounting bracket
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spacer
New / New
Diagram No:
89
Quantity:
2
Available to order (2-3 days delay)
Setscrew - 1/4" UNF x 1/2"
New / New
Diagram No:
41
Quantity:
3
Available to order (2-3 days delay)
Locknut - 5/16" UNF
New / New
Diagram No:
32
Quantity:
2
Available to order (2-3 days delay)
Locknut - 5/16" UNF - RH
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Locknut - 5/16" UNF
New / New
Diagram No:
45
Quantity:
1
Available to order (2-3 days delay)
Setbolt - 3/8" UNF x 1-1/2"
New / New
Diagram No:
17
Quantity:
2
Available to order (2-3 days delay)
Setscrew - 5/16" UNF x 3/4"
New / New
Diagram No:
70
Quantity:
1
Available to order (2-3 days delay)
Locknut - 5/16" UNF
New / New
Diagram No:
68
Quantity:
1
Available to order (2-3 days delay)
Setbolt - 5/16" UNF x 1-1/8"
New / New
Diagram No:
62
Quantity:
4
Available to order (2-3 days delay)
Rubber washer - 1/4"
New / New
Diagram No:
31
Quantity:
2
Available to order (2-3 days delay)
Screw, PK - 1/4" UNC
New / New
Diagram No:
10
Quantity:
4
Available to order (2-3 days delay)
Screw - 2BA x 3/8"
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Setbolt - 2BA x 1/2"
New / New
Diagram No:
36
Quantity:
12
Available to order (2-3 days delay)
Nut, Nyloc - 2BA - thin
New / New
Diagram No:
77
Quantity:
1
Available to order (2-3 days delay)
Blanking grommet
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Fork end assembly, operating rod
New / New
Diagram No:
81
Quantity:
1
Available to order (2-3 days delay)
Locknut - 5/16" UNF - LH
New / New
Diagram No:
21
Quantity:
4
Available to order (2-3 days delay)
Socket setscrew - 2BA x 1/2"
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Stud - 5/16" UNC/UNF x 3.775"
New / New
Diagram No:
-
Quantity:
5
Available to order (2-3 days delay)
Split pin - link to door lock
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, 9/32" x 5/8" OD
New / New
Diagram No:
64
Quantity:
4
Available to order (2-3 days delay)
Grommet, main harness/inner wing
New / New
Diagram No:
65
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc, 1/4" UNF, thin
New / New
Diagram No:
49
Quantity:
1
Available to order (2-3 days delay)
Bush, pedal levers
New / New
Diagram No:
11
Quantity:
4
Available to order (2-3 days delay)
Bush
New / New
Diagram No:
59
Quantity:
2
Available to order (2-3 days delay)
Gasket
New / New
Diagram No:
35
Quantity:
1
Available to order (2-3 days delay)
Support Bracket - pedals
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Sealing piece
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Adjuster nut
New / New
Diagram No:
33
Quantity:
2
Available to order (2-3 days delay)
Mounting Bracket - master cylinders
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Two position pad
New / New
Diagram No:
39
Quantity:
1
Available to order (2-3 days delay)
Cover - pedal bracket
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Accelerator Pedal Assembly
New / New
Diagram No:
38
Quantity:
1
Available to order (2-3 days delay)
Pedal return stop
New / New
Diagram No:
22
Quantity:
2
Available to order (2-3 days delay)
Accelerator Lever Assembly
New / New
Diagram No:
57
Quantity:
1
Available to order (2-3 days delay)
Accelerator Lever Assembly
New / New
Diagram No:
56
Quantity:
1
Available to order (2-3 days delay)
Support tube assembly
New / New
Diagram No:
61
Quantity:
2
Available to order (2-3 days delay)
Accelerator lever support tube
New / New
Diagram No:
60
Quantity:
1
Available to order (2-3 days delay)
Transverse rod assembly
New / New
Diagram No:
72
Quantity:
1
Available to order (2-3 days delay)
Bearing bracket assembly
New / New
Diagram No:
40
Quantity:
1
Available to order (2-3 days delay)
Cover plate
New / New
Diagram No:
9
Quantity:
2
Available to order (2-3 days delay)
Operating rod
New / New
Diagram No:
79
Quantity:
1
Available to order (2-3 days delay)
