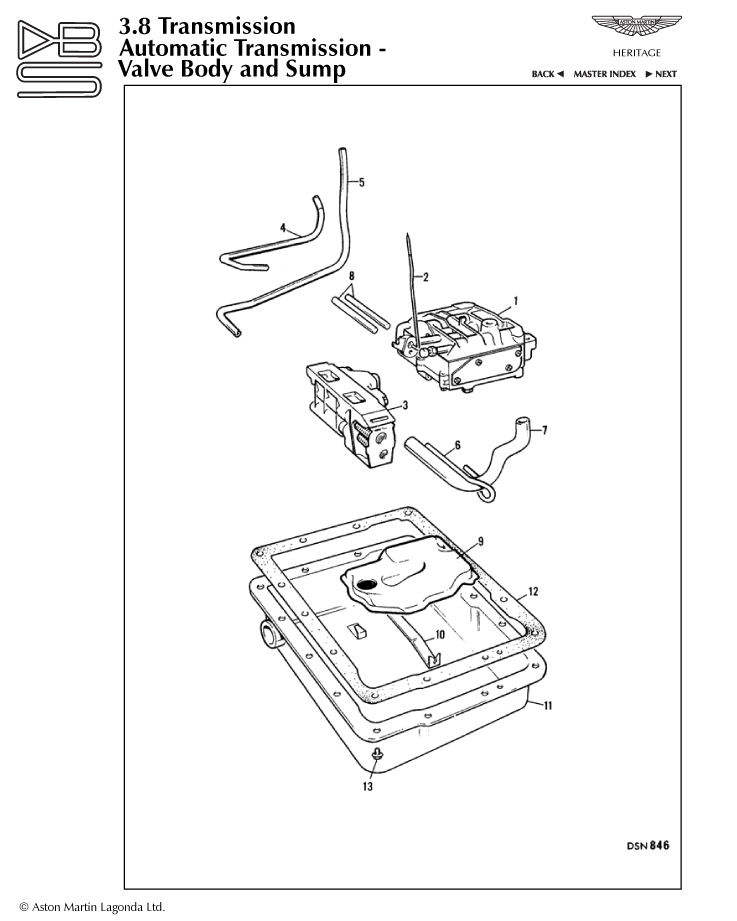

3.8 - Automatic Transmission, Valve Body & Sump Parts
Screw and lockwasher assembly
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Spring - secondary valve
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Screw and lockwasher assembly
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Spring - outer 2nd - 3rd valve
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spring - front servo release orifice valve
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Screw - cover plate
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Bolt - 1/4" x 2-1/2"
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Gasket
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Bolt and flatwasher assembly
New / New
Diagram No:
13
Quantity:
14
Available to order (2-3 days delay)
Oil pipe - front brake band
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Oil pipe - valve body to regulator control pressure
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Spacer - secondary valve
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Control rod - kickdown cable
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Screw and lockwasher assembly
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
Spring - inner end of modulator valve
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spring - 1st - 2nd shift valve
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Lockwasher
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Plate - retaining valve springs
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Seat - primary valve spring
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Screw - 5/16" x 7/8"
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Screw and lockwasher assembly
New / New
Diagram No:
-
Quantity:
15
Available to order (2-3 days delay)
Screw and lockwasher assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Throttle spring
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Leaf spring - throttle valve return
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spring - primary valve
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spring - inner compensator
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spring - transition valve
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spring - rear pump check valve
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spring - outer compensator
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spring - return - throttle cam
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spring - D1 - D2 control valve
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spring - service orifice control valve
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Oil Filter Assembly
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Spring - inner 2nd - 3rd valve
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Oil pipe - valve body to regulator
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Spring - outer 2nd - 3rd valve
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bolt - 1/4" x 1 5/8"
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
Oil pipe - rear pump to regulator
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Sump Assembly
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Valve Body Assembly
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Retaining clip
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Oil pipe - valve body to front servo
New / New
Diagram No:
8
Quantity:
2
Available to order (2-3 days delay)
Lockwasher - 1/4"
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Regulator Assembly
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
