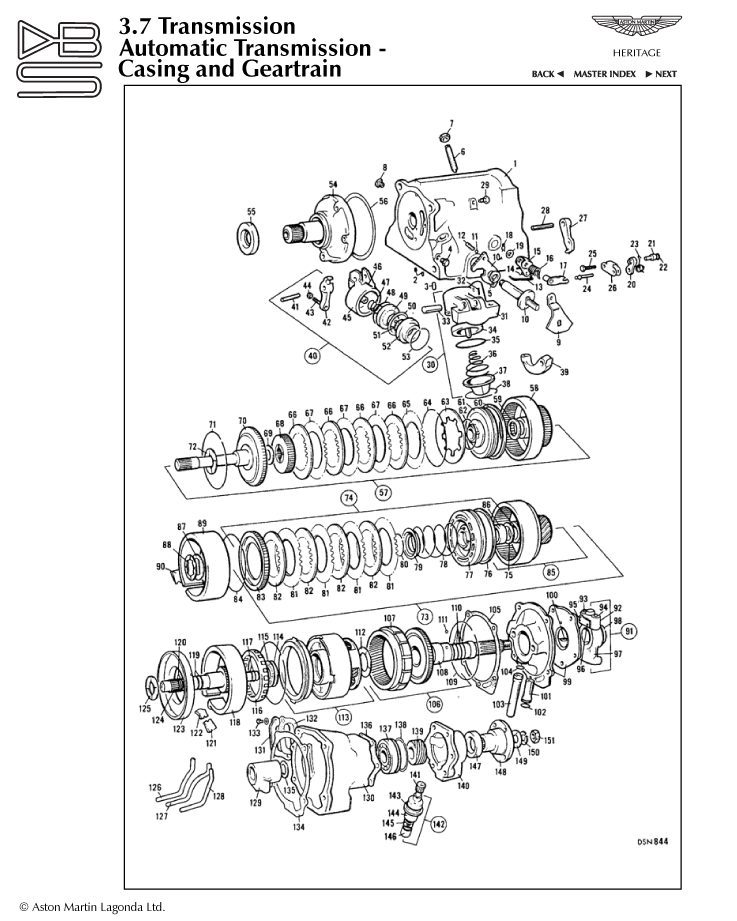

3.7 - Automatic Transmission, Casing & Geartrain Parts
Oil seal
New / New
Diagram No:
145
Quantity:
1
Available to order (2-3 days delay)
'O' ring
New / New
Diagram No:
144
Quantity:
1
Available to order (2-3 days delay)
Lockwasher - 7/16"
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Washer
New / New
Diagram No:
135
Quantity:
1
Available to order (2-3 days delay)
Extension Housing Assembly
New / New
Diagram No:
130
Quantity:
1
Available to order (2-3 days delay)
Oil collector tube - front
New / New
Diagram No:
128
Quantity:
1
Available to order (2-3 days delay)
Governor Assembly
New / New
Diagram No:
91
Quantity:
1
Available to order (2-3 days delay)
Mainshaft assembly
New / New
Diagram No:
108
Quantity:
1
Available to order (2-3 days delay)
Lockwasher
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Input shaft assembly
New / New
Diagram No:
70
Quantity:
1
Available to order (2-3 days delay)
Pressure plate
New / New
Diagram No:
65
Quantity:
1
Available to order (2-3 days delay)
Piston and ball assembly
New / New
Diagram No:
61
Quantity:
1
Available to order (2-3 days delay)
Snap ring
New / New
Diagram No:
71
Quantity:
1
Available to order (2-3 days delay)
Seat - rear clutch spring
New / New
Diagram No:
79
Quantity:
1
Available to order (2-3 days delay)
Needle bearing
New / New
Diagram No:
86
Quantity:
1
Available to order (2-3 days delay)
Sealing ring
New / New
Diagram No:
119
Quantity:
2
Available to order (2-3 days delay)
Locknut - lever to shaft
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Plain washer
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Retainer - toggle pin
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Toggle lever - parking brake pawl
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Bolt - 5/16" x 2"
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bearing
New / New
Diagram No:
137
Quantity:
1
Available to order (2-3 days delay)
Dowel pin
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Gasket
New / New
Diagram No:
134
Quantity:
1
Available to order (2-3 days delay)
Snap ring - bearing
New / New
Diagram No:
138
Quantity:
1
Available to order (2-3 days delay)
Oil collector tube - intermediate
New / New
Diagram No:
126
Quantity:
1
Available to order (2-3 days delay)
Lockwasher - 3/8"
New / New
Diagram No:
-
Quantity:
5
Available to order (2-3 days delay)
Steel ball - governor to mainshaft
New / New
Diagram No:
111
Quantity:
1
Available to order (2-3 days delay)
Oil collector tube - rear
New / New
Diagram No:
127
Quantity:
1
Available to order (2-3 days delay)
Ring gear - mainshaft
New / New
Diagram No:
107
Quantity:
1
Available to order (2-3 days delay)
Housing
New / New
Diagram No:
143
Quantity:
1
Available to order (2-3 days delay)
Snap ring - governor to mainshaft
New / New
Diagram No:
98
Quantity:
1
Available to order (2-3 days delay)
Planetary Gears and Rear Drum Assembly
New / New
Diagram No:
113
Quantity:
1
Available to order (2-3 days delay)
Housing assembly - drive pinion
New / New
Diagram No:
142
Quantity:
1
Available to order (2-3 days delay)
Snap ring
New / New
Diagram No:
109
Quantity:
1
Available to order (2-3 days delay)
Thrust washer
New / New
Diagram No:
72
Quantity:
1
Available to order (2-3 days delay)
One-Way Clutch Assembly
New / New
Diagram No:
116
Quantity:
1
Available to order (2-3 days delay)
Clutch plate - inner
New / New
Diagram No:
66
Quantity:
4
Available to order (2-3 days delay)
Thrust washer
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Sealing ring, outer
New / New
Diagram No:
60
Quantity:
1
Available to order (2-3 days delay)
Thrust washer
New / New
Diagram No:
87
Quantity:
1
Available to order (2-3 days delay)
Clutch plate - outer
New / New
Diagram No:
67
Quantity:
3
Available to order (2-3 days delay)
Snap ring - rear clutch spring
New / New
Diagram No:
80
Quantity:
1
Available to order (2-3 days delay)
Split ring
New / New
Diagram No:
62
Quantity:
1
Available to order (2-3 days delay)
Screw
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Thrust washer
New / New
Diagram No:
88
Quantity:
1
Available to order (2-3 days delay)
Sealing ring - inner
New / New
Diagram No:
75
Quantity:
1
Available to order (2-3 days delay)
Bolt - 3/8" x 1-1/4"
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Bolt - 7/16" x 1-7/8"
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Gasket
New / New
Diagram No:
105
Quantity:
1
Available to order (2-3 days delay)
