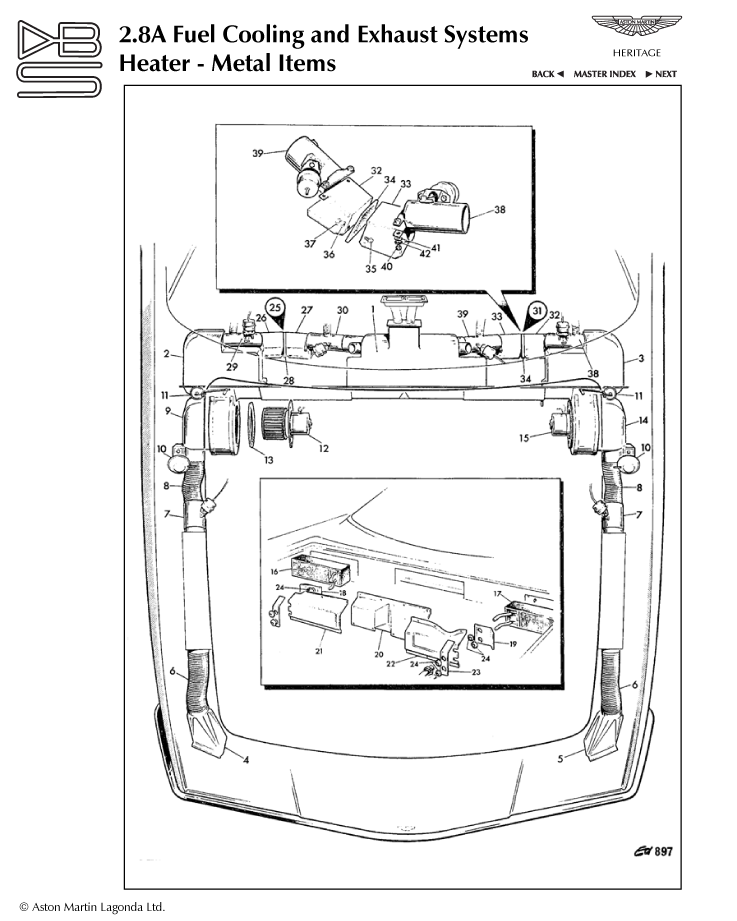

2.8a - Heater, Metal Items Parts
Screw - No.10 x 5/8"
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Nut, Nyloc - No.10
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Seal - Black air drying Neoprene
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Adhesive - Holdrite RB4330
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Grommet retaining plate
New / New
Diagram No:
23
Quantity:
2
Available to order (2-3 days delay)
Air intake ducting - LH
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Heater Matrix Assembly - RH
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Drain tube - short - RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Blower Motor Casing Assembly - RH
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Valve Assembly - ambient air inlet
New / New
Diagram No:
7
Quantity:
2
Available to order (2-3 days delay)
Cold air valve assembly - RH
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Airduct Panel - RH
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Airduct Panel - LH
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Blanking plate - deflector valve - LH
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Air duct - LH
New / New
Diagram No:
27
Quantity:
1
Available to order (2-3 days delay)
Cold air valve assembly - RH
New / New
Diagram No:
39
Quantity:
1
Available to order (2-3 days delay)
Air Outlet Duct Assembly - LH
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Air intake ducting - RH
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Hot air valve assembly - RH
New / New
Diagram No:
29
Quantity:
1
Available to order (2-3 days delay)
Gasket
New / New
Diagram No:
28
Quantity:
1
Available to order (2-3 days delay)
Heater Matrix Casing - RH
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Drain tube - long - LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Heater Matrix Assembly - LH
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Hose - ambient air valve to blower casing
New / New
Diagram No:
8
Quantity:
2
Available to order (2-3 days delay)
Vacuum actuator - 3-1/2" - air feed valve
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Airduct Panel - centre
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Heater Matrix Casing - LH
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Hot air valve assembly - RH
New / New
Diagram No:
38
Quantity:
1
Available to order (2-3 days delay)
Air intake trunking, 4" diameter, black
New / New
Diagram No:
6
Quantity:
2
Available to order (2-3 days delay)
Blower Motor Casing Assembly - LH
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Blanking plate - deflector valve - RH
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Gasket - blower motor
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Air duct - RH
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
Airduct Outlet Assembly - RH
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
Vacuum actuator - 1-1/2" - deflector valve
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Cold Air Casing Assembly
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Rubber grommet
New / New
Diagram No:
24
Quantity:
8
Available to order (2-3 days delay)
Washer, plain, 5/16"
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Washer, plain - No.10
New / New
Diagram No:
-
Quantity:
17
Available to order (2-3 days delay)
Screw, No. 8 x 1/2"
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Screw - No.10 UNF x 3/8"
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Screw, No. 10 - 32 UNF x 1/2"
New / New
Diagram No:
-
Quantity:
17
Available to order (2-3 days delay)
Washer, shakeproof, internal tooth, No. 10
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Washer, internal toothlock - No.10
New / New
Diagram No:
42
Quantity:
6
Available to order (2-3 days delay)
Washer, internal toothlock - No.10
New / New
Diagram No:
-
Quantity:
17
Available to order (2-3 days delay)
Screw - 1/4" UNF x 1/2"
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Nut, No. 10 - 32 UNF
New / New
Available to order (2-3 days delay)
Clip
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
