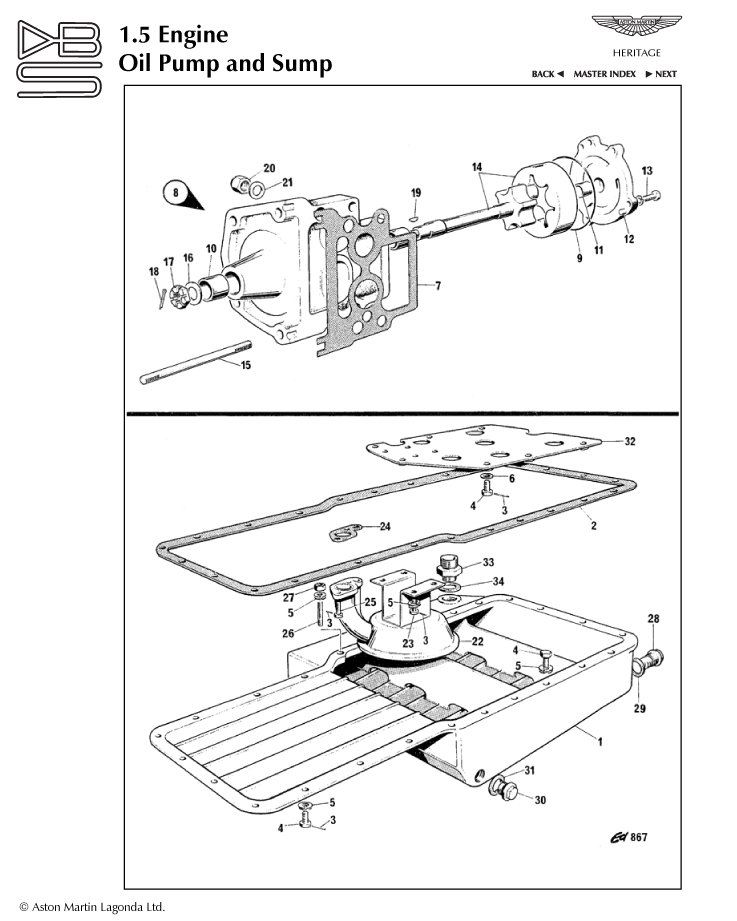

1.5 - Oil Pump and Sump Parts
Nut
New / New
Diagram No:
27
Quantity:
1
Available to order (2-3 days delay)
Washer - copper asbestos - 3/4" BSP
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Setscrew - 1/4" UNC x 3/8"
New / New
Diagram No:
23
Quantity:
4
Available to order (2-3 days delay)
Stud - 5/16" UNC/UNF
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
Socket setscrew - 5/16" UNC x 3/4"
New / New
Diagram No:
25
Quantity:
2
Available to order (2-3 days delay)
Adaptor - thermo bulb
New / New
Diagram No:
28
Quantity:
1
Available to order (2-3 days delay)
Stud - 5/16" UNC/UNF x 3.775"
New / New
Diagram No:
15
Quantity:
4
Available to order (2-3 days delay)
Setscrew, 5/16" UNC x 1 1/8"
New / New
Diagram No:
4
Quantity:
32
Available to order (2-3 days delay)
Oil drain plug - 1/2" BSP magnetic
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Sump Baffle Plate
New / New
Diagram No:
32
Quantity:
1
Available to order (2-3 days delay)
Oil Strainer Assembly
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Sump
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Joint - suction pipe flange
New / New
Diagram No:
24
Quantity:
1
Available to order (2-3 days delay)
Oil pump assembly
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
ADAPTOR SEALING WASHER
New / New
Diagram No:
29
Quantity:
1
In stock
Bush
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Joint, oil pump to cylinder block
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Shaft and rotor assembly
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Seal ring
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Bush
New / New
Diagram No:
10
Quantity:
2
Available to order (2-3 days delay)
Screw and lock washer
New / New
Diagram No:
13
Quantity:
5
Available to order (2-3 days delay)
Joint, sump to cylinder block
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Dowel pin
New / New
Diagram No:
12
Quantity:
2
Available to order (2-3 days delay)
Slotted nut, 1/2" diameter x 1"
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Washer, special
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc, 3/8" UNF cylinder head to block
New / New
Diagram No:
20
Quantity:
4
Available to order (2-3 days delay)
Locking Wire (16 SWG)
New / New
Diagram No:
3
Quantity:
A/R
Available to order (2-3 days delay)
Woodruff key - No. 9
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, 3/8", bellcrank lever to bracket
New / New
Diagram No:
21
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, 5/16, mtg rubber attach to rad lower panel
New / New
Diagram No:
6
Quantity:
10
Available to order (2-3 days delay)
Split pin, 3/32" diameter x 1"
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Washer - oil drain plug
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Union - 3/4" BSP - oil cooler return
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
Washer, double coil, 5/16"
New / New
Diagram No:
5
Quantity:
26
Available to order (2-3 days delay)
