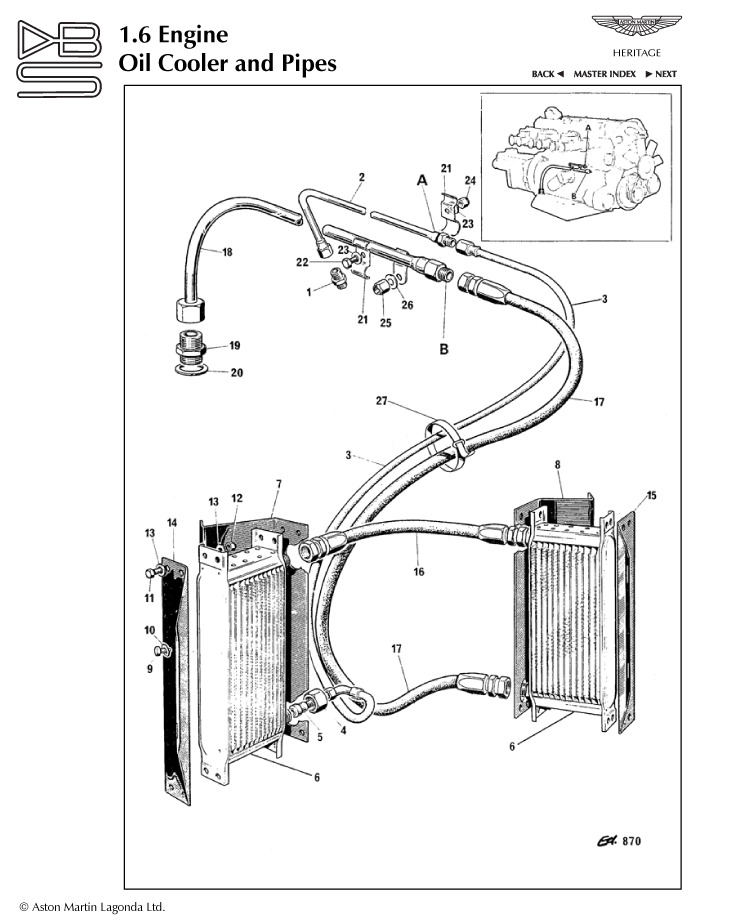

1.6 - Oil Cooler and Pipes Parts
Setscrew - 1/4" UNF x 5/8"
New / New
Diagram No:
11
Quantity:
8
Available to order (2-3 days delay)
Washer - copper asbestos - 3/4" BSP
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Setbolt - 2BA x 1/2"
New / New
Diagram No:
9
Quantity:
4
Available to order (2-3 days delay)
Setscrew, 2BA x 1/2"
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc, 1/4" UNF, thin
New / New
Diagram No:
12
Quantity:
8
Available to order (2-3 days delay)
Mounting bracket - outer - LH
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Oil Cooler Inlet Hose - Petroflex
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Mounting bracket - inner - LH
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Oil Cooler Outlet Hose Assembly
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Union nut - 1/2" BSP
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Adaptor
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Mounting bracket - inner - RH
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Return hose, oil cooler, straight, 20 1/2" long
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Oil Pipe Assembly - return to sump
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Mounting bracket - outer - RH
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Oil cooler, 11 row, 1/2" BSP
New / New
Diagram No:
6
Quantity:
2
Available to order (2-3 days delay)
Oil Pipe Assembly - oil cooler feed
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Clip, oil pipes
New / New
Diagram No:
21
Quantity:
2
Available to order (2-3 days delay)
Clip - soft aluminium
New / New
Diagram No:
27
Quantity:
A/R
Available to order (2-3 days delay)
Nut, Nyloc, 5/16" UNF - water pump to timing case
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
Plain washer, 3/16 in, chrome
New / New
Diagram No:
23
Quantity:
2
Available to order (2-3 days delay)
Nut, Nyloc, 2BA, thick
New / New
Diagram No:
24
Quantity:
1
Available to order (2-3 days delay)
Union, double.ended, 1/4" BSP
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Plain washer - 3/16 in.
New / New
Diagram No:
10
Quantity:
4
Available to order (2-3 days delay)
Washer, plain 1/4" Baffle plate to valley plate
New / New
Diagram No:
13
Quantity:
16
Available to order (2-3 days delay)
Washer, plain, 5/16, mtg rubber attach to rad lower panel
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
Union - 3/4" BSP - oil cooler return
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
