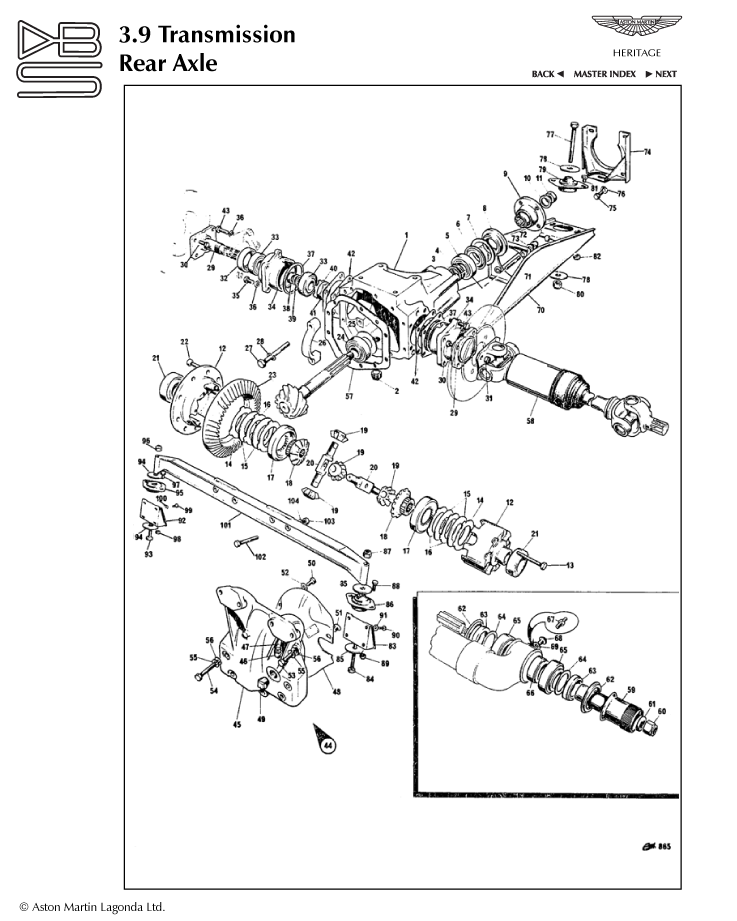

3.9 - Rear Axle Parts
Bolt - 7/16" UNF x 2-7/8"
New / New
Diagram No:
77
Quantity:
1
Available to order (2-3 days delay)
Bolt - 5/16" UNC x 1-3/4"
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bolt - 5/16" UNC x 3-1/2"
New / New
Diagram No:
54
Quantity:
1
Available to order (2-3 days delay)
Setscrew - 5/16" UNC x 1"
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
Bolt - 5/16" UNC x 3"
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
Setscrew - 1/4" UNC x 1/2"
New / New
Diagram No:
50
Quantity:
2
Available to order (2-3 days delay)
Bolt - 5/16" UNC x 3-1/4"
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bolt - 5/16" x 1-3/8"
New / New
Diagram No:
53
Quantity:
1
Available to order (2-3 days delay)
Bolt - 7/16" UNF x 3-1/4"
New / New
Diagram No:
102
Quantity:
4
Available to order (2-3 days delay)
Bolt - 7/16" UNF x 6"
New / New
Diagram No:
84
Quantity:
1
Available to order (2-3 days delay)
Setscrew - 5/16" UNF x 3/4"
New / New
Diagram No:
75
Quantity:
4
Available to order (2-3 days delay)
Drain plug and fibre washer
New / New
Diagram No:
69
Quantity:
2
Available to order (2-3 days delay)
Stud - 7/16" UNC/UNF x 2"
New / New
Diagram No:
71
Quantity:
4
Available to order (2-3 days delay)
Dowel
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Plug, brass, 1/8" BSP
New / New
Diagram No:
68
Quantity:
2
Available to order (2-3 days delay)
Nut, Nyloc - 3/4" UNF
New / New
Diagram No:
60
Quantity:
2
Available to order (2-3 days delay)
Nut, Nyloc, 7/16" UNF, gearbox to cylinder block
New / New
Diagram No:
72
Quantity:
4
Available to order (2-3 days delay)
Breather pipe assembly
New / New
Diagram No:
47
Quantity:
1
Available to order (2-3 days delay)
Spacer - 0.702" (14.831mm) Code No.12
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Spacer - 0.687" (14.450mm) Code No.27
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Rear Cover Sub-Assembly
New / New
Diagram No:
44
Quantity:
1
Available to order (2-3 days delay)
Spacer - 0.711" (15.060mm) Code No.3
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Spacer - 0.696" (14.678mm) Code No.18
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Spacer - 0.681" (14.297mm) Code No.33
New / New
Diagram No:
66
Quantity:
2
Available to order (2-3 days delay)
Drive Unit Assembly - 3.73:1 with Powr.Lok
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spacer - 0.705" (14.907mm) Code No.9
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Spacer - 0.690" (14.526mm) Code No.24
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Nut
New / New
Diagram No:
32
Quantity:
2
Available to order (2-3 days delay)
Grit shield assembly
New / New
Diagram No:
62
Quantity:
4
Available to order (2-3 days delay)
Spacer - 0.708" (14.984mm) Code No.6
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Spacer - 0.714" (15.136mm) Code No.0
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Spacer - 0.693" (14.602mm) Code No.21
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Spacer - 0.699" (14.755mm) Code No.15
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Spacer - 0.684" (14.374mm) Code No.30
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Side gear
New / New
Diagram No:
18
Quantity:
2
Available to order (2-3 days delay)
Shim - .005"
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
'O' ring
New / New
Diagram No:
37
Quantity:
2
Available to order (2-3 days delay)
Shim - .010"
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Lockwasher
New / New
Diagram No:
36
Quantity:
10
Available to order (2-3 days delay)
Bearing spacer
New / New
Diagram No:
38
Quantity:
2
Available to order (2-3 days delay)
Shim - .003"
New / New
Diagram No:
39
Quantity:
A/R
Available to order (2-3 days delay)
Halfshaft
New / New
Diagram No:
29
Quantity:
2
Available to order (2-3 days delay)
Housing
New / New
Diagram No:
34
Quantity:
2
Available to order (2-3 days delay)
Shim - .010"
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Friction plate
New / New
Diagram No:
14
Quantity:
2
Available to order (2-3 days delay)
Pinion oil slinger
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Shim - .030"
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Gear carrier assembly
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Tab washer
New / New
Diagram No:
40
Quantity:
2
Available to order (2-3 days delay)
Beam Assembly
New / New
Diagram No:
101
Quantity:
1
Available to order (2-3 days delay)
