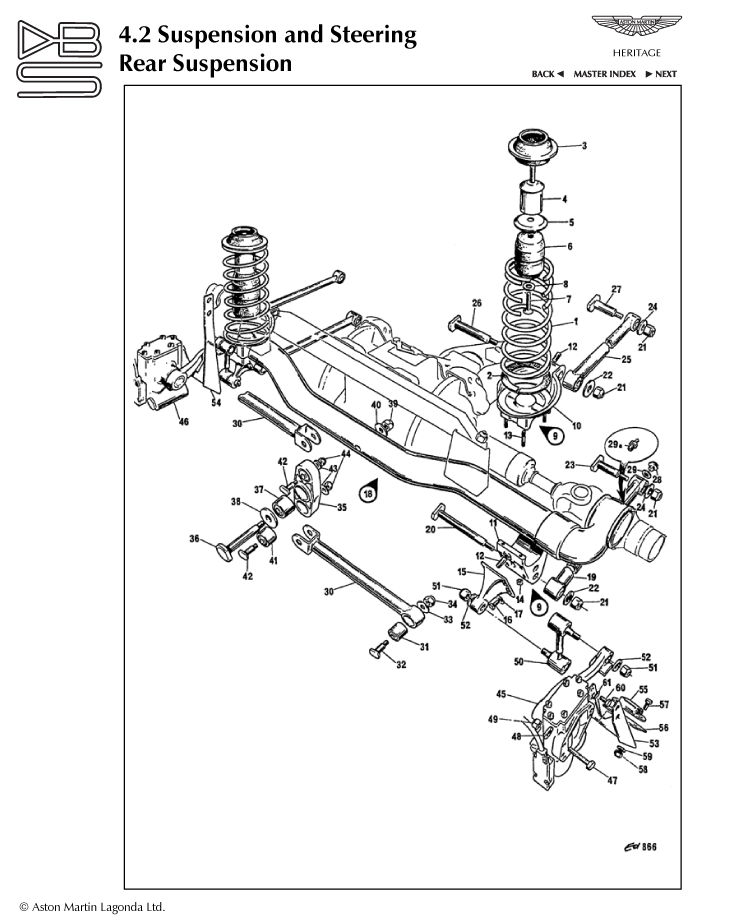

4.2 - Rear Suspension Parts
Bolt, clutch/flywheel/starter ring
New / New
Diagram No:
60
Quantity:
4
Available to order (2-3 days delay)
Bolt - 3/8" UNF
New / New
Diagram No:
47
Quantity:
8
Available to order (2-3 days delay)
Bolt - 1/4" UNF x 7/8"
New / New
Diagram No:
57
Quantity:
4
Available to order (2-3 days delay)
Drain plug and fibre washer
New / New
Diagram No:
28
Quantity:
2
Available to order (2-3 days delay)
Screw - 3/8" UNF x 1-3/4"
New / New
Diagram No:
7
Quantity:
2
Available to order (2-3 days delay)
Stud
New / New
Diagram No:
13
Quantity:
8
Available to order (2-3 days delay)
Pin
New / New
Diagram No:
12
Quantity:
4
Available to order (2-3 days delay)
Nut, Nyloc, 1/2" UNF, thin
New / New
Diagram No:
21
Quantity:
8
Available to order (2-3 days delay)
Special washer, 1/2"
New / New
Diagram No:
22
Quantity:
4
Available to order (2-3 days delay)
Nut, Clevloc, 7/16" UNF, gearbox to cylinder block
New / New
Diagram No:
51
Quantity:
4
Available to order (2-3 days delay)
Cup - bump stop
New / New
Diagram No:
5
Quantity:
2
Available to order (2-3 days delay)
Rubber buffer
New / New
Diagram No:
55
Quantity:
2
Available to order (2-3 days delay)
Shock Absorber - Selectaride - RH (blue spot)
New / New
Diagram No:
45
Quantity:
1
Available to order (2-3 days delay)
Rubber spring - Aeon
New / New
Diagram No:
6
Quantity:
2
Available to order (2-3 days delay)
Rebound stop bracket - LH
New / New
Diagram No:
54
Quantity:
1
Available to order (2-3 days delay)
Shock Absorber - Selectaride - LH (blue spot)
New / New
Diagram No:
46
Quantity:
1
Available to order (2-3 days delay)
Washer
New / New
Diagram No:
8
Quantity:
2
Available to order (2-3 days delay)
Rebound stop bracket - RH
New / New
Diagram No:
53
Quantity:
1
Available to order (2-3 days delay)
Packing piece
New / New
Diagram No:
56
Quantity:
2
Available to order (2-3 days delay)
Spring Anchor Bracket Assembly
New / New
Diagram No:
9
Quantity:
2
Available to order (2-3 days delay)
Bump stop bracket assembly
New / New
Diagram No:
4
Quantity:
2
Available to order (2-3 days delay)
Retaining cup
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Link assembly - shock absorber
New / New
Diagram No:
50
Quantity:
2
Available to order (2-3 days delay)
Bolt - radius arm to axle
New / New
Diagram No:
20
Quantity:
2
Available to order (2-3 days delay)
Watts Link Assembly
New / New
Diagram No:
30
Quantity:
2
Available to order (2-3 days delay)
Pin - swinging link
New / New
Diagram No:
36
Quantity:
1
Available to order (2-3 days delay)
Lower clamp
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Shock absorber bracket
New / New
Diagram No:
15
Quantity:
2
Available to order (2-3 days delay)
Swinging Link
New / New
Diagram No:
35
Quantity:
1
Available to order (2-3 days delay)
Bolt, Watts link to frame, 2.2" long
New / New
Diagram No:
32
Quantity:
2
Available to order (2-3 days delay)
Axle beam, sub assembly
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Bolt - radius arm to axle
New / New
Diagram No:
26
Quantity:
2
Available to order (2-3 days delay)
Nut - 3/8" UNF
New / New
Diagram No:
14
Quantity:
8
Available to order (2-3 days delay)
Road Spring
New / New
Diagram No:
1
Quantity:
2
Available to order (2-3 days delay)
Radius Arm Assembly - upper
New / New
Diagram No:
25
Quantity:
2
Available to order (2-3 days delay)
Radius Arm Assembly - lower
New / New
Diagram No:
19
Quantity:
2
Available to order (2-3 days delay)
Bolt - 3/8" UNC x 3/4"
New / New
Diagram No:
16
Quantity:
8
Available to order (2-3 days delay)
Washer
New / New
Diagram No:
38
Quantity:
1
Available to order (2-3 days delay)
Bush - swinging link - centre
New / New
Diagram No:
37
Quantity:
1
Available to order (2-3 days delay)
Insulating ring
New / New
Diagram No:
2
Quantity:
2
Available to order (2-3 days delay)
Bush - Watts link to swinging link
New / New
Diagram No:
41
Quantity:
1
In stock
Bolt - Watts link to swinging link
New / New
Diagram No:
42
Quantity:
2
Available to order (2-3 days delay)
Bolt - radius arm to frame
New / New
Diagram No:
23
Quantity:
2
Available to order (2-3 days delay)
REAR SUSPENSION WATTS LINK BUSH
New / New
In stock
Metacone coil spring insulator
New / New
Diagram No:
3
Quantity:
2
Available to order (2-3 days delay)
Nut, Nyloc - 3/8" UNF - thin
New / New
Diagram No:
44
Quantity:
2
Available to order (2-3 days delay)
Nut, Nyloc, 3/8" UNF cylinder head to block
New / New
Diagram No:
49
Quantity:
8
Available to order (2-3 days delay)
Nut, Nyloc, 1/4" UNF, buffer fixing
New / New
Diagram No:
58
Quantity:
4
Available to order (2-3 days delay)
Washer, fibre, 1/8" BSP
New / New
Diagram No:
29
Quantity:
2
Available to order (2-3 days delay)
Washer, plain, 7/16" UNC, Adaptor ring to block
New / New
Diagram No:
52
Quantity:
4
Available to order (2-3 days delay)
