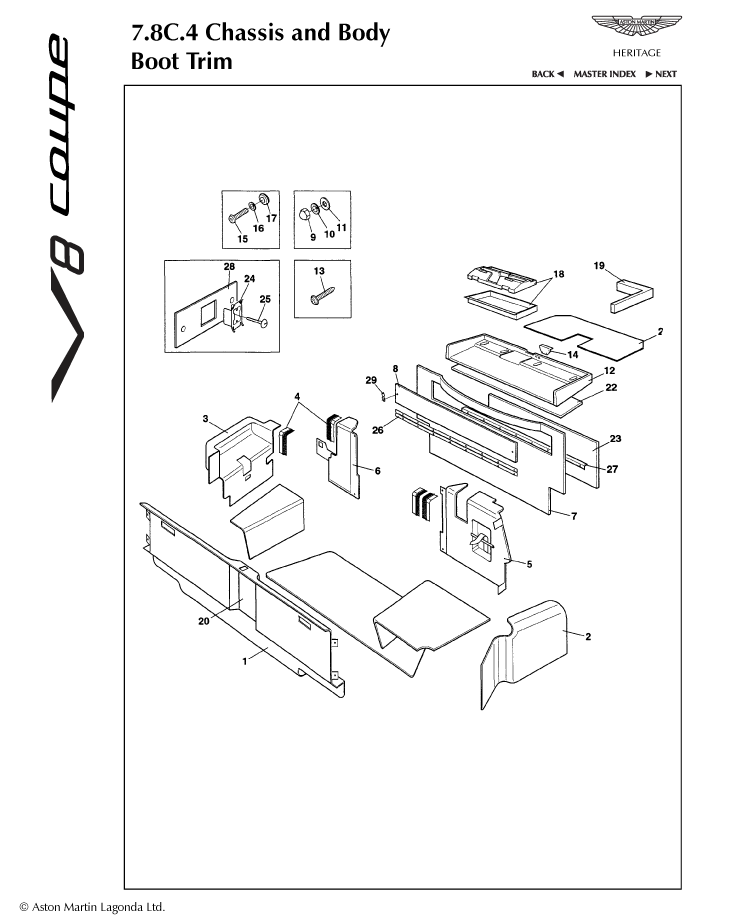

7.8c.4 - Boot Trim Parts
Trim retainer
New / New
Diagram No:
24
Quantity:
6
Available to order (2-3 days delay)
Trim, pin
New / New
Diagram No:
25
Quantity:
4
Available to order (2-3 days delay)
Lock, boot flap
New / New
Diagram No:
29
Quantity:
2
Available to order (2-3 days delay)
Nut, M4, domed
New / New
Diagram No:
9
Quantity:
10
Available to order (2-3 days delay)
Nut, hex, flg, M4
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Clamping plate
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Cam ring
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Turn button
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Grommet, sensor - inner wing
New / New
Diagram No:
17
Quantity:
2
Available to order (2-3 days delay)
Screw, M5 x 12, support tube assembly to 'A' Post
New / New
Diagram No:
15
Quantity:
2
Available to order (2-3 days delay)
Washer, shakeproof, M4,
New
Diagram No:
10
Quantity:
10
In stock
Washer, plain, M4, display carrier to gear shift surround
New / New
Diagram No:
11
Quantity:
10
Available to order (2-3 days delay)
Washer, spring, M5 boot latch, plate & sw bracket to chassis
New / New
Diagram No:
16
Quantity:
2
Available to order (2-3 days delay)
Damping panel, boot floor
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Foam damper, underside tool box
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Foam surround, tool box
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Hinge
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
Foam damper, face of fuel tank
New / New
Diagram No:
23
Quantity:
1
Available to order (2-3 days delay)
Bracket assembly, retaining tray
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Boot panel assembly, RH
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Foam tray, removable, jack/cannisters
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Shroud
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Boot panel assembly, front, RH, trimmed
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Reinforcement
New / New
Diagram No:
27
Quantity:
1
Available to order (2-3 days delay)
Brush seal assembly, boot
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Boot panel, tank, trimmed
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Boot panel, front, RH
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Boot panel, front, LH, trimmed
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Boot panel assembly rear, trimmed
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Boot panel assembly, LH
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Boot panel, tank, assembly
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Tool box and accessory tray
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Flap assembly, boot panel tank, trimmed
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Boot panel, front, LH
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Receptical carrier, boot panel
New / New
Diagram No:
28
Quantity:
1
Available to order (2-3 days delay)
Brush seal assembly, boot
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Boot panel assembly rear
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Boot panel assembly, RH, trimmed
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Flap assembly, boot panel tank
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Boot panel assembly, LH, trimmed
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Foam damper, underside parcel shelf
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Boot panel assembly rear
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Boot panel assembly rear, trimmed
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Plate assembly, retaining
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Leather strap
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Screw, No 10 x 19, Black Flange Head
New / New
Diagram No:
13
Quantity:
5
Available to order (2-3 days delay)
Washer, plain, No 6, chrome, Optional fitment
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Pop rivet, 1/8" x 0.40 csk hd
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
