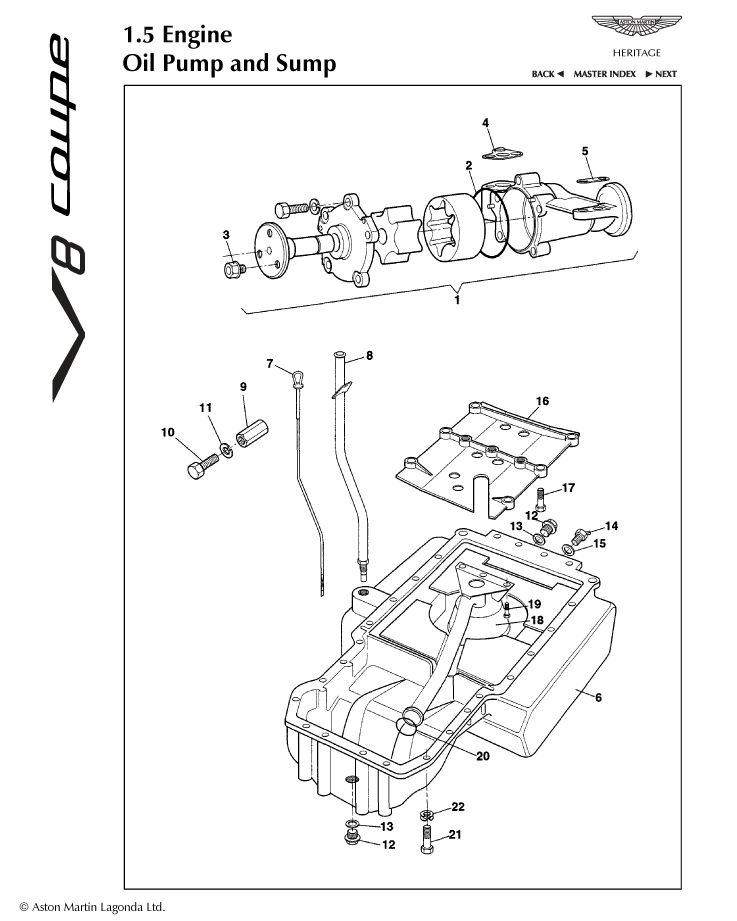

1.5 - Oil Pump & Sump Parts
Loctite, plenum chamber top to base
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Screw, 10-24 UNC x 1/2"
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Screw, Durloc, M8 x 30
New / New
Diagram No:
17
Quantity:
6
Available to order (2-3 days delay)
Washer, 13mm OD, special, Camshaft brg cap attach
New / New
Diagram No:
22
Quantity:
26
Available to order (2-3 days delay)
Setscrew, Durloc, M6 x 16
New / New
Diagram No:
19
Quantity:
3
Available to order (2-3 days delay)
"O" ring
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Washer, copper, drain plug
New / New
Diagram No:
13
Quantity:
2
Available to order (2-3 days delay)
"O" ring, 200-802
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Loctite Activator 7471
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
"O" ring
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Oil drian plug, 1/2" BSP, magnetic
New / New
Diagram No:
12
Quantity:
2
Available to order (2-3 days delay)
Nut, Nyloc, 5/16" UNF, oil pump to cylinder block
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Washer, spring, 5/16", mounting rubber, oil filter
New / New
Diagram No:
11
Quantity:
1
In stock
Setscrew, 5/16" UNF x 5/8" dipstick tube attach
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Setscrew, 5/16" UNC x 1", Slave cylinder attach
New / New
Diagram No:
-
Quantity:
14
Available to order (2-3 days delay)
Bolt, 5/16" UNC x 4 1/4" long
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Setscrew, 5/16" UNC x 1 1/8"
New / New
Diagram No:
21
Quantity:
8
Available to order (2-3 days delay)
Bolt, 5/16" UNC x 3 3/4" long
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Joint, oil pump mounting to cylinder block
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Dipstick tube assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Baffle, fixed, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Dipstick assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Dipstick tube assembly
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Baffle, fixed, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Sump, machined
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Joint, oil pump delivery to cylinder block
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Sump, machined
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Sump assembly
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Dipstick assembly
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Baffle assembly, flap hinged, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Setscrew, Durloc, M6 x 8
New / New
Diagram No:
3
Quantity:
3
Available to order (2-3 days delay)
Baffle plate, sump
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Spacer
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Baffle assembly, flap hinged, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Oil pump assembly
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Oil strainer and tube assembly
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Sender unit, water temperature
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Sealing washer, banjo
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, 5/16, mtg rubber attach to rad lower panel
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Blanking plug, 5/8" UNF
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
