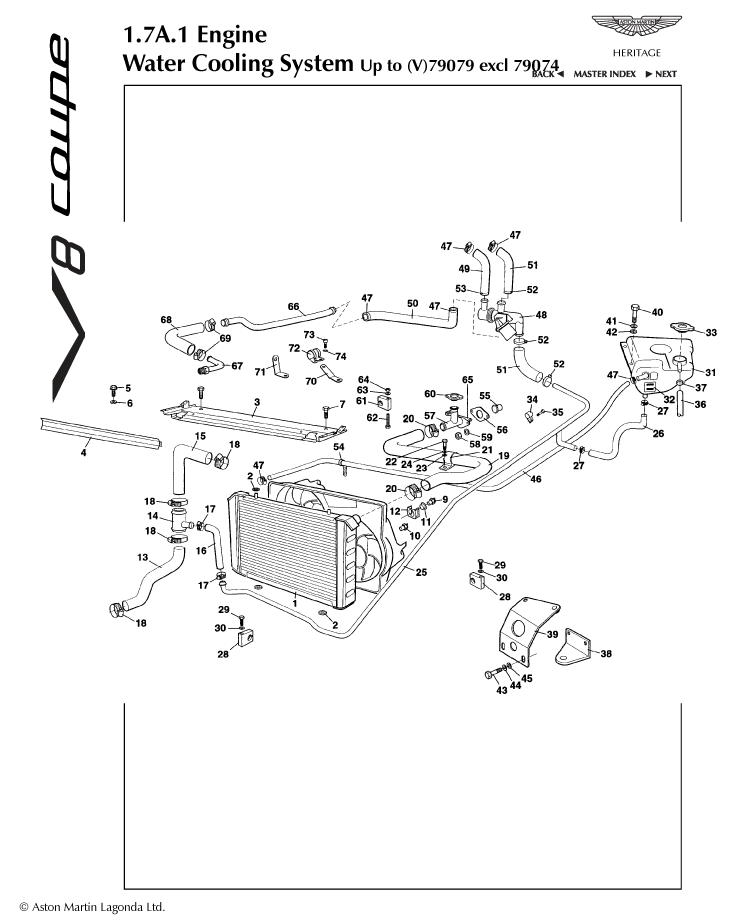

1.7a1 - Water Cooling System, Up to 79079 Parts
Hose, idle air pipe to inlet housing
New / New
Diagram No:
68
Quantity:
1
Available to order (2-3 days delay)
Screw, M8 x 30, flange head
New / New
Diagram No:
5
Quantity:
4
Available to order (2-3 days delay)
Cap screw, M5x16, Bypass body to plenum
New / New
Diagram No:
73
Quantity:
2
Available to order (2-3 days delay)
'P' clip
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Washer, sprf, M5
New / New
Diagram No:
74
Quantity:
2
Available to order (2-3 days delay)
Pipe mounting clamp, 15 mm Dia
New / New
Diagram No:
28
Quantity:
2
Available to order (2-3 days delay)
Screw, M6 x 50
New / New
Diagram No:
29
Quantity:
2
Available to order (2-3 days delay)
'P' clip, 17 mm
New / New
Diagram No:
34
Quantity:
7
Available to order (2-3 days delay)
Cable tie, 98mm x 22mm
New / New
Diagram No:
54
Quantity:
4
Available to order (2-3 days delay)
Nut, nyloc thin, M6, Isolator, oil filter
New / New
Diagram No:
64
Quantity:
1
Available to order (2-3 days delay)
'Loctite'
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Bolt, M6 x 25, selector housing to adaptor plate
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Ear clamp - Hose attachment
New / New
Diagram No:
52
Quantity:
3
Available to order (2-3 days delay)
Vacuum hose, tee to vacuum pipe, 11/32" diameter, 1ft long
New / New
Diagram No:
46
Quantity:
1
Available to order (2-3 days delay)
Bolt, M6 x 12, pressure regulator to bracket
New / New
Diagram No:
43
Quantity:
4
Available to order (2-3 days delay)
Hose clip, 8 - 16mm, bellows
New / New
Diagram No:
37
Quantity:
1
Available to order (2-3 days delay)
Vacuum hose, 7/32" ID x 3" long, valve to reducer
New / New
Diagram No:
36
Quantity:
A/R
Available to order (2-3 days delay)
Seal, front stoneguard, 1300 mm long
New / New
In stock
Grommet, condensor mounting
New / New
Diagram No:
2
Quantity:
4
Available to order (2-3 days delay)
Bolt, M6 x 40
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Screw, M5 x 16, Cruise control unit to 'A' Post panel
New / New
Diagram No:
35
Quantity:
7
Available to order (2-3 days delay)
Bolt, M8x20
New / New
Diagram No:
40
Quantity:
3
Available to order (2-3 days delay)
Washer, shakeproof, M6
New / New
Diagram No:
6
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, M6, interlock cable to steering column
New / New
Diagram No:
23
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, M8, assembly to boot floor
New / New
Diagram No:
42
Quantity:
3
Available to order (2-3 days delay)
Washer, spring, M6, sensor attach to vertical link
New / New
Diagram No:
24
Quantity:
1
Available to order (2-3 days delay)
Washer, spring, M8, mtg brkt to upper mtg brkt & column
New / New
Diagram No:
41
Quantity:
3
Available to order (2-3 days delay)
Label, coolant level, expansion tank
New / New
Diagram No:
32
Quantity:
1
Available to order (2-3 days delay)
Hose, heater inlet to water valve
New / New
Diagram No:
49
Quantity:
1
Available to order (2-3 days delay)
Thermostat, 82C
New / New
Diagram No:
55
Quantity:
1
Available to order (2-3 days delay)
Pipe, heater return
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
Heater valve
New / New
Diagram No:
48
Quantity:
1
Available to order (2-3 days delay)
Pipe, heater return
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hose elbow, heater pipes to heater valve
New / New
Diagram No:
50
Quantity:
1
Available to order (2-3 days delay)
Gasket
New / New
Diagram No:
56
Quantity:
1
Available to order (2-3 days delay)
Clip, 1 3/4"x2 1/4", heatshield fixing
New / New
Diagram No:
18
Quantity:
4
Available to order (2-3 days delay)
Hose, interconnecting, heater return, 130 mm
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hose clip, 35mm - 50mm
New / New
Diagram No:
20
Quantity:
2
Available to order (2-3 days delay)
Clip, Jubilee, 25 - 40mm
New / New
Diagram No:
17
Quantity:
2
Available to order (2-3 days delay)
Pipe cylinder block to heater inlet
New / New
Diagram No:
66
Quantity:
1
Available to order (2-3 days delay)
Elbow, 90
New / New
Diagram No:
67
Quantity:
1
Available to order (2-3 days delay)
Mounting bracket assy, expansion tank, outboard
New / New
Diagram No:
38
Quantity:
1
Available to order (2-3 days delay)
Radiator Assembly
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Top plate assy, radiator
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Cooling fan and cowl assy
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Hose, tee piece to water pump
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Hose, radiator to tee piece
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Elbow hose, Use to replace item 13
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Hose, outlet stub to radiator
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Hose, heater return to expansion tank, Volante
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
