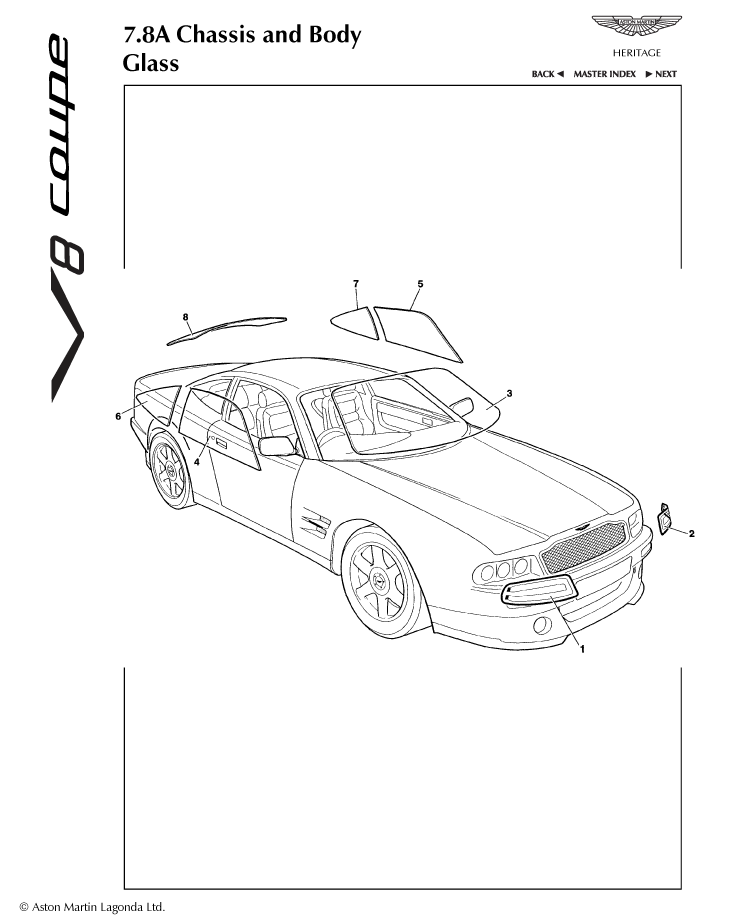

7.8a - Glass Parts
Adhesive, rubber attach
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Sikaflex, badge fixing
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Double sided adhestive tape
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Glass, door, LH
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Headlamp glazing, LH
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Windscreen glass, tinted, with shadeband, heated
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Glass, door, RH
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Glass, rear side, RH
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Rear screen, heated, tinted
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Glass, rear side, LH
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Headlamp glazing, RH
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Windscreen glass, tinted, with shadeband unheated
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bostik, bondflex 100HMA
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
