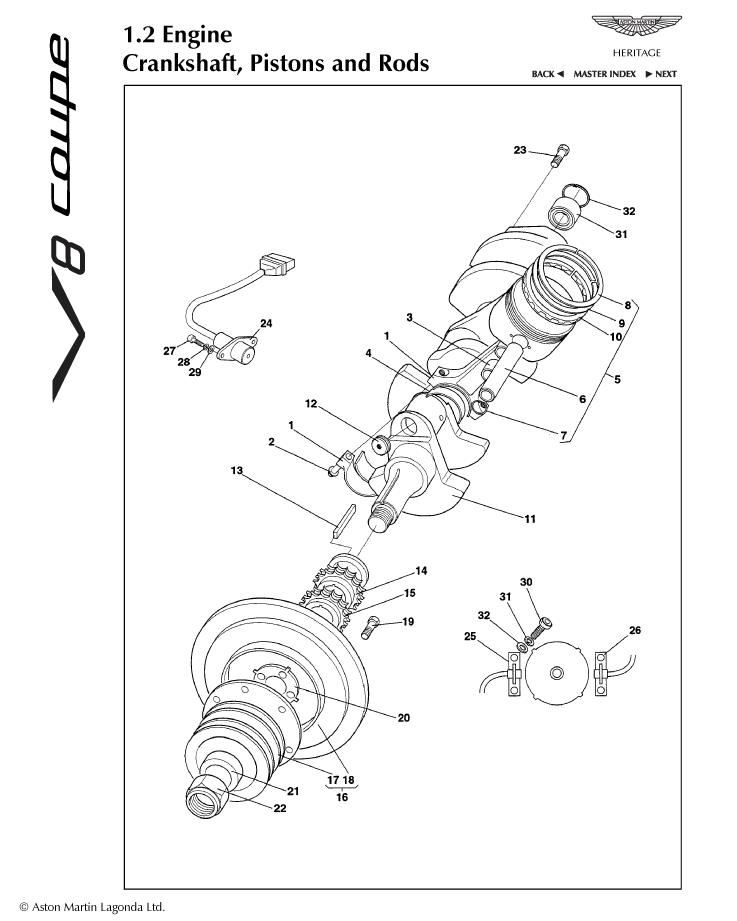

1.2 - Crankshaft, Pistons & Rods Parts
Sensor Bracket
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
Sensor, crankshaft RPM
New / New
Diagram No:
24
Quantity:
2
Available to order (2-3 days delay)
'O' Ring
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Screw, socket-head, M5 x 10
New / New
Diagram No:
27
Quantity:
4
Available to order (2-3 days delay)
Anti-scuff Paste
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Circlip
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
'Loctite' 242e sealant, bracket and spacer fixing
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Washer, plain, M5, Cruise control unit to 'A' Post panel
New / New
Diagram No:
29
Quantity:
4
Available to order (2-3 days delay)
Washer, spring, M5 boot latch, plate & sw bracket to chassis
New / New
Diagram No:
28
Quantity:
4
Available to order (2-3 days delay)
Crankshaft, 0.010" Undersize
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Crankshaft, 0.020" Undersize
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Connecting rod bolt
New / New
Diagram No:
2
Quantity:
16
Available to order (2-3 days delay)
Nut, special, crankshaft
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Washer, special, crankshaft
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Sprocket, timing
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Key, crankshaft
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Capscrew, M12 x 35, adaptor to crankshaft
New / New
Diagram No:
23
Quantity:
8
Available to order (2-3 days delay)
Hylomar 800B PH32M
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Socket setscrew, 1/4" UNC x 5/8"
New / New
Diagram No:
30
Quantity:
4
Available to order (2-3 days delay)
Torsional vibration damper
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Sprocket, oil pump
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Crankshaft, standard size
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Piston assembly, Grade A 9.5-1 compression ratio
New / New
Diagram No:
5
Quantity:
8
Available to order (2-3 days delay)
Small end bush
New / New
Diagram No:
3
Quantity:
8
Available to order (2-3 days delay)
Trigger Disc
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Circlip
New / New
Diagram No:
7
Quantity:
16
Available to order (2-3 days delay)
Sensor bracket
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
Compression Ring, Lower
New / New
Diagram No:
9
Quantity:
8
Available to order (2-3 days delay)
Crankshaft pulley, and torsional vibration damper assy
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Connecting rod assembly. (From mid March 1991)
New / New
Diagram No:
1
Quantity:
8
Available to order (2-3 days delay)
Piston assembly, Grade B 9.5-1 compression ratio
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Gudgeon pin
New / New
Diagram No:
6
Quantity:
8
Available to order (2-3 days delay)
Crankshaft pulley
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Big end bearing shell, half, standard size
New / New
Diagram No:
4
Quantity:
16
Available to order (2-3 days delay)
Big end bearing shell, half, 0.020" undersize
New / New
Diagram No:
-
Quantity:
16
Available to order (2-3 days delay)
Oil Control Ring
New / New
Diagram No:
10
Quantity:
8
Available to order (2-3 days delay)
Compression Ring, Top
New / New
Diagram No:
8
Quantity:
8
Available to order (2-3 days delay)
Plug, crankshaft, push-in type
New / New
Diagram No:
12
Quantity:
4
Available to order (2-3 days delay)
Big end bearing shell, half, 0.010" undersize
New / New
Diagram No:
-
Quantity:
16
Available to order (2-3 days delay)
Setscrew, 3/8" UNF x 3/4"
New / New
Diagram No:
19
Quantity:
6
Available to order (2-3 days delay)
Washer, spring, 1/4" Baffle plate to valley plate
New / New
Diagram No:
31
Quantity:
4
Available to order (2-3 days delay)
Washer, plain 1/4" Baffle plate to valley plate
New / New
Diagram No:
32
Quantity:
4
Available to order (2-3 days delay)
