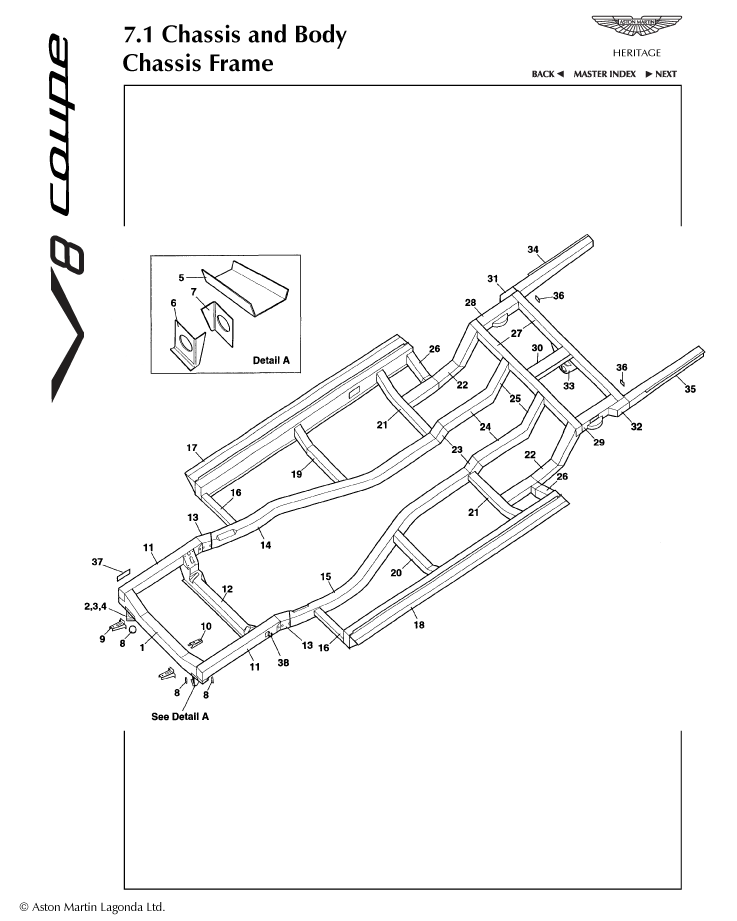

7.1 - Chassis Frame Parts
Upright assembly, rear bulkhead
New / New
Diagram No:
25
Quantity:
2
Available to order (2-3 days delay)
Longitudinal assembly, differential support
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Bracket assembly, anti roll bar mounting, RH
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Front longitudinal member assembly
New / New
Diagram No:
11
Quantity:
2
Available to order (2-3 days delay)
Bracket assembly, anti roll bar mounting, LH
New / New
Diagram No:
32
Quantity:
1
Available to order (2-3 days delay)
Front suspension crossmember assembly
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Front crossmember assembly
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Closing plate, longitudinal boot floor
New / New
Diagram No:
36
Quantity:
2
Available to order (2-3 days delay)
Tube, outrigger, sill front
New / New
Diagram No:
16
Quantity:
2
Available to order (2-3 days delay)
Rear outrigger assembly
New / New
Diagram No:
26
Quantity:
2
Available to order (2-3 days delay)
Rear outer longitudinal assembly
New / New
Diagram No:
22
Quantity:
2
Available to order (2-3 days delay)
Crossmember assembly, centre frame rear
New / New
Diagram No:
27
Quantity:
2
Available to order (2-3 days delay)
Sill assembly, LH
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Longitudinal assembly, spring pan rear, RH
New / New
Diagram No:
28
Quantity:
1
Available to order (2-3 days delay)
Longitudinal assembly, boot floor, LH
New / New
Diagram No:
35
Quantity:
1
Available to order (2-3 days delay)
Longitudinal assembly, spring pan rear, LH
New / New
Diagram No:
29
Quantity:
1
Available to order (2-3 days delay)
Sill assembly, RH
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Longitudinal assembly, boot floor, RH
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Bracket assembly, watts link mounting
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
Stamping plate, chassis
New / New
Diagram No:
37
Quantity:
1
Available to order (2-3 days delay)
Mounting plate front - RH
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Outrigger assembly, front - LH
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Mounting plate front - LH
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Centre longitudinal assembly - RH
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Longitudinal, rear seat, rear
New / New
Diagram No:
24
Quantity:
2
Available to order (2-3 days delay)
Longitudinal, rear seat, front
New / New
Diagram No:
23
Quantity:
2
Available to order (2-3 days delay)
Mounting bracket, gearbox oil cooler, RH
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Mounting bracket, gearbox oil cooler, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Centre frame assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Mounting plate rear - RH
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Centre longitudinal assembly - LH
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Base, bracket brace reaction strut - RH
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Mounting plate rear - LH
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Rear outrigger
New / New
Diagram No:
21
Quantity:
2
Available to order (2-3 days delay)
Base, bracket brake reaction strut - LH
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Reinforcement plate
New / New
Diagram No:
13
Quantity:
2
Available to order (2-3 days delay)
Outrigger assembly, front - RH
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Support bracket, oil filter
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Shaped washer. Welded to front cross-member
New / New
Diagram No:
8
Quantity:
4
Available to order (2-3 days delay)
Bracket, brake hose, front, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket, brake hose, front, RH
New / New
Diagram No:
38
Quantity:
1
Available to order (2-3 days delay)
