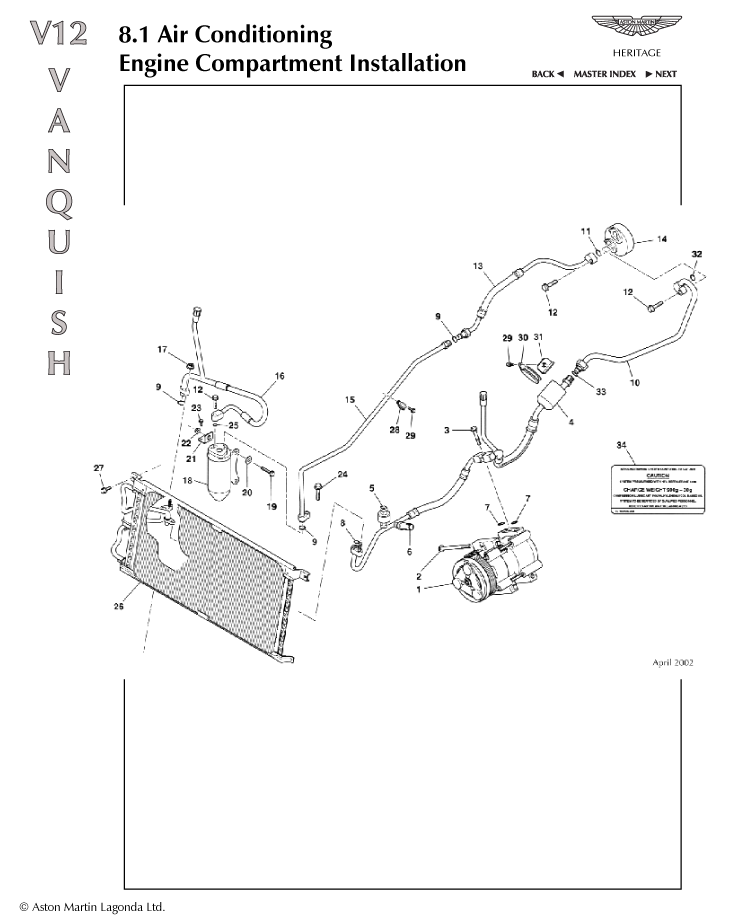

8.1 - Engine Compartment Installation Parts
SCREW M6x12 FLG
New
Diagram No:
27
Quantity:
2
In stock
"O" ring
New / New
Diagram No:
7
Quantity:
2
Available to order (2-3 days delay)
O ring
New / New
Diagram No:
11
Quantity:
2
Available to order (2-3 days delay)
O ring
New / New
Diagram No:
33
Quantity:
4
Available to order (2-3 days delay)
O ring
New / New
Diagram No:
9
Quantity:
4
Available to order (2-3 days delay)
Screw, M6 x 12, Engine Earth
New / New
Diagram No:
29
Quantity:
3
Available to order (2-3 days delay)
Bolt, flg, M8x110
New / New
Diagram No:
2
Quantity:
3
Available to order (2-3 days delay)
Bolt, flg, M6x30
New / New
Diagram No:
19
Quantity:
2
Available to order (2-3 days delay)
P clip
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Screw, flg, M6x20
New / New
Diagram No:
24
Quantity:
1
Available to order (2-3 days delay)
Nut, flg, M6
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, M6x18x0.9
New / New
Diagram No:
20
Quantity:
2
Available to order (2-3 days delay)
Label, air conditioning information
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Condenser
New / New
In stock
Receiver drier
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Deflector shield
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Grommet, charge point
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Grommet
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Screw and washer assy, M6x16 sems
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Grommet, silicone
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Clip, pipe, double
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
P-Clip,13 x 15 x M6
New / New
Diagram No:
28
Quantity:
1
Available to order (2-3 days delay)
Screw, flg, M6x30
New / New
Diagram No:
12
Quantity:
3
Available to order (2-3 days delay)
Nut, flg, M6
New / New
Diagram No:
17
Quantity:
2
Available to order (2-3 days delay)
O ring
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Washer, 25mm OD x 4mm thick
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Screw, hex flg M16x16
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Compressor and clutch assy - air conditioning
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Seal, condenser lower
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Lower bracket, condenser
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pipe assy, condenser to receiver
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Upper bracket, condenser
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pipe assy, condenser to A/C unit
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Condenser
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Foam seal, rear of wing
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Seal, radiator, LH
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Condensor/PAS cooler assy
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pipe assy, suction line, evap
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Pipe assy, condenser to receiver
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Hose assy, suction/discharge cond
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
PAG oil dye
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Pipe assy, liquid line, drier
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Hose assy, liquid line, evap
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Switch assy, Air Conditioning pressure cut off
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Seal, condensor, lower - Middle East
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket assy, pipe, compressor suction
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Bracket, receiver drier
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Air conditioning unit, modified
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
