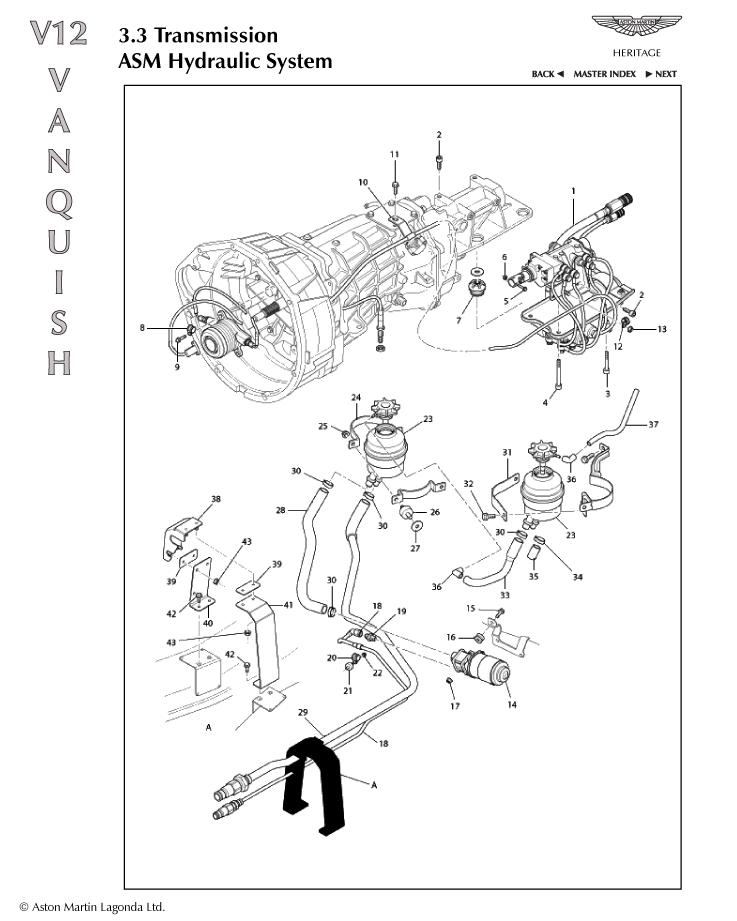

3.3 - ASM Hydraulic System Parts
Rubber mount, ASM pump
New
Diagram No:
16
Quantity:
3
Available to order (2-3 days delay)
Screw M8x20, Press, plate to flywheel
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Bolt, flg, M8 x 33, ROPS Install
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Screw, magnet carrier
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Nut, flg, M8
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Spacer, ASM bracket, 12mm
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bolt, M6x20, Roadster
New / New
Diagram No:
4
Quantity:
2
Available to order (2-3 days delay)
Bolt, M6x16, Speaker Plate to Door
New / New
Diagram No:
2
Quantity:
4
Available to order (2-3 days delay)
Screw, flg, M8x45
New / New
Diagram No:
3
Quantity:
2
Available to order (2-3 days delay)
Screw, flg, M8 x 14
New / New
Diagram No:
32
Quantity:
4
Available to order (2-3 days delay)
Nut, Flg, M8, Upper Arm Rear
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Bolt, flg, M6x30
New / New
Diagram No:
15
Quantity:
3
Available to order (2-3 days delay)
Screw, flg, M6 x 12
New / New
Diagram No:
42
Quantity:
4
Available to order (2-3 days delay)
Clip, hose, spring loaded
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Nut, flg, M6
New / New
Diagram No:
17
Quantity:
3
Available to order (2-3 days delay)
ASM fluid
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
NUT, M6, DURALOCK, FLG
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Washer
New / New
Diagram No:
27
Quantity:
2
Available to order (2-3 days delay)
'P' clip, 6mm
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Isolator
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Oetiker Hose clip 21mm dia
New
Diagram No:
-
Quantity:
1
In stock
'P' Clip, 8mm
New / New
Diagram No:
12
Quantity:
2
Available to order (2-3 days delay)
Isolator
New / New
Diagram No:
26
Quantity:
2
Available to order (2-3 days delay)
Clip, Hose, Spring Loaded, 16-25
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
'P' clip, 16mm
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
Clamp, Hose clip Reservoir to Kit, 23.6 dia
New
Diagram No:
30
Quantity:
2
In stock
Screw, flg, M6x30
New / New
Diagram No:
9
Quantity:
2
Available to order (2-3 days delay)
Nut, flg, M6, free runner
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Washer, wave spring
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Gasket, modified, gearshift sensor
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Blanking plug, gearbox
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
PLCD magnet carrier
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
ASM actuator/manifold assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
ASM actuator/manifold assembly
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
1
Quantity:
1
In stock
Main body, PLCD sensor assy, (gear position)
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
TRANSMISSION GEAR POSITION LINK LEAD
New
Diagram No:
-
Quantity:
1
In stock
Concentric slave cylinder
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Temperature Sensor
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket, ASM support
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hose, blank, ASM overflow
New / New
Diagram No:
35
Quantity:
1
Available to order (2-3 days delay)
Gaiter, cardan joint
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
CGPS magnetic sensor upgrade kit
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket, HP/LP support
New / New
Diagram No:
38
Quantity:
1
Available to order (2-3 days delay)
Mounting rubber, valve block
New / New
Diagram No:
7
Quantity:
4
Available to order (2-3 days delay)
Hose, Reservoir to Pump
New / New
Diagram No:
28
Quantity:
1
Available to order (2-3 days delay)
Pump, ASM
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Hose, reservoir to overflow
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
Reservoir ASM
New / New
Diagram No:
23
Quantity:
2
Available to order (2-3 days delay)
Bracket, ASM support, RH
New / New
Diagram No:
40
Quantity:
1
Available to order (2-3 days delay)
Elbow ASM Reservoir
New / New
Diagram No:
36
Quantity:
1
Available to order (2-3 days delay)
