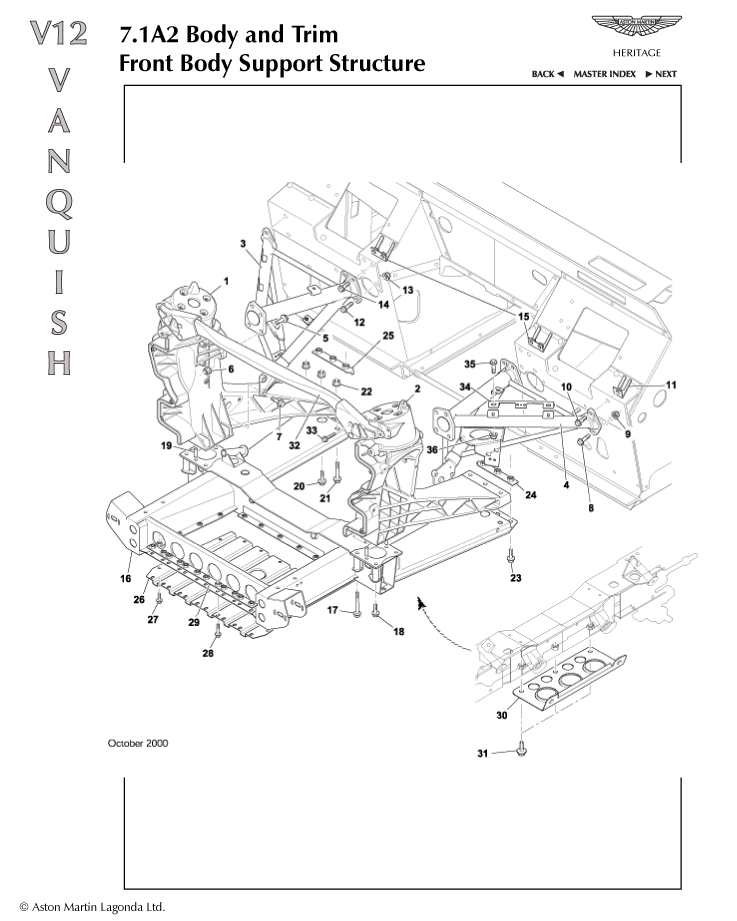

Front Body Support Structure Parts
Screw, flg, M12x30
New / New
Diagram No:
23
Quantity:
6
Available to order (2-3 days delay)
Bolt, flg, M12x90
New / New
Diagram No:
21
Quantity:
4
Available to order (2-3 days delay)
Screw, flg, M10 x 30
New / New
Diagram No:
14
Quantity:
4
Available to order (2-3 days delay)
Screw, flg, M8x16
New / New
Diagram No:
27
Quantity:
18
Available to order (2-3 days delay)
Bolt, M10x45, steering arm to upright, (SVO option)
New / New
Diagram No:
5
Quantity:
8
Available to order (2-3 days delay)
Nut, flg, M12
New / New
Diagram No:
6
Quantity:
8
Available to order (2-3 days delay)
Bolt, M6x16, Speaker Plate to Door
New / New
Diagram No:
35
Quantity:
8
Available to order (2-3 days delay)
Bolt, flg, M12x50
New / New
Diagram No:
20
Quantity:
2
Available to order (2-3 days delay)
Screw, flg, M8x45
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Bolt, flg, M8 x 30
New / New
Diagram No:
28
Quantity:
12
Available to order (2-3 days delay)
Screw, flg, M8 x 25
New / New
Diagram No:
33
Quantity:
2
Available to order (2-3 days delay)
Screw, flg, M8x50
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Bolt, flg, M12x35
New / New
Diagram No:
10
Quantity:
2
Available to order (2-3 days delay)
BOLT, M10x40, HEX FLG
New / New
Diagram No:
7
Quantity:
6
Available to order (2-3 days delay)
Bolt, flg, M10x90
New / New
Diagram No:
17
Quantity:
4
Available to order (2-3 days delay)
Nut, flg, nyloc, M6
New / New
Diagram No:
36
Quantity:
8
Available to order (2-3 days delay)
Loctite 648, trumpets to inlet manifolds
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Underpanel, ventilated
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket, apron support
New / New
Diagram No:
34
Quantity:
4
Available to order (2-3 days delay)
Dowel, 10x30
New / New
Diagram No:
19
Quantity:
4
Available to order (2-3 days delay)
Engine cradle assy
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Nutplate, Mounting Rail
New / New
Diagram No:
29
Quantity:
1
Available to order (2-3 days delay)
Strut tower, LH
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Strut tower, RH
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Strut brace assy
New / New
Diagram No:
32
Quantity:
1
Available to order (2-3 days delay)
Nut Plate, Strut Tower Support Outer
New / New
Diagram No:
11
Quantity:
2
Available to order (2-3 days delay)
Nutplate, Frt Subframe lwr lh
New / New
Diagram No:
24
Quantity:
1
Available to order (2-3 days delay)
Strut, tower support, LH
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Nut Plate, Strut Tower Support
New / New
Diagram No:
15
Quantity:
2
Available to order (2-3 days delay)
Assy Panel, Steering Rack
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Nutplate, Frt Subframe lwr rh
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
Strut, tower support, RH
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Underpanel, corrugated
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
