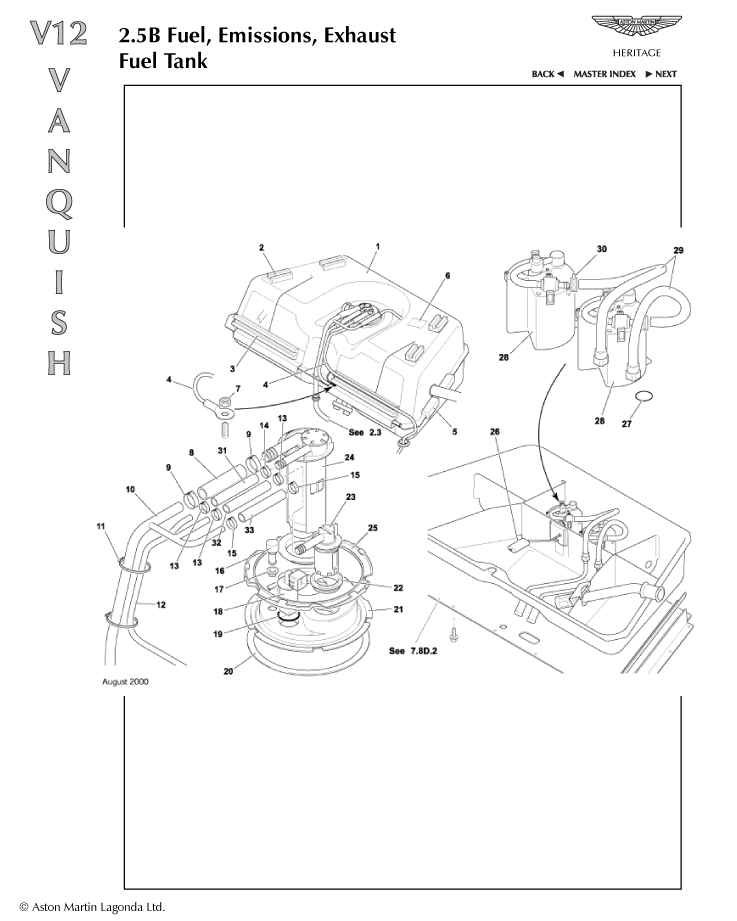

2.5b - Fuel Tank Parts
Nut, flg, M6
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Hose, FLVV breather connection
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hose, carbon canister connector
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Fuel Tank Assembly - without fuel pumps
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Fuel Tank Assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hose, FLVV to 4 way
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Hose, grade valve to 4 way conn
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Sensor, fuel tank pressure
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Label, cleanliness - fuel tank
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Heat proof tie, ABS lead
New / New
Diagram No:
11
Quantity:
2
Available to order (2-3 days delay)
Clamp, hose
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Clamp, stepless, 30 - 36 dia
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
O ring
New / New
Diagram No:
27
Quantity:
2
Available to order (2-3 days delay)
Valve, roll over
New / New
Diagram No:
23
Quantity:
1
Available to order (2-3 days delay)
Seal, roll over valve
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Seal ring, FTTP assy
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Ring, locking, FTTP assy
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
Pin, fuel feed
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Harness, fuel pump, (internal)
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Lead, fuel tank
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Clip, hose -12/8
New / New
Diagram No:
15
Quantity:
2
Available to order (2-3 days delay)
Blanking plug, elf flange
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Valve, fuel FLVV
New / New
Diagram No:
24
Quantity:
1
Available to order (2-3 days delay)
Hose, FLVV breather connection
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Fuel tank body
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Hose, vent to 4 way pipe
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
Clip, fuel sender connector
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Support, fuel tank, side
New / New
Diagram No:
5
Quantity:
2
Available to order (2-3 days delay)
Clip, hose, 20/8
New / New
Diagram No:
9
Quantity:
2
Available to order (2-3 days delay)
Support, fuel tank, top/side
New / New
Diagram No:
3
Quantity:
2
Available to order (2-3 days delay)
Sender assy, fuel tank
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
Clip, hose -13/8, inner vent
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Valve, inner tank vent
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
O ring, fuel sender connector
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Fitting, Raymond, 10mm
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Support, fuel tank, top
New / New
Diagram No:
2
Quantity:
4
Available to order (2-3 days delay)
Pipe, 4 way connector assy
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Fuel Tank Assembly - without fuel pumps
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hose, FLVV to 4 way
New / New
Diagram No:
8
Quantity:
2
Available to order (2-3 days delay)
Hose, grade valve to 4 way conn
New / New
Diagram No:
32
Quantity:
1
Available to order (2-3 days delay)
Clip, hose -15/8
New / New
Diagram No:
13
Quantity:
3
Available to order (2-3 days delay)
Connector, Sumitomo
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Elf assy
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Seal, tank pressure sensor
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Hose, in tank
New / New
Diagram No:
29
Quantity:
2
Available to order (2-3 days delay)
FUEL PUMP ASSEMBLY
New
Diagram No:
28
Quantity:
2
Available to order (2-3 days delay)
Tube, FLVV port to vent
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Fuel Tank Assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Connector, Sumitomo + O ring
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
O ring for use with item 21
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
