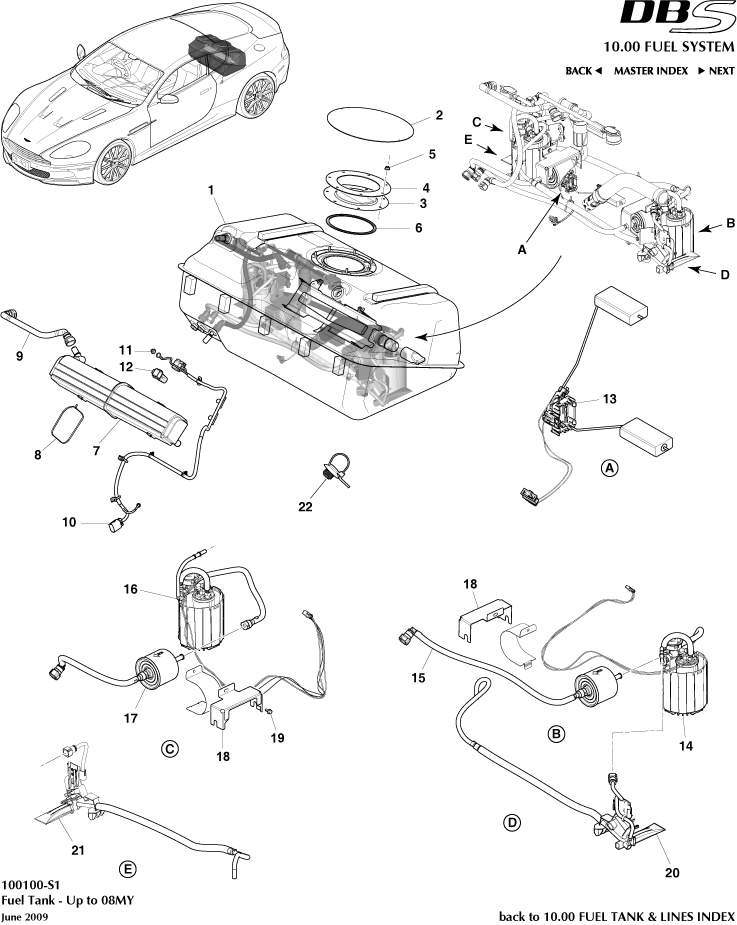

Fuel Tank Assy, to 08MY Parts
FUEL TANK COVER PLATE GASKET
New
Diagram No:
6
Available to order (2-3 days delay)
Bolt, M5 x 16, filter clamp to baffle
New
Diagram No:
19
Available to order (2-3 days delay)
FUEL TANK SENDER UNIT
New
Diagram No:
13
Available to order (2-3 days delay)
Harness, fuel tank
New / New
Diagram No:
10
Available to order (2-3 days delay)
Nut, flg, M6, rear wheelarch liner
New / New
Diagram No:
5
Available to order (2-3 days delay)
Tank and canister assy
New / New
Diagram No:
1
Available to order (2-3 days delay)
Cover, Fuel Tank Cover Plate
New / New
Diagram No:
3
Available to order (2-3 days delay)
Pump Jet Assembly, RHS
New / New
Diagram No:
21
Available to order (2-3 days delay)
Tie-wrap
New / New
Diagram No:
8
Available to order (2-3 days delay)
Canister assy, charcoal
New / New
Diagram No:
7
Available to order (2-3 days delay)
Pump Jet Assembly, LHS
New / New
Diagram No:
20
Available to order (2-3 days delay)
Filter assy, fuel LH
New / New
Diagram No:
15
Available to order (2-3 days delay)
Plate assy, Fuel Tank Cover - Volante
New / New
Diagram No:
-
Available to order (2-3 days delay)
Bracket, fuel connection
New / New
Diagram No:
18
Available to order (2-3 days delay)
Tie Wrap, Fir Tree
New / New
Diagram No:
22
Available to order (2-3 days delay)
Plate Assy, Fuel Tank Cover
New / New
Diagram No:
2
Available to order (2-3 days delay)
Filter assy, fuel, RH
New / New
Diagram No:
17
Available to order (2-3 days delay)
Tube, assy, fuel vap to cannister
New / New
Diagram No:
9
Available to order (2-3 days delay)
Connector, Electrical, 6 Way Sumitomo
New / New
Diagram No:
12
Available to order (2-3 days delay)
Plate, clamp, fuel tank
New / New
Diagram No:
4
Available to order (2-3 days delay)
