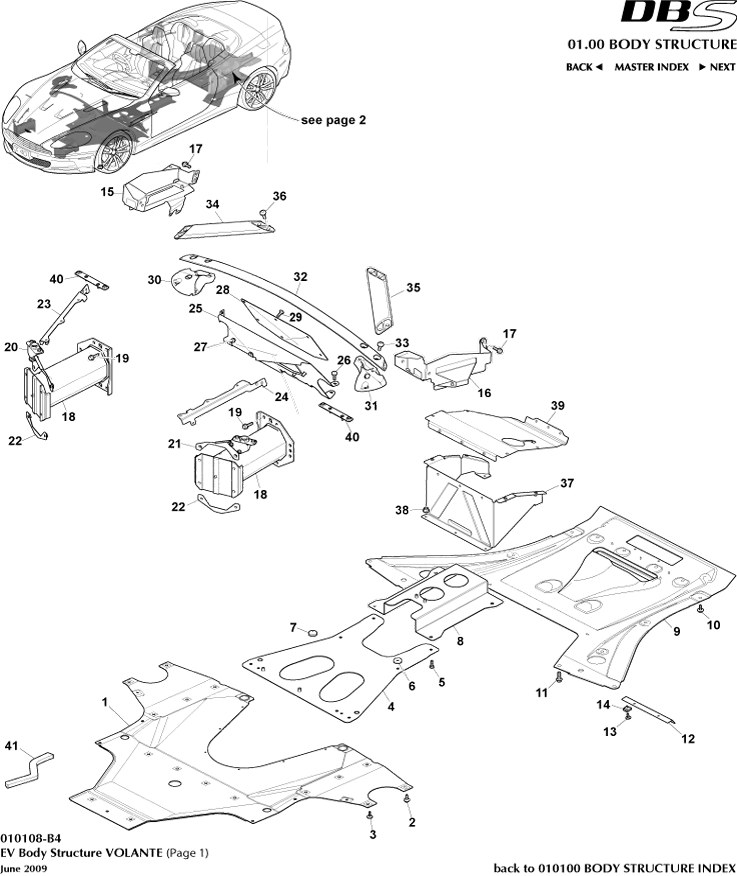

EV Structure, Volante, page 1 Parts
M10 X 25 TORQUE DRIVE BOLT
New
Diagram No:
33
Available to order (2-3 days delay)
M10 X 30 HEX FLANGE HEAD SCREW BOLT
New
Diagram No:
11
In stock
Panel, battery cover RH
New / New
Diagram No:
39
Available to order (2-3 days delay)
Screw, M8 x 35, Hex Flange Head
New / New
Diagram No:
19
Available to order (2-3 days delay)
Screw and Washer, M8 x 21
New / New
Diagram No:
2
Available to order (2-3 days delay)
Screw, M8x25 Pan hd 6 lobe D
New / New
Diagram No:
5
Available to order (2-3 days delay)
Nut, flg, M6, rear wheelarch liner
New / New
Diagram No:
27
Available to order (2-3 days delay)
Screw, M6 x 20, RH bracket to bulk head
New / New
Diagram No:
26
Available to order (2-3 days delay)
SCREW, M10x25, 6 LOB DRV
New / New
Diagram No:
36
Available to order (2-3 days delay)
Crash can, front bumper
New / New
Diagram No:
18
Available to order (2-3 days delay)
Shield, Rear Bumper Opening
New / New
Diagram No:
9
Available to order (2-3 days delay)
Spoiler Assembly, Rear
New / New
Diagram No:
12
Available to order (2-3 days delay)
Baffle, Quarter Panel At Wheel, Housing Upper, RH
New / New
Diagram No:
41
Available to order (2-3 days delay)
Reinforcement Assembly, Floor Pan Front
New / New
Diagram No:
1
Available to order (2-3 days delay)
Nut plate, M6 hood striker plate
New / New
Diagram No:
40
Available to order (2-3 days delay)
Bracket, Front Cross Brace, LH
New / New
Diagram No:
31
Available to order (2-3 days delay)
Head lamp mounting panel LH
New / New
Diagram No:
21
Available to order (2-3 days delay)
Bracket, Front Cross Brace, RH
New / New
Diagram No:
30
Available to order (2-3 days delay)
Head lamp mounting panel LH
New / New
Diagram No:
20
Available to order (2-3 days delay)
Crush Bar, Reinforcement Body, Front LH
New / New
Diagram No:
35
Available to order (2-3 days delay)
Crush Bar, Reinforcement Body, Front RH
New / New
Diagram No:
34
Available to order (2-3 days delay)
Panel, rear seat heel board RH
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
37
In stock
Cap, dust cover
New / New
Diagram No:
7
Available to order (2-3 days delay)
Nut Plate Assembly, Crash Can Lower
New / New
Diagram No:
22
Available to order (2-3 days delay)
Bracket, ECU mounting LH
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
16
In stock
Bracket, ECU mounting RH
New / New
Diagram No:
15
Available to order (2-3 days delay)
Tube, passenger airbag initr LH
New / New
Diagram No:
24
Available to order (2-3 days delay)
Tube, passenger airbag initr LH
New / New
Diagram No:
23
Available to order (2-3 days delay)
Spacer, tunnel front reinforcement
New / New
Diagram No:
6
Available to order (2-3 days delay)
Tunnel reinforcement, front
New / New
Diagram No:
4
Available to order (2-3 days delay)
Tunnel, reinforcement, centre
New / New
Diagram No:
8
Available to order (2-3 days delay)
Panel, dummy floor front, RHD
New / New
Diagram No:
25
Available to order (2-3 days delay)
Panel, dummy floor front, LHD
New / New
Diagram No:
-
Available to order (2-3 days delay)
Brace, front crush
New / New
Diagram No:
32
Available to order (2-3 days delay)
Panel, Dummy, Cover, Front Floor
New / New
Diagram No:
28
Available to order (2-3 days delay)
