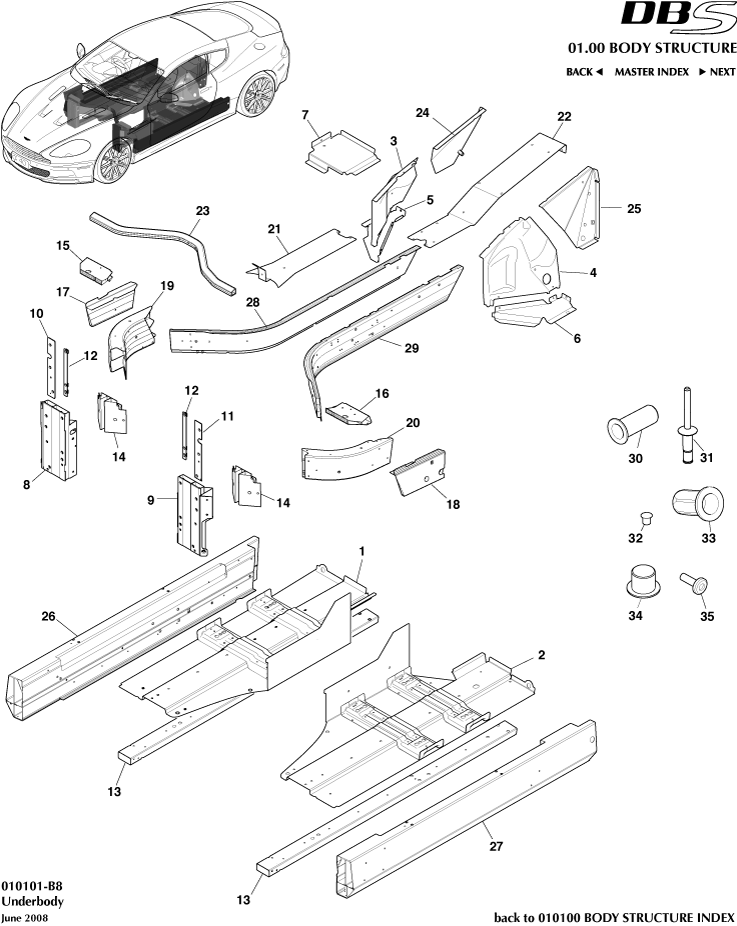

Underbody Parts
Panel, tunnel top front
New / New
Diagram No:
21
Available to order (2-3 days delay)
Rivet, 4.65 x 13. 8 blind al dome head
New / New
Diagram No:
35
Available to order (2-3 days delay)
Member, body front cross
New / New
Diagram No:
23
Available to order (2-3 days delay)
Bracket, tunnel upper inner
New / New
Diagram No:
14
Available to order (2-3 days delay)
STRUCTURAL RIVET, 6.5x14.0, BLIND
New / New
Available to order (2-3 days delay)
New / Undamaged
Diagram No:
31
In stock
Rivet, Self Piercing, 5.0x6.0mm
New / New
Diagram No:
32
Available to order (2-3 days delay)
Sill assy, outer, RH, VOLANTE
New / New
Diagram No:
-
Available to order (2-3 days delay)
Sill assy, outer, LH, COUPE
New / New
Diagram No:
-
Available to order (2-3 days delay)
Sill assy, outer, LH, VOLANTE
New / New
Diagram No:
-
Available to order (2-3 days delay)
Sill assy, outer, RH, COUPE
New / New
Diagram No:
-
Available to order (2-3 days delay)
Sill assy, outer, LH
New / New
Diagram No:
-
Available to order (2-3 days delay)
Sill assy, outer, RH
New / New
Available to order (2-3 days delay)
New / Undamaged
Diagram No:
26
In stock
Sill assy, outer, RH
New / New
Diagram No:
-
Available to order (2-3 days delay)
Sill assy, outer, LH
New / New
Diagram No:
27
Available to order (2-3 days delay)
Tunnel, rear side, LH
New / New
Diagram No:
4
Available to order (2-3 days delay)
Extrusion, tunnel, LH
New / New
Diagram No:
29
Available to order (2-3 days delay)
Extrusion, tunnel, RH
New / New
Diagram No:
28
Available to order (2-3 days delay)
Finisher, rear seat heel board lower, RH
New / New
Diagram No:
7
Available to order (2-3 days delay)
Panel rear seat heel board lower, LH
New / New
Diagram No:
6
Available to order (2-3 days delay)
Panel rear seat heel board lower, RH
New / New
Diagram No:
5
Available to order (2-3 days delay)
Nut Plate, Front End Mounting Outer, RH
New / New
Available to order (2-3 days delay)
New / Undamaged
Diagram No:
10
In stock
Tunnel, reinforce rear, RH
New / New
Diagram No:
24
Available to order (2-3 days delay)
Tunnel, reinforce rear, LH
New / New
Diagram No:
25
Available to order (2-3 days delay)
Nut Plate, Front End Mounting Outer, LH
New / New
Available to order (2-3 days delay)
New / Undamaged
Diagram No:
11
In stock
Nutplate, Front End Mounting Inner
New / New
Available to order (2-3 days delay)
New / Undamaged
Diagram No:
12
In stock
Tunnel, rear side, RH
New / New
Diagram No:
3
Available to order (2-3 days delay)
Panel, tunnel top
New / New
Diagram No:
22
Available to order (2-3 days delay)
Member, floor, side front
New / New
Diagram No:
13
Available to order (2-3 days delay)
RIVNUT, M6/M10L, FLAT HEAD, 1.5-3mm
New
Diagram No:
30
In stock
Rivnut 7/16 UNF Hex Flg 4-7mm
New / New
Diagram No:
33
Available to order (2-3 days delay)
Member, front side, LH
New / New
Diagram No:
20
Available to order (2-3 days delay)
Member, lower reinforce front side, LH
New / New
Diagram No:
18
Available to order (2-3 days delay)
Member, reinforce front side, RH
New / New
Diagram No:
15
Available to order (2-3 days delay)
Member, front side, RH
New / New
Diagram No:
19
Available to order (2-3 days delay)
Member, lower reinforce front side, RH
New / New
Diagram No:
17
Available to order (2-3 days delay)
Member, reinforce front side, LH
New / New
Diagram No:
16
Available to order (2-3 days delay)
Rubber Plug, 11mm, Black Thermoplastic
New / New
Diagram No:
34
Available to order (2-3 days delay)
BRACE ASSEMBLY, FLOOR, RH
New / New
Diagram No:
8
Available to order (2-3 days delay)
BRACE ASSEMBLY, FLOOR, LH
New / New
Diagram No:
9
Available to order (2-3 days delay)
Panel assy, floor, RH
New / New
Diagram No:
1
Available to order (2-3 days delay)
PANEL ASSEMBLY, FLOOR, LH, SERVICE PART
New / New
Diagram No:
2
Available to order (2-3 days delay)
