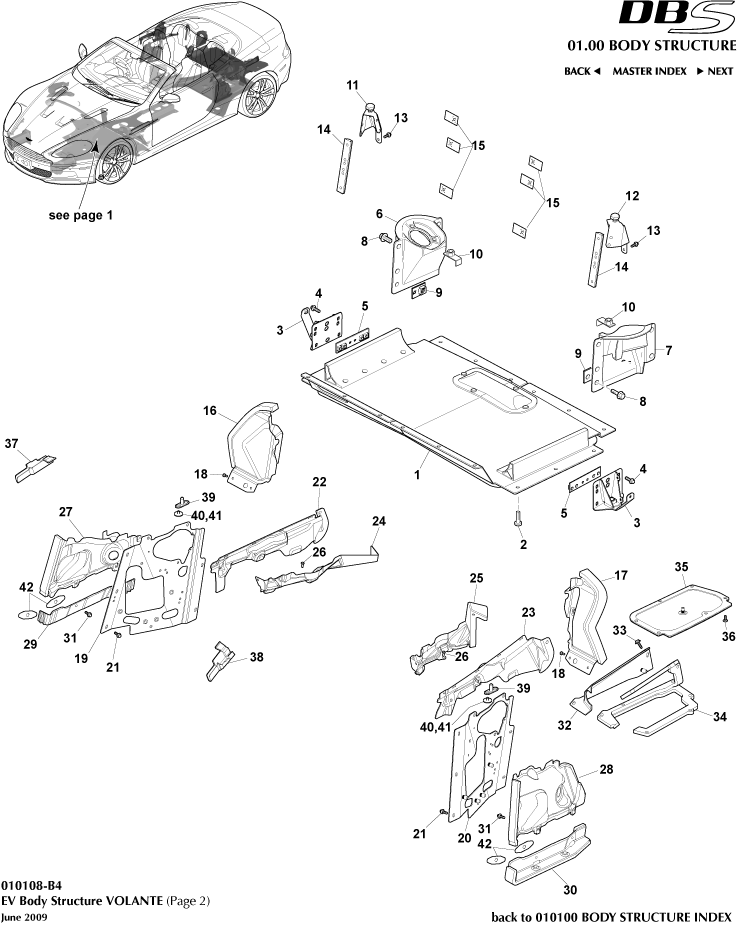

EV Structure, Volante, page 2 Parts
Plate, Weld Nut, Centre
New / New
Diagram No:
15
Available to order (2-3 days delay)
STUD, M8x13.6+16, HEX SHOULDER 10
New / New
Diagram No:
18
Available to order (2-3 days delay)
Screw, M12 x 25, Hex Flange Head
New / New
Diagram No:
8
Available to order (2-3 days delay)
Screw/washer, M6 x 20, bumper attach
New / New
Available to order (2-3 days delay)
New / Undamaged
Diagram No:
33
In stock
Nutplate, M12, rear damper mounting, front
New / New
Diagram No:
9
Available to order (2-3 days delay)
Nutplate Bracket, Rear Subframe Stabiliser, Upper
New / New
Diagram No:
5
Available to order (2-3 days delay)
Bracket, Rear, Subframe, Stabiliser
New / New
Diagram No:
3
Available to order (2-3 days delay)
Gasket, tonneau pump plate
New / New
Diagram No:
34
Available to order (2-3 days delay)
Se assy bearing casting rear quarter, LH
New / New
Diagram No:
25
Available to order (2-3 days delay)
Se assy bearing casting rear quarter, RH
New / New
Diagram No:
24
Available to order (2-3 days delay)
Cover Plate, Tonneau Pump, LHS
New / New
Diagram No:
32
Available to order (2-3 days delay)
Closing Plate Assy, Pump
New / New
Diagram No:
35
Available to order (2-3 days delay)
Panel, Rear Quarter Shedder, LH
New / New
Diagram No:
28
Available to order (2-3 days delay)
Baffle, Quarter Panel At Wheel, Housing Upper, RH
New / New
Diagram No:
16
Available to order (2-3 days delay)
Baffle, Quarter Panel At Wheel, Housing Upper, LH
New / New
Diagram No:
17
Available to order (2-3 days delay)
Panel, Rear Quarter Shedder, RH
New / New
Diagram No:
27
Available to order (2-3 days delay)
Panel, window reguator opening cover, LH
New / New
Diagram No:
20
Available to order (2-3 days delay)
Panel, window reguator opening cover, RH
New / New
Diagram No:
19
Available to order (2-3 days delay)
Member, rear shock absorber mounting LH
New / New
Diagram No:
7
Available to order (2-3 days delay)
Member, rear shock absorber mounting RH
New / New
Diagram No:
6
Available to order (2-3 days delay)
Washer, M6 x 25 x 1.6, Stainless Black
New
Available to order (2-3 days delay)
Nutplate, Pillar Centre Body Inner Rear
New / New
Diagram No:
14
Available to order (2-3 days delay)
Alignment Pin, Main Bearing Bracket
New / New
Diagram No:
39
Available to order (2-3 days delay)
Trough, Front Body Pillar Upper, LH
New / New
Diagram No:
38
Available to order (2-3 days delay)
Trough, Front Body Pillar Upper, RH
New / New
Diagram No:
37
Available to order (2-3 days delay)
Panel, rear body pillar closing, LH
New / New
Diagram No:
23
Available to order (2-3 days delay)
Panel, rear body pillar closing, RH
New / New
Diagram No:
22
Available to order (2-3 days delay)
Mounting bracket, tonneau cover bump stop, LH
New / New
Diagram No:
12
Available to order (2-3 days delay)
Nutplate, M14, Rear Subframe
New / New
Diagram No:
10
Available to order (2-3 days delay)
Mounting bracket, tonneau cover bump stop, RH
New / New
Diagram No:
11
Available to order (2-3 days delay)
Panel, fuel tank compartment, lower
New / New
Diagram No:
1
Available to order (2-3 days delay)
Bracket, quarter window regulator mounting, RH
New / New
Diagram No:
29
Available to order (2-3 days delay)
Plate Assembly, Window Regulator Rear Switch Cover
New / New
Diagram No:
42
Available to order (2-3 days delay)
