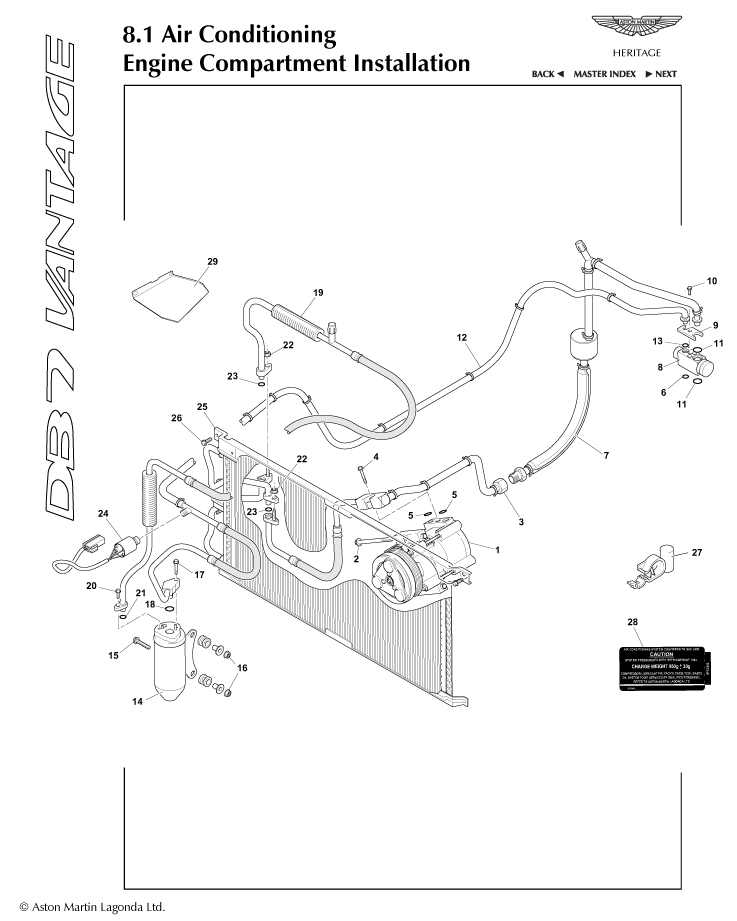

8.1 - Engine Compartment Installation Parts
EXPANSION VALVE O RING
New / New
Diagram No:
11
Quantity:
2
Available to order (2-3 days delay)
Adjustment block, window lift door glass, otr
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
"O" ring
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
"O" ring
New / New
Diagram No:
5
Quantity:
2
Available to order (2-3 days delay)
"O" ring
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Nut, M6, cheater panel fixing
New / New
Diagram No:
22
Quantity:
2
Available to order (2-3 days delay)
Label, air conditioning information
New / New
Diagram No:
28
Quantity:
1
Available to order (2-3 days delay)
Pressure switch, A/C
New / New
Diagram No:
24
Quantity:
1
Available to order (2-3 days delay)
Compressor and clutch assembly - air conditioning
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Condenser
New / New
In stock
Receiver drier
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Clamp plate
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Expansion valve
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Deflector shield
New / New
Diagram No:
29
Quantity:
1
Available to order (2-3 days delay)
Pipe and hose assembly, condenser to receiver drier
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Pipe and hose assembly
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Pipe, evaporator to condenser
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Pag oil dye
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pipe and hose assembly, receiver drier to evaporator
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Clip, double C
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
"O" ring
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
"O" ring
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
"O" ring
New
Diagram No:
23
Quantity:
2
In stock
Screw, flg, M6x30
New
Diagram No:
15
Quantity:
2
In stock
Screw, flg, M6x18
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Screw, flg, M6x30
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Bolt, M8x113.5
New / New
Diagram No:
2
Quantity:
3
Available to order (2-3 days delay)
Screw, hex flg M6x14 FS106141
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Nut, flanged M6
New / New
Diagram No:
16
Quantity:
2
Available to order (2-3 days delay)
Screw, hex flg M6x12
New / New
Diagram No:
26
Quantity:
2
Available to order (2-3 days delay)
Compressor and clutch assembly - air conditioning
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Tie strap, secure boot lid harness
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Harness clip, stud mounting
New / New
Diagram No:
27
Quantity:
2
Available to order (2-3 days delay)
