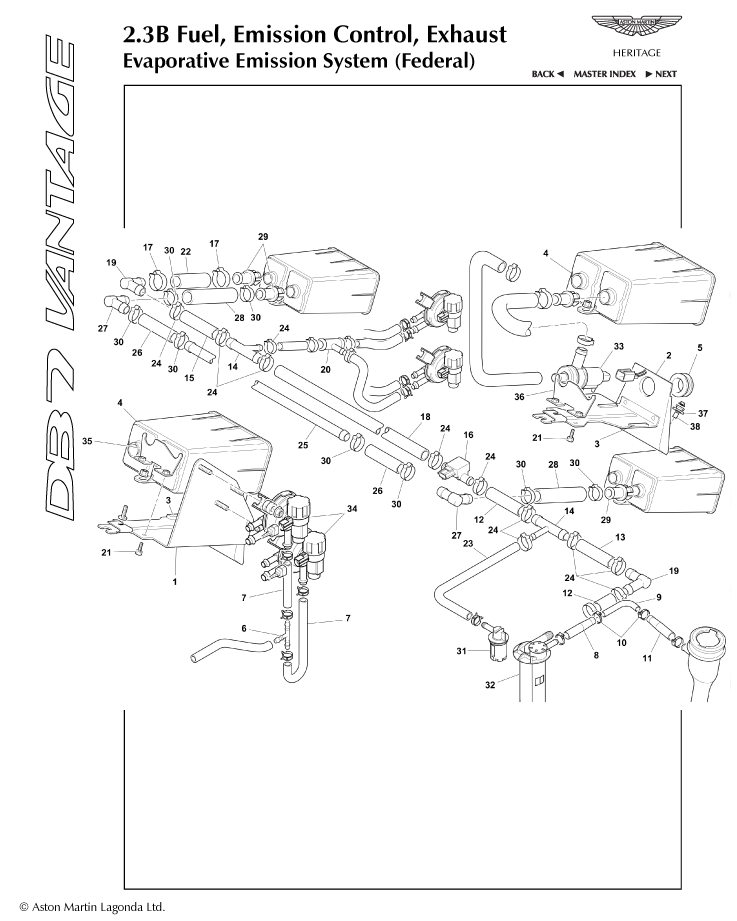

2.3b - Evaporative Emission System, Federal Parts
Clip - hose
New / New
Diagram No:
10
Quantity:
2
Available to order (2-3 days delay)
Screw, hex flg, M5x10
New / New
Diagram No:
21
Quantity:
4
Available to order (2-3 days delay)
Tie strap, secure boot lid harness
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Carbon canister
New / New
Diagram No:
4
Quantity:
2
Available to order (2-3 days delay)
Hose
New / New
Diagram No:
23
Quantity:
2
Available to order (2-3 days delay)
Hose
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Connector, carbon canister
New / New
Diagram No:
29
Quantity:
2
Available to order (2-3 days delay)
Valve, liquid vapour discrimination
New / New
Diagram No:
32
Quantity:
1
Available to order (2-3 days delay)
Valve, roll over
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Armour, fuel bowl vent hose
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Foam pad, neophrene
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Valve, vapour management
New / New
Diagram No:
34
Quantity:
2
Available to order (2-3 days delay)
Foam strip
New / New
Diagram No:
3
Quantity:
4
Available to order (2-3 days delay)
Sensor, fuel tank pressure, inline
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Valve, EVAP canister purge
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
Grommet, rubber
New / New
Diagram No:
5
Quantity:
2
Available to order (2-3 days delay)
Hose
New / New
Diagram No:
12
Quantity:
2
Available to order (2-3 days delay)
Hose, 130 long
New / New
Diagram No:
26
Quantity:
2
Available to order (2-3 days delay)
Hose, 100 long
New / New
Diagram No:
11
Quantity:
2
Available to order (2-3 days delay)
Pipe, signal purge, under floor
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hose, 475 long
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
T connector
New / New
Diagram No:
14
Quantity:
2
Available to order (2-3 days delay)
Hose, 90 long
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Hose, 60 long
New / New
Diagram No:
28
Quantity:
2
Available to order (2-3 days delay)
Schraeder valve assembly
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Bracket assembly, canister retainer, LH
New / New
Diagram No:
36
Quantity:
1
Available to order (2-3 days delay)
Hose vapour, manifold, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hose
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Clip
New / New
Diagram No:
24
Quantity:
6
Available to order (2-3 days delay)
Pipe
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Hose, 40 long
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Hose, 140 long
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pipe, solenoid to first can
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Clip
New / New
Diagram No:
17
Quantity:
3
Available to order (2-3 days delay)
Hose assembly, evap flange to carbon canister
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hose vapour, manifold, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hose, vacuum
New / New
Diagram No:
7
Quantity:
2
Available to order (2-3 days delay)
Hose, 70 long
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Bracket assembly, carbon canister mounting, LH
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Elbow connector
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Pipe, signal purge, under floor
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
T connector
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Pipe, vapour, under floor, RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pipe, vapour, under floor, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket assembly, canister retainer, RH
New / New
Diagram No:
35
Quantity:
1
Available to order (2-3 days delay)
Pipe, canister to canister
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
Pipe, canister to canister
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket assembly, carbon canister mounting, RH
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Grommet, condenser mounting
New / New
Diagram No:
37
Quantity:
2
Available to order (2-3 days delay)
Distance piece
New / New
Diagram No:
38
Quantity:
2
Available to order (2-3 days delay)
