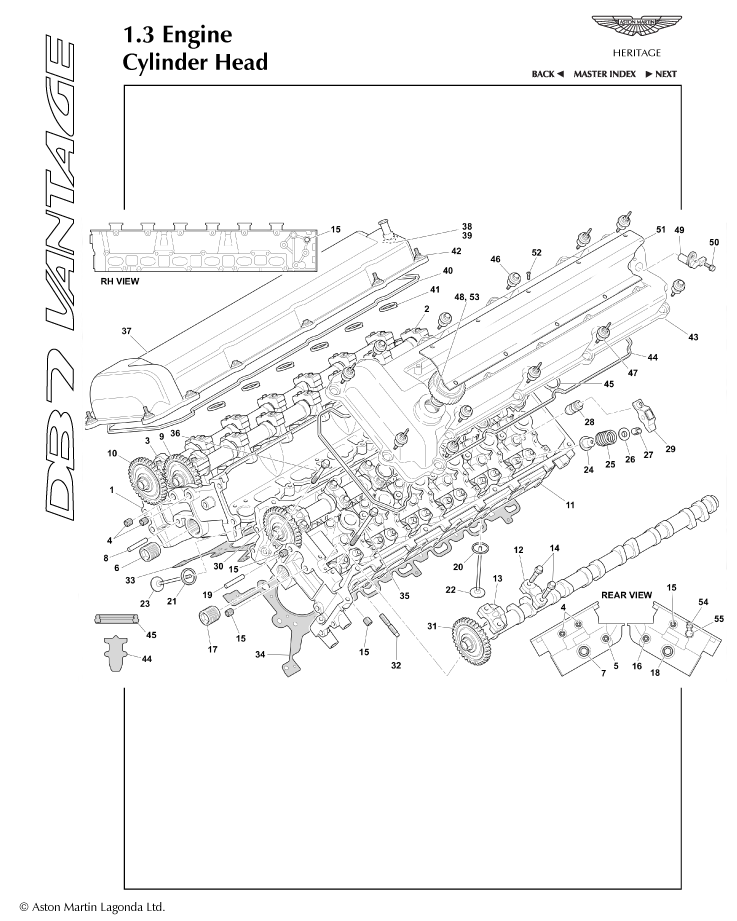

1.3 - Cylinder Head Parts
Gasket, valve cover, RH
New
Diagram No:
40
Quantity:
1
In stock
CAM COVER VALVE GASKET LEFT
New
In stock
Sensor Assy, camshaft timing, rear
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Camshaft and sprocket assy, exhaust, RH
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Cover, coil
New / New
Diagram No:
51
Quantity:
2
Available to order (2-3 days delay)
Grommet and stud assembly
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Valve cover, LH
New / New
Diagram No:
43
Quantity:
1
Available to order (2-3 days delay)
Baffle, PCV
New / New
Diagram No:
38
Quantity:
1
Available to order (2-3 days delay)
LEFT SIDE CRANKSHAFT TIMING SENSOR
Used / Good
In stock
New / New
In stock
Cap assy, oil filler
New / New
Diagram No:
48
Quantity:
1
Available to order (2-3 days delay)
Gasket, sparking plug hole
New / New
In stock
Camshaft and sprocket assy, intake, RH
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Grommet and bolt assembly
New / New
Diagram No:
42
Quantity:
10
Available to order (2-3 days delay)
Valve cover, RH
New / New
Diagram No:
37
Quantity:
1
Available to order (2-3 days delay)
Camshaft and sprocket assy, exhaust, LH
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Camshaft and sprocket assy, intake, LH
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Label, 'Oil'. Self-adhesive
New / New
Diagram No:
53
Quantity:
1
Available to order (2-3 days delay)
Screw, M4x10, pan hd
New / New
Diagram No:
39
Quantity:
2
Available to order (2-3 days delay)
Screw, M4x11.7
New / New
Diagram No:
52
Quantity:
20
Available to order (2-3 days delay)
Bolt and washer, M6x23.25
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bolt, flg, M8x32
New / New
Diagram No:
36
Quantity:
4
Available to order (2-3 days delay)
Adjuster assembly, valve lash
New / New
Diagram No:
-
Quantity:
24
Available to order (2-3 days delay)
Valve, exhaust
New / New
Diagram No:
-
Quantity:
12
Available to order (2-3 days delay)
Plug, 1" x11.5
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Bolt, M10x151.5, Cylinder Head to Block
New / New
Diagram No:
35
Quantity:
28
Available to order (2-3 days delay)
BOLT, M6x1.06x40, HEX
New / New
Diagram No:
-
Quantity:
28
Available to order (2-3 days delay)
Cylinder head, LH - to service level
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Fitting, Oil pressure sender switch
New / New
Diagram No:
55
Quantity:
1
Available to order (2-3 days delay)
Rocker arm assembly
New / New
Diagram No:
-
Quantity:
24
Available to order (2-3 days delay)
Seal assembly, valve stem
New / New
Diagram No:
-
Quantity:
24
Available to order (2-3 days delay)
Gasket, cylinder head, RH
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
Insert, valve seat, intake
New / New
Diagram No:
-
Quantity:
12
Available to order (2-3 days delay)
Cylinder head assembly, LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
RETAINER, VALVE SPRING
New / New
Diagram No:
-
Quantity:
24
Available to order (2-3 days delay)
Bushing, valve guide
New / New
Diagram No:
-
Quantity:
24
Available to order (2-3 days delay)
Cap, camshaft bearing
New / New
Diagram No:
2
Quantity:
12
Available to order (2-3 days delay)
Cylinder head, RH - to service level
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Spring, valve
New / New
Diagram No:
-
Quantity:
24
Available to order (2-3 days delay)
Stud, M8x13 + M8x24.7
New / New
Diagram No:
-
Quantity:
12
Available to order (2-3 days delay)
Insert, valve seat, exhaust
New / New
Diagram No:
-
Quantity:
12
Available to order (2-3 days delay)
Cap, camshaft bearing, front
New / New
Diagram No:
3
Quantity:
2
Available to order (2-3 days delay)
Gasket, cylinder head, LH
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
COLLET, VALVE SPRING
New / New
Diagram No:
-
Quantity:
48
Available to order (2-3 days delay)
Valve, inlet
New / New
Diagram No:
-
Quantity:
12
Available to order (2-3 days delay)
Plug, 3/8â - 18 socket head
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Switch assy, oil pressure sensor
New / New
Diagram No:
54
Quantity:
1
Available to order (2-3 days delay)
Dowel, 10x49.25
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Plug, 3/4-14 PTF, Internal Hex
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
