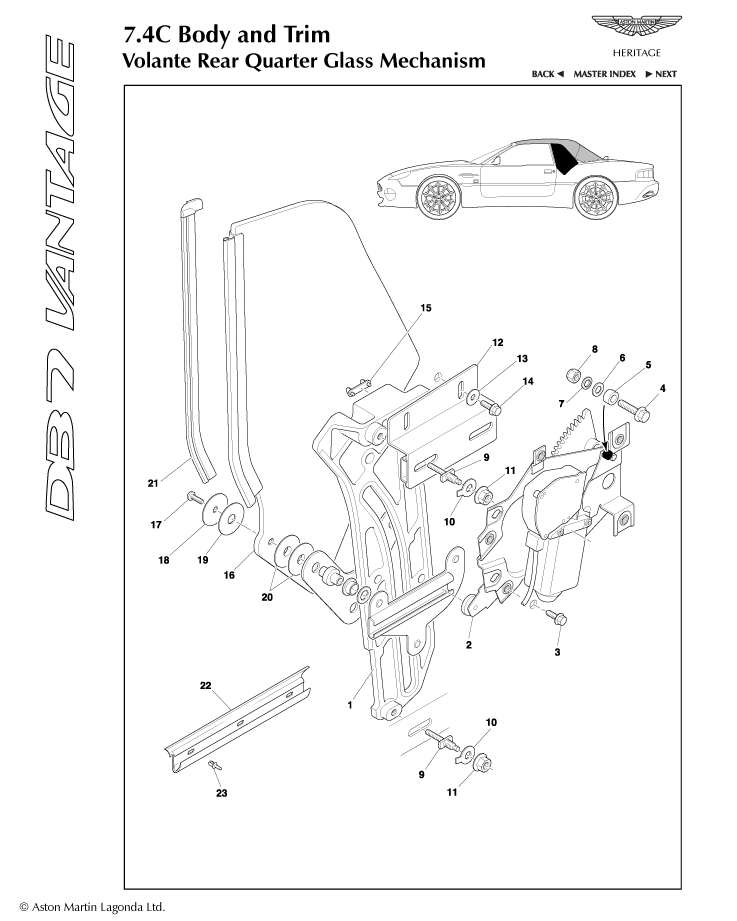

7.4c - Volante Rear Quarter Glass & Mechanism Parts
Screw, flg, M6 x 16, lower fixing rear
New / New
Diagram No:
3
Quantity:
4
Available to order (2-3 days delay)
Setscrew, M6 x 20
New / New
Diagram No:
4
Quantity:
4
Available to order (2-3 days delay)
Nut, hex, M6, cup retainer to bracket
New / New
Diagram No:
8
Quantity:
8
Available to order (2-3 days delay)
Washer, shakeproof, M6
New / New
Diagram No:
7
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, M6, interlock cable to steering column
New
Available to order (2-3 days delay)
Spacer, glass
New / New
Diagram No:
20
Quantity:
6
Available to order (2-3 days delay)
Regulator, rear quarter glass - RH
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Washer, rubber - glass retaining
New / New
Diagram No:
19
Quantity:
6
Available to order (2-3 days delay)
Glass Support
New / New
Diagram No:
15
Quantity:
2
Available to order (2-3 days delay)
Bracket Assembly, Upper Quarter Light Guide LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Regulator, rear quarter glass - LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket Assembly, Upper Quarter Light Guide RH
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Retainer, seal rear quarter RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Retainer, seal rear quarter LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spacer, dash
New / New
Diagram No:
5
Quantity:
2
Available to order (2-3 days delay)
Rivet, waistrail outer
New / New
Diagram No:
23
Quantity:
6
Available to order (2-3 days delay)
Seal, outer rear quarter LH
New / New
In stock
Seal, inner, rear quarter glass
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
REAR QUARTER GLASS SEAL RIGHT HAND
New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Seal, outer rear quarter RH
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
REAR QUARTER GLASS SEAL LEFT HAND
New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Seal, rear quarter glass - LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Rear quarter - glass assembly, complete - LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Glass, rear quarter - RH
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Rear quarter - glass assembly, complete - RH
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Glass, rear quarter - LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Glass, rear quarter - RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Seal, rear quarter glass - RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Glass, rear quarter - LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Screw, glass retaining
New / New
Diagram No:
17
Quantity:
6
Available to order (2-3 days delay)
Washer, glass retaining
New / New
Diagram No:
18
Quantity:
6
Available to order (2-3 days delay)
Screw, adjustment
New / New
Diagram No:
9
Quantity:
6
Available to order (2-3 days delay)
Screw, M6x12
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Tab washer - glass adjustment screw
New / New
Diagram No:
10
Quantity:
6
Available to order (2-3 days delay)
Nut, hex flg M8
New / New
Diagram No:
11
Quantity:
12
Available to order (2-3 days delay)
