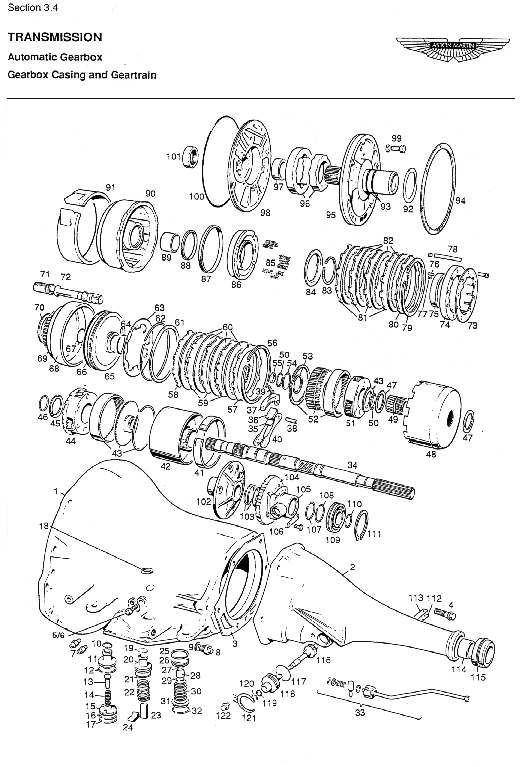

3.4 - Gearbox Casing & Geartrain Parts
Inspection cover - RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Snap ring, 0.088"
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Inspection cover - LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Snap ring, 0.106"
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Snap ring, 0.074"
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Spacer, rear clutch, piston spring
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Reaction shaft
New / New
Diagram No:
95
Quantity:
1
Available to order (2-3 days delay)
Snap ring, 0.062"
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Snap ring, 0.060"
New / New
Diagram No:
62
Quantity:
A/R
Available to order (2-3 days delay)
Carrier assembly, front
New / New
Diagram No:
51
Quantity:
1
Available to order (2-3 days delay)
Housing
New / New
Diagram No:
98
Quantity:
1
Available to order (2-3 days delay)
Snap ring, 0.055"
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
'E' ring
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Snap ring, 0.048"
New / New
Diagram No:
50
Quantity:
A/R
Available to order (2-3 days delay)
Automatic transmsission assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Retainer, rear clutch, piston
New / New
Diagram No:
69
Quantity:
1
Available to order (2-3 days delay)
Plug vent shield
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Special dowel, 1 1/2", gearbox to cylinder block
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Automatic transmsission assembly
New / New
Available to order (2-3 days delay)
Gearbox cover assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Disc, rear clutch
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Thrust washer, red, 0.084"
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Bush
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Shield, front pump housing
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Ring, input shaft
New / New
Diagram No:
72
Quantity:
2
Available to order (2-3 days delay)
Washer
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Gearbox cover, glass fibre
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Ring
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Large ball, 11/32"
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pinion
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
Carrier assembly, rear
New / New
Diagram No:
44
Quantity:
1
Available to order (2-3 days delay)
Shaft
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
Thrust washer, green, 0.061"
New / New
Diagram No:
70
Quantity:
A/R
Available to order (2-3 days delay)
Drive pinion, speedometer, 34 teeth, green
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Ball check valve
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Retainer
New / New
Diagram No:
84
Quantity:
1
Available to order (2-3 days delay)
Spring, rear clutch, 5 11/32" O.D.
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Screw, inspection cover
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Gasket
New / New
Diagram No:
113
Quantity:
1
Available to order (2-3 days delay)
Seal, rear clutch piston, outer
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Sealing ringt
New / New
Diagram No:
93
Quantity:
2
Available to order (2-3 days delay)
Roller
New / New
Diagram No:
-
Quantity:
92
Available to order (2-3 days delay)
Ball, rear clutch check valve
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Thrust washer, yellow, 0.106"
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Screw and washer
New / New
Diagram No:
122
Quantity:
1
Available to order (2-3 days delay)
Rubber strip, 1/4" x 1 1/2"
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc, 7/16" UNF, gearbox to cylinder block
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Hank bush, 1/4" UNF
New / New
Diagram No:
-
Quantity:
20
Available to order (2-3 days delay)
Screw, 1/4" UNF x 3/4" long, pan head
New / New
Diagram No:
-
Quantity:
20
Available to order (2-3 days delay)
Bolt 7/16" UNC x 2 3/4", gearbox to cylinder block
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
