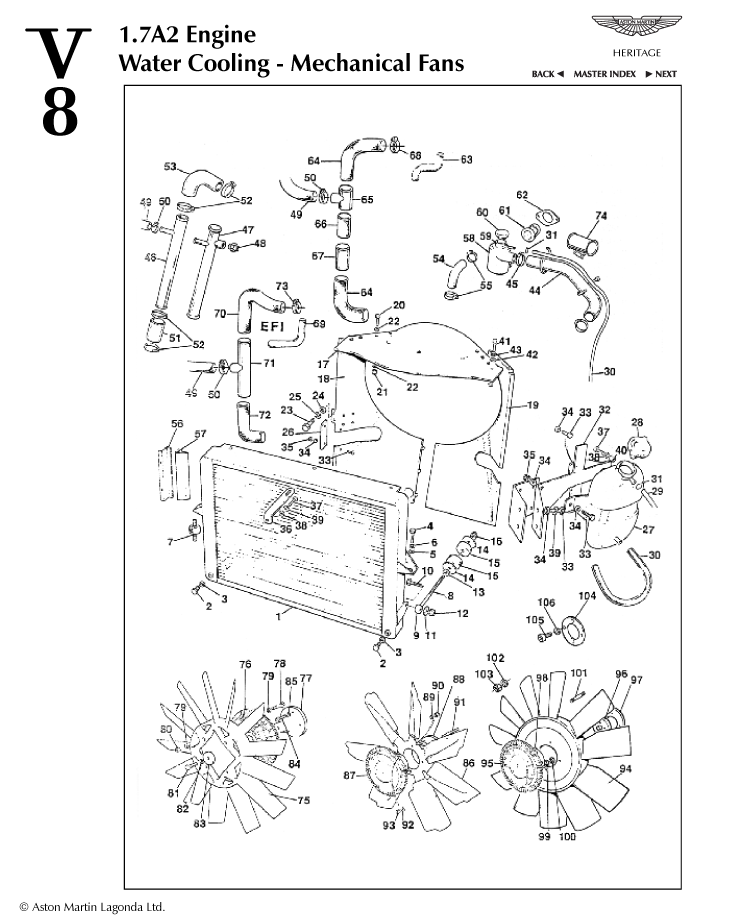

1.7a2 - Water Cooling, Mechanical Fans Parts
Stud, 5/16" UNF x 2.8" (71mm) long
New / New
Diagram No:
101
Quantity:
4
Available to order (2-3 days delay)
'Loctite'
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Grommet
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Nut, retainer, M8
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Seal, switch to tube
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Seal, front stoneguard, 1300 mm long
New / New
In stock
Nut, M8, assembly to boot floor
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Washer, plain, M8, assembly to boot floor
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Fan assembly, 7-bladed, metal
New / New
Diagram No:
86
Quantity:
1
Available to order (2-3 days delay)
Spacer pulley
New / New
Diagram No:
77
Quantity:
1
Available to order (2-3 days delay)
Fan drive
New / New
Diagram No:
87
Quantity:
1
Available to order (2-3 days delay)
Fan, 13-bladed, plastic
New / New
Diagram No:
75
Quantity:
1
Available to order (2-3 days delay)
Washer, special
New / New
Diagram No:
83
Quantity:
1
Available to order (2-3 days delay)
Fan cowl, lower half, RH
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Tube, bottom of radiator to water pump
New / New
Diagram No:
46
Quantity:
1
Available to order (2-3 days delay)
THERMOSTAT, 74 degrees
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Filler neck assembly
New / New
Diagram No:
59
Quantity:
1
Available to order (2-3 days delay)
Thermostat, 82C
New
Diagram No:
61
Quantity:
1
Available to order (2-3 days delay)
Cap, header tank
New / New
Diagram No:
60
Quantity:
1
Available to order (2-3 days delay)
Coupling, fan drive
New / New
Diagram No:
76
Quantity:
1
Available to order (2-3 days delay)
Fan cowl, lower half, LH
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Header tank assembly
New / New
Diagram No:
58
Quantity:
1
Available to order (2-3 days delay)
Bracket, expansion tank
New / New
Diagram No:
32
Quantity:
1
Available to order (2-3 days delay)
Hose, tube to water pump
New / New
Diagram No:
53
Quantity:
1
Available to order (2-3 days delay)
Steady bracket, fan cowl
New / New
Diagram No:
36
Quantity:
1
Available to order (2-3 days delay)
Plate, radiator sealing - LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Tube, header tank to expansion tank
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Plate, radiator sealing - RH
New / New
Diagram No:
56
Quantity:
1
Available to order (2-3 days delay)
Cap, expansion tank
New / New
Diagram No:
28
Quantity:
1
Available to order (2-3 days delay)
Fan spacer/air pump belt drive 3" (76mm) dia.
New / New
Diagram No:
88
Quantity:
1
Available to order (2-3 days delay)
Fan cowl, top
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Gasket
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Top water hose
New / New
Diagram No:
44
Quantity:
1
Available to order (2-3 days delay)
Radiator assembly
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Blanking plate
New / New
Diagram No:
26
Quantity:
2
Available to order (2-3 days delay)
Sealing ring
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Gasket
New / New
Diagram No:
62
Quantity:
1
Available to order (2-3 days delay)
Hose, bottom radiator
New / New
Diagram No:
51
Quantity:
1
Available to order (2-3 days delay)
Stud, 5/16" UNF/UNC x 3.25" (83mm) long
New / New
Diagram No:
91
Quantity:
4
Available to order (2-3 days delay)
Loctite, "plastic gasket"
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Clamp
New / New
Diagram No:
31
Quantity:
3
Available to order (2-3 days delay)
Clip, 1 3/4"x2 1/4", heatshield fixing
New / New
Diagram No:
68
Quantity:
6
Available to order (2-3 days delay)
Hose, interconnecting, heater return, 130 mm
New / New
Diagram No:
49
Quantity:
A/R
Available to order (2-3 days delay)
Screw 10-24 UNC x 1/2" long
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Hose clip, 35mm - 50mm
New / New
Diagram No:
45
Quantity:
2
Available to order (2-3 days delay)
Plug, brass, 1/8" BSP
New / New
Diagram No:
2
Quantity:
2
Available to order (2-3 days delay)
Setbolt - 2BA x 1/2"
New / New
Diagram No:
20
Quantity:
9
Available to order (2-3 days delay)
Nut, Nyloc - 2BA - thin
New / New
Diagram No:
21
Quantity:
9
Available to order (2-3 days delay)
Clip, jubilee, support elbow to expansion tank
New / New
Diagram No:
50
Quantity:
2
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNF x 1 1/4" Engine mounting
New / New
Diagram No:
98
Quantity:
4
Available to order (2-3 days delay)
