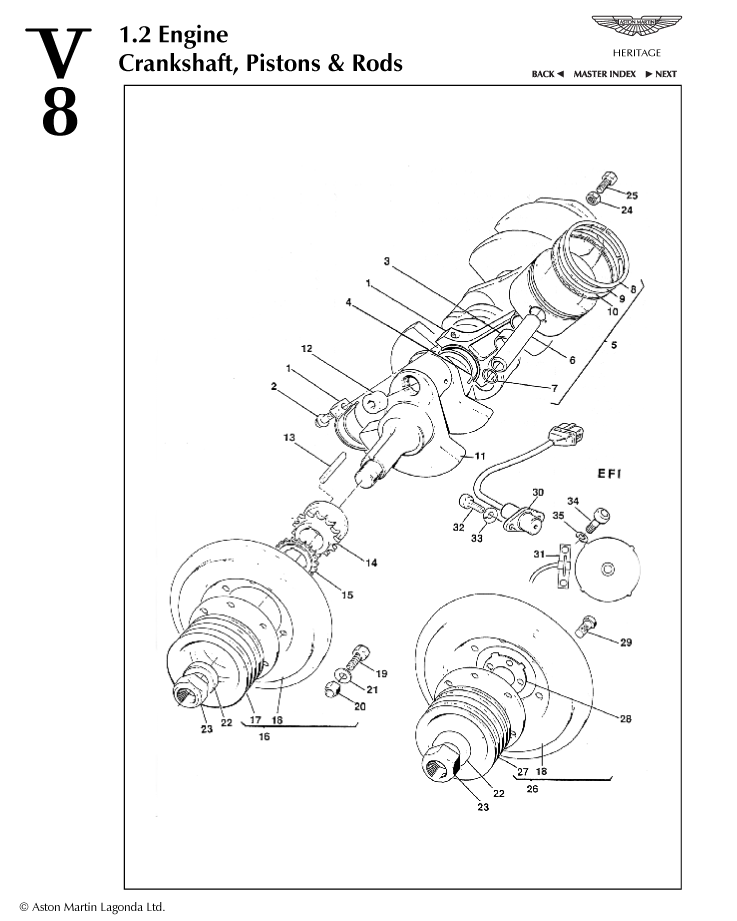

1.2 - Crankshaft, Pistons & Rods Parts
Sensor, crankshaft RPM
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Screw, socket-head, M5 x 10
New / New
Diagram No:
32
Quantity:
2
Available to order (2-3 days delay)
Loctite 270 studlock, red
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Circlip
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Washer, spring, M5 boot latch, plate & sw bracket to chassis
New / New
Diagram No:
33
Quantity:
2
Available to order (2-3 days delay)
Piston assembly, grade A or B, 8.3:1 compression ratio, with rings
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Crankshaft pulley and torsional vibration damper assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Crankshaft pulley
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Piston assembly, grade A or B with rings
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Bolt, Durloc 3/8" UNF, drive plate/adaptor/crankshaft
New / New
Diagram No:
25
Quantity:
8
Available to order (2-3 days delay)
Gudgeon pin
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Crankshaft, 0.020" undersize
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Gudgeon pin
New / New
Diagram No:
6
Quantity:
8
Available to order (2-3 days delay)
Connecting rod bolt
New / New
Diagram No:
2
Quantity:
16
Available to order (2-3 days delay)
Nut, special, crankshaft
New / New
Diagram No:
23
Quantity:
1
Available to order (2-3 days delay)
Piston assembly, grade A or B with rings
New / New
Diagram No:
5
Quantity:
8
Available to order (2-3 days delay)
Crankshaft, 0.010" undersize
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Connecting Rod Assembly
New / New
Diagram No:
1
Quantity:
8
Available to order (2-3 days delay)
Washer, special, crankshaft
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Crankshaft, standard size
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Sprocket, timing
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Compression ring, top
New / New
Diagram No:
8
Quantity:
8
Available to order (2-3 days delay)
Plug, crankshaft
New / New
Diagram No:
12
Quantity:
4
Available to order (2-3 days delay)
Key, crankshaft
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Hylomar 800B PH32M
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Loctite 290, spindle to impeller
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Socket setscrew, 1/4" UNC x 1/2"
New / New
Diagram No:
34
Quantity:
2
Available to order (2-3 days delay)
Special bolt, torsional vibration damper
New / New
Diagram No:
19
Quantity:
6
Available to order (2-3 days delay)
Torsional vibration damper
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Dowel nut, crankshaft to flywheel
New / New
Diagram No:
24
Quantity:
3
Available to order (2-3 days delay)
Circlip
New / New
Diagram No:
7
Quantity:
16
Available to order (2-3 days delay)
Sprocket, oil pump
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Small end bush
New / New
Diagram No:
3
Quantity:
8
Available to order (2-3 days delay)
Piston assembly, grade A or B, 9.3:1 compression ratio, with rings
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Circlip
New / New
Diagram No:
-
Quantity:
16
Available to order (2-3 days delay)
Sensor bracket
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Crankshaft, 0.020" undersize
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Oil control ring
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Piston assembly, grade A or B, 8.0:1 compression ratio, with rings
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Piston assembly, grade A or B, 8.0:1 compression ratio, with rings
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Gudgeon pin
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Compression ring, lower
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Crankshaft pulley
New / New
Diagram No:
27
Quantity:
1
Available to order (2-3 days delay)
Plug, crankshaft, push-in type
New / New
Diagram No:
-
Quantity:
4
Available to order (2-3 days delay)
Compression ring, top
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Crankshaft, 0.010" undersize
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Compression ring, lower
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
Big end bearing shell, half, standard size
New / New
Diagram No:
4
Quantity:
16
Available to order (2-3 days delay)
Compression ring, lower
New / New
Diagram No:
9
Quantity:
8
Available to order (2-3 days delay)
Piston assembly, grade A or B, 9.3:1 compression ratio, with rings
New / New
Diagram No:
-
Quantity:
8
Available to order (2-3 days delay)
