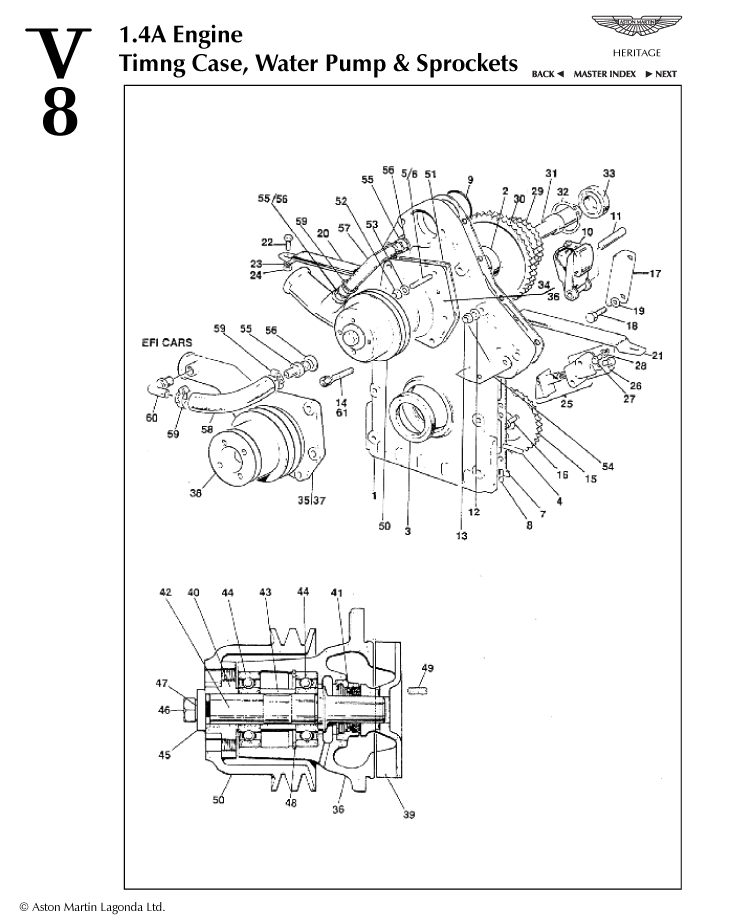

1.4a - Timing Case, Water Pump & Sprockets Parts
Setscrew, Durloc, M6 x 16
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Capscrew, 5/16" UNC x l 1/4" drive pulley attach
New / New
Diagram No:
61
Quantity:
1
Available to order (2-3 days delay)
Screw, Durlock, 1/4" UNC x 5/8" long
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Tensioner, primary chain
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Sprocket Assembly, intermediate
New / New
Diagram No:
29
Quantity:
1
Available to order (2-3 days delay)
Washer
New / New
Diagram No:
45
Quantity:
1
Available to order (2-3 days delay)
Spindle
New / New
Diagram No:
42
Quantity:
1
Available to order (2-3 days delay)
Timing pointer
New / New
Diagram No:
54
Quantity:
1
Available to order (2-3 days delay)
Joint - water pump to timing case
New / New
Diagram No:
51
Quantity:
1
Available to order (2-3 days delay)
Water seal
New / New
Diagram No:
41
Quantity:
1
Available to order (2-3 days delay)
Housing
New / New
Diagram No:
36
Quantity:
1
Available to order (2-3 days delay)
Impeller
New / New
Diagram No:
39
Quantity:
1
Available to order (2-3 days delay)
Boss, pulley/water pump
New / New
Diagram No:
40
Quantity:
1
Available to order (2-3 days delay)
Rubbing strip, primary chain
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Rubbing strip, timing chain, LH
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Mounting bracket, chain tensioner
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
Sprocket, oil pump
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Joint, timing case to cylinder block
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Front timing case assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Front timing case
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Rubbing strip, timing chain, RH
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Hose adaptor for use with later water valve
New / New
Diagram No:
55
Quantity:
2
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNF x 2.38" long
New / New
Diagram No:
6
Quantity:
5
Available to order (2-3 days delay)
Self-aligning bearing
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
Tension pin, 1/4" x 1 3/8" long
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Copper washer, 3/8"
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Loctite 290, spindle to impeller
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Grubscrew, 2BA x 1/4" socket head
New / New
Diagram No:
49
Quantity:
1
Available to order (2-3 days delay)
Bearing, intermediate spindle
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Setscrew, 1/4" UNF x 5/16" long
New / New
Diagram No:
16
Quantity:
3
Available to order (2-3 days delay)
Stud, 1/4" UNC/UNF x 2" long
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNF x 1.625", water pump
New / New
Diagram No:
5
Quantity:
5
Available to order (2-3 days delay)
"O" Ring
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Copper Washer - banjo
New / New
Diagram No:
56
Quantity:
2
Available to order (2-3 days delay)
Socket setscrew, 5/16" UNC x 1 1/2"
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
Socket setscrew, 5/16" UNC x 7/8"
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Washer, spring, 3/8"
New / New
Diagram No:
47
Quantity:
1
Available to order (2-3 days delay)
Bolt, starter ring/flywheel/clutch
New / New
Diagram No:
46
Quantity:
1
Available to order (2-3 days delay)
Setscrew, 5/16" UNF x 1 1/2" long
New / New
Diagram No:
22
Quantity:
2
Available to order (2-3 days delay)
Setscrew, 1/4" UNC x 3/4" Breather attachment
New / New
Diagram No:
27
Quantity:
2
Available to order (2-3 days delay)
Setscrew, 1/4" UNC x 5/8", base to valley plate
New / New
Diagram No:
18
Quantity:
2
Available to order (2-3 days delay)
Water pump assembly, with pulley
New / New
Diagram No:
35
Quantity:
1
Available to order (2-3 days delay)
Housing
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pulley, water pump
New / New
Diagram No:
38
Quantity:
1
Available to order (2-3 days delay)
Water pump assembly, without pulley
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Fan pulley
New / New
Diagram No:
50
Quantity:
1
Available to order (2-3 days delay)
Water pump assembly, without pulley
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hose, by-pass
New / New
Diagram No:
58
Quantity:
1
Available to order (2-3 days delay)
Elbow, 90
New / New
Diagram No:
60
Quantity:
1
Available to order (2-3 days delay)
Housing
New / New
Diagram No:
37
Quantity:
1
Available to order (2-3 days delay)
