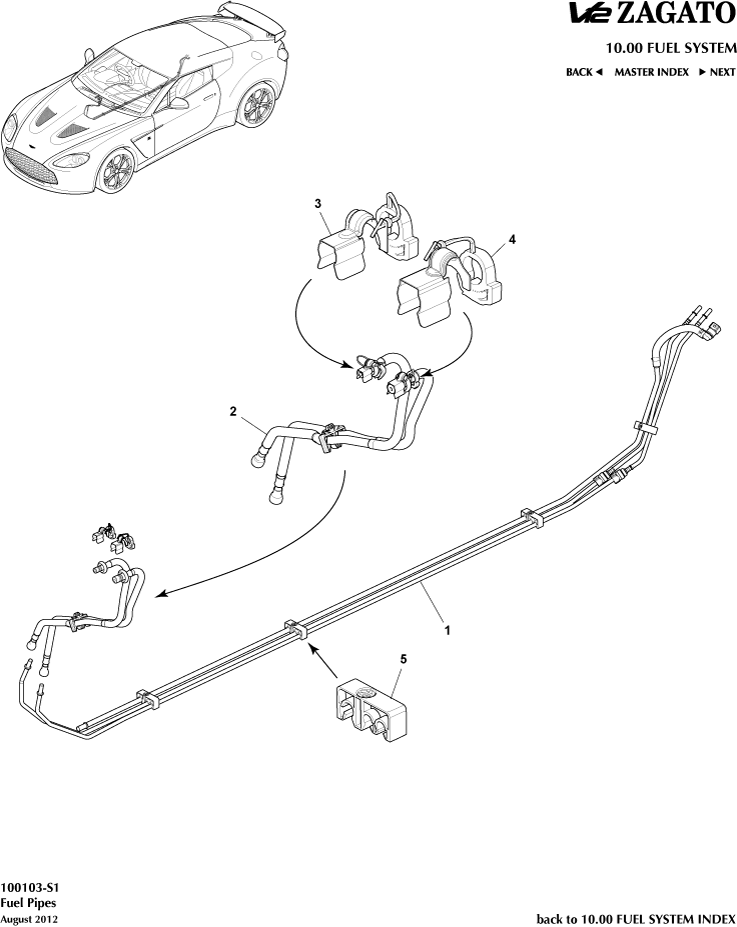

Fuel Pipes Parts
Pipe Assembly, Fuel Rail Inlet
New / New
Diagram No:
2
Available to order (2-3 days delay)
Clip & Clamp, 12.5 x 15mm
New / New
Diagram No:
4
Available to order (2-3 days delay)
Clip and clamp, fuel rail inlet
New / New
Diagram No:
3
Available to order (2-3 days delay)
Pipe assy, fuel supply & vapour
New / New
Diagram No:
1
Available to order (2-3 days delay)
Clip, fuel line to engine
New / New
Diagram No:
5
Available to order (2-3 days delay)
