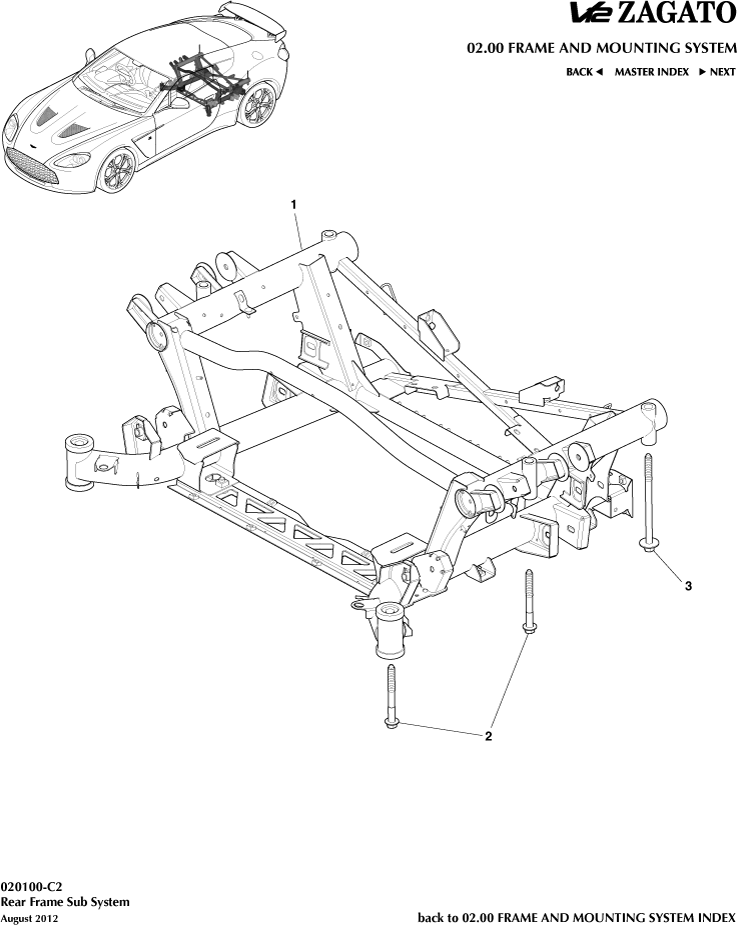

Rear Subframe Parts
Bolt, M14 x 128.5, Flanged Hex Head
New / New
Diagram No:
2
Available to order (2-3 days delay)
Bolt, M14 x 200mm, Hex Flange Hd
New / New
Diagram No:
3
Available to order (2-3 days delay)
Subframe Assembly, Rear
New / New
Diagram No:
1
Available to order (2-3 days delay)
